Запчасти Case IH MAXXUM 140 (1.21.3/01[03]) - (CL.4) SUSPENDED FRONT AXLE W/MULTI-PLATE DIFF. LOCK - CYLINDER SUSPENSION (VAR.330429-330430) (03) - TRANSMISSION

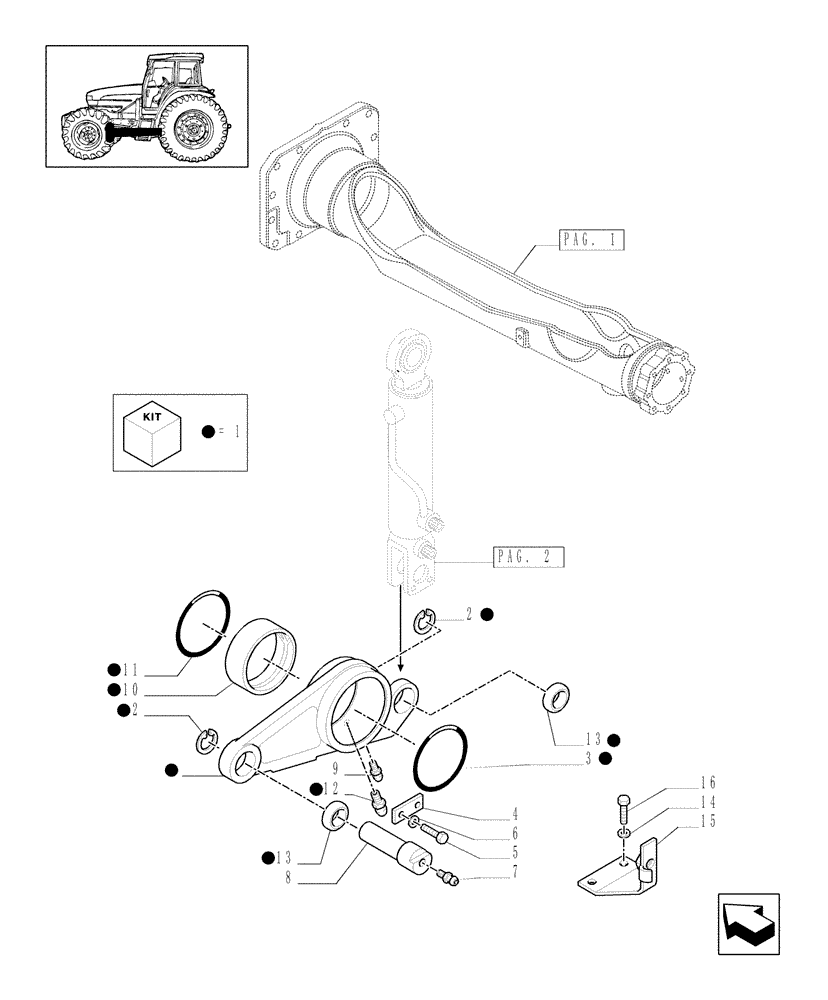

Схема запчастей Case IH MAXXUM 140 - (1.21.3/01[03]) - (CL.4) SUSPENDED FRONT AXLE W/MULTI-PLATE DIFF. LOCK - CYLINDER SUSPENSION (VAR.330429-330430) (03) - TRANSMISSION
4
6
1
1
16
1
13
1
12
15
1
1
14
pag. 1
pag. 2
9
8
10
5
1
11
2
13
2
3
1
7
1
1

Артикул

Название

Примечание

Количество

1

87383938

ROD ASSY.

1шт.

2

11061076

SNAP RING,M62, Int

2шт.

3

14483280

O-RING,8.225" ID x 0.210"

1шт.

4

82016870

BRACKET

1шт.

5

83962654

SCREW,Hex, M10 x 1.5 x 20mm, Gr 8.8

2шт.

6

85700672

LOCK WASHER,M10

2шт.

7

13406911

LUBE NIPPLE,Straight, 1/4"-28 x 0.54"

1шт.

8

87305641

PIN,44mm OD x 136mm L

1шт.

9

13411117

VALVE PRESSURE RELIE,M10, Black

1шт.

10

82020450

BUSHING,200mm ID x 205mm OD x 60mm L

1шт.

11

14483180

O-RING,0.21" Thk x 7.975" ID, -369, Cl 5, 75 Duro

1шт.

12

13407211

LUBE NIPPLE,M10 x 1

1шт.

13

82016695

SPHERICAL BEARING,60mm ID x 62mm OD x 35mm W

2шт.

14

83963081

LOCK WASHER,Serr, 8.20mm ID x 14mm OD

2шт.

15

82033192

BRACKET

1шт.

16

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

Выбрано товаров: 16
