Запчасти Case IH MAXXUM 140 (1.21.2/01[02]) - (CL.4) SUSPENDED FRONT AXLE W/MULTI-PLATE DIFF. LOCK - PIPES - C6385 (VAR.330429-330430) (03) - TRANSMISSION

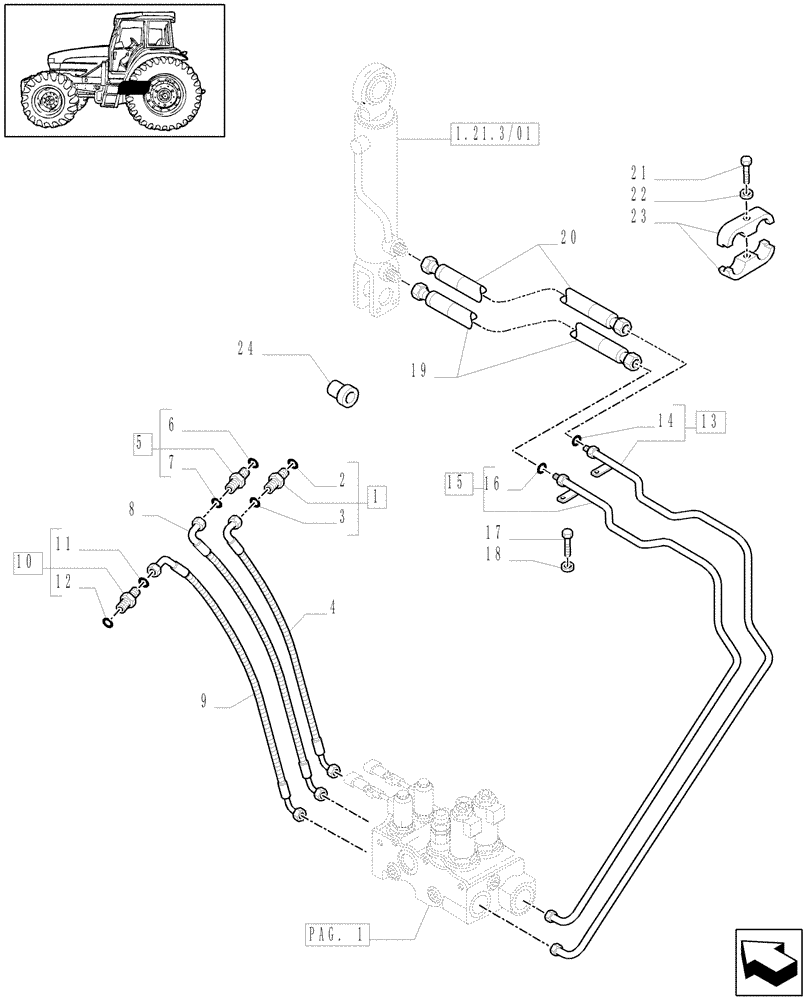

Схема запчастей Case IH MAXXUM 140 - (1.21.2/01[02]) - (CL.4) SUSPENDED FRONT AXLE W/MULTI-PLATE DIFF. LOCK - PIPES - C6385 (VAR.330429-330430) (03) - TRANSMISSION
22
24
16
14
8
17
15
3
4
6
5
11
2
1
10
7
9
19
23
21
13
12
18
20
pag. 1
1.21.3/01

Артикул

Название

Примечание

Количество

1

82016497

HYD CONNECTOR,13/16"-16 ORFS x M22 x 1.5

1шт.

2

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

19.6 x 24.3 x 1.5

1шт.

3

81845038

O-RING,0.5" ID x 0.07" Thk

1шт.

4

87368096

FLEXIBLE HOSE

600MM, 13/16-16

1шт.

5

47126401

HYD CONNECTOR

11/16'-16, M22x1.5

1шт.

6

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

7

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

8

47132835

FLEXIBLE HOSE

1100MM, 11/16"-16

1шт.

9

47135604

FLEXIBLE HOSE

MM.600, 9/16-18

1шт.

10

5185045

HYD CONNECTOR

9/16"-18, M18x1.5

1шт.

11

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

1шт.

12

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

13

47133288

HYD TUBE

1-3/16"-12

1шт.

14

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

1шт.

15

47133285

HYD TUBE

1"-14, 13/16"-16

1шт.

16

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

M12.42 ID x 1.78 Thk

1шт.

17

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

18

83931520

WASHER,8.4mm ID x 17mm OD x 2mm Thk

1шт.

19

87618806

FLEXIBLE HOSE,19.10mm ID x 1295mm L, SAE 100R16

1-13/16"x12//1-13/16"x12, Raise

1шт.

20

87618803

HOSE ASSY.

1"-14//13/16"-16, Lower

1шт.

21

11107621

BOLT,Hex, M10 x 70mm, Cl 8.8

2шт.

22

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

23

82022172

CLAMP,2 Hoses

2шт.

24

82035752

PLASTIC PLUG,7.00mm, 11.00mm OD, 5.5mm D

4шт.

Выбрано товаров: 24
