Запчасти Case IH MAXXUM 140 (1.21.1/04) - (CL.4) SUSPENDED FRONT AXLE W/MULTI-PLATE DIFF. LOCK - SUPPORT FOR FRONT AXLE (03) - TRANSMISSION

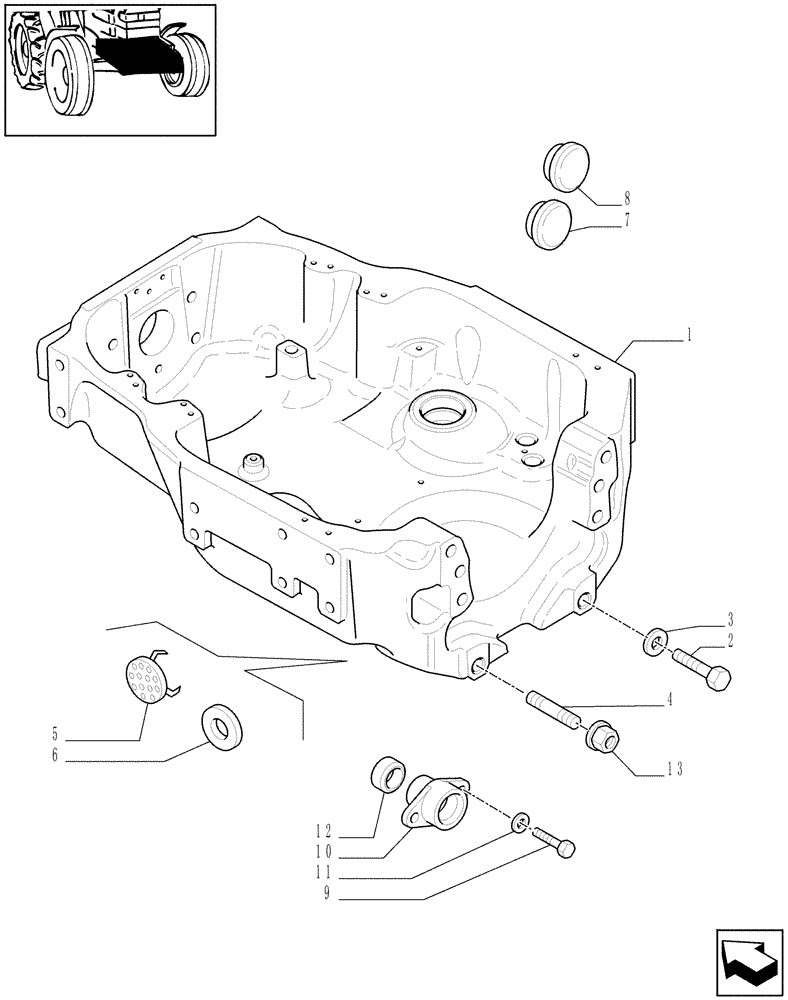

Схема запчастей Case IH MAXXUM 140 - (1.21.1/04) - (CL.4) SUSPENDED FRONT AXLE W/MULTI-PLATE DIFF. LOCK - SUPPORT FOR FRONT AXLE (03) - TRANSMISSION
6
7
13
9
5
11
1
3
8
4
2
12
10

Артикул

Название

Примечание

Количество

1

87618801

BOLSTER

, Serial Range: -C6412

1шт.

1

84380303

BOLSTER

, Start Serial: D6412

1шт.

2

82028028

BOLT,Hex, M20 x 1.5 x 118mm, Cl 12.9

M20x1.5x118

3шт.

3

82028022

WASHER,M8 x 1.25 ID x 40mm OD x 9mm Thk, CRLC or HRLC Steel

3шт.

4

87333612

STUD,M20 x 1.5 x 295mm, Cl 12.9

M20x1.5x295

3шт.

4

87333613

STUD,M20 x 1.5 x 240mm L

M20x1.5x240

2шт.

5

82021866

GRILLE

1шт.

6

82026240

SHIM,20.2mm ID x 50mm OD x 4.5mm Thk

1шт.

6

82026241

SHIM,20.2mm ID x 50mm OD x 4.8mm Thk

1шт.

6

82026242

SHIM,20.2mm ID x 50mm OD x 5.1mm Thk

1шт.

6

82026243

SHIM,20.2mm ID x 50mm OD x 5.4mm Thk

1шт.

6

82026244

SHIM,20.2mm ID x 50mm OD x 5.7mm Thk

1шт.

6

82026245

SHIM,20.2mm ID x 50mm OD x 6mm Thk

1шт.

6

82026246

SHIM,20.2mm ID x 50mm OD x 6.3mm Thk

1шт.

6

82026247

SHIM,20.2mm ID x 50mm OD x 6.6mm Thk

1шт.

6

82026248

SHIM,20.2mm ID x 50mm OD x 6.9mm Thk

1шт.

6

82026249

SHIM,20.2mm ID x 50mm OD x 4.5mm Thk

1шт.

6

82026250

SHIM,20mm ID x 50mm OD x 7.5mm Thk

1шт.

7

87305541

PLASTIC PLUG,26.00mm, 36.00mm OD, 16.00mm D

1шт.

8

82027992

PLUG,80.00mm, 90.00mm OD, 32.00mm D

1шт.

9

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

10

82030470

SUPPORT

1шт.

11

10516674

LOCK WASHER,M8

2шт.

12

82018767

SPACER,34mm ID x 44mm OD x 15.5mm L

2шт.

13

82023393

LOCK NUT

3шт.

Выбрано товаров: 25
