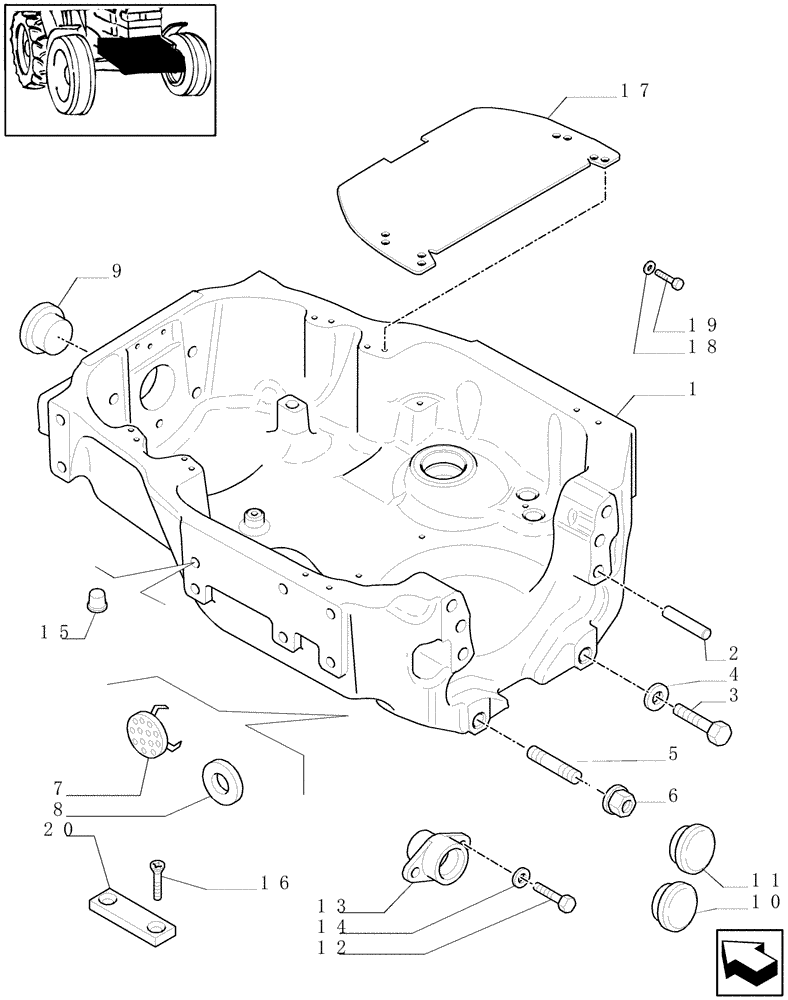

Запчасти Case IH MAXXUM 140 (1.21.1[01]) - 4WD SUPPORT FOR FRONT AXLE (03) - TRANSMISSION

1

87556766

SUPPORT

Incl. 2

1шт.

1

87618801

BOLSTER

, Serial Range: -C6912

1шт.

4WD Suspended Axle, VAR.330414-330427 (X-Line/Limited and Multicontroller/Pro Version)

1шт.

1

84380303

BOLSTER

, Start Serial: D6912

1шт.

4WD Suspended Axle, VAR.330414-330427 (X-Line/Limited and Multicontroller/Pro Version)

1шт.

2

82035662

DOWEL,M20 x 52

2шт.

3

82029234

BOLT,Hex, M20 x 1.5 x 125mm, Cl 12.9

M20 x 1.5 x 118

4шт.

Qty.=4 for STD Equipment; Qty. =6 for CL.4 Front Axle W/Multiple Diff. Lock and Steering Sensor (VAR.330408)

1шт.

4

82028022

WASHER,M8 x 1.25 ID x 40mm OD x 9mm Thk, CRLC or HRLC Steel

2шт.

5

87301866

STUD,M20 x 1.5 x 170mm, Cl 10.9

M20 x 1.5 x 170

2шт.

5

87333613

STUD,M20 x 1.5 x 240mm L

M20 x 1.5 x 240

2шт.

4WD Suspended Axle, VAR.330414-330427 (X-Line/Limited and Multicontroller/Pro Version)

1шт.

5

87333612

STUD,M20 x 1.5 x 295mm, Cl 12.9

M20 x 1.5 x 295

3шт.

4WD Suspended Axle, VAR.330414-330427 (X-Line/Limited and Multicontroller/Pro Version)

1шт.

6

82023393

LOCK NUT

M20 x 1.5

4шт.

7

82021866

GRILLE

1шт.

8

82026240

SHIM,20.2mm ID x 50mm OD x 4.5mm Thk

1шт.

8

82026241

SHIM,20.2mm ID x 50mm OD x 4.8mm Thk

1шт.

8

82026242

SHIM,20.2mm ID x 50mm OD x 5.1mm Thk

1шт.

8

82026243

SHIM,20.2mm ID x 50mm OD x 5.4mm Thk

1шт.

8

82026244

SHIM,20.2mm ID x 50mm OD x 5.7mm Thk

1шт.

8

82026245

SHIM,20.2mm ID x 50mm OD x 6mm Thk

1шт.

8

82026246

SHIM,20.2mm ID x 50mm OD x 6.3mm Thk

1шт.

8

82026247

SHIM,20.2mm ID x 50mm OD x 6.6mm Thk

1шт.

8

82026248

SHIM,20.2mm ID x 50mm OD x 6.9mm Thk

1шт.

8

82026249

SHIM,20.2mm ID x 50mm OD x 4.5mm Thk

1шт.

8

82026250

SHIM,20mm ID x 50mm OD x 7.5mm Thk

1шт.

8

82026251

SHIM,20.2mm ID x 50mm OD x 7.8mm Thk

1шт.

9

82023398

PLUG

1шт.

10

87305541

PLASTIC PLUG,26.00mm, 36.00mm OD, 16.00mm D

2шт.

4WD Suspended Axle, VAR.330414-330427 (X-Line/Limited and Multicontroller/Pro Version)

1шт.

11

82027992

PLUG,80.00mm, 90.00mm OD, 32.00mm D

1шт.

12

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

4WD Suspended Axle, VAR.330414-330427 (X-Line/Limited and Multicontroller/Pro Version)

1шт.

13

82030470

SUPPORT

1шт.

4WD Suspended Axle, VAR.330414-330427 (X-Line/Limited and Multicontroller/Pro Version)

1шт.

14

10516674

LOCK WASHER,M8

2шт.

4WD Suspended Axle, VAR.330414-330427 (X-Line/Limited and Multicontroller/Pro Version)

1шт.

15

85700666

PLASTIC PLUG,17.14mm, 22.22mm OD, 12.70mm D

20MM

16шт.

16

82015433

HEX SOC SCREW,FLAT, M10 x 1.5 x 25mm, Cl 10.9

4шт.

with CL.4 Front Axle W/multiplates Diff. Lockand Steering Sensor, VAR.330408

1шт.

MAX115, MAX125, MAX140

1шт.

17

87649699

COVER

1шт.

18

17094714

LOCK WASHER,M6 x 13

2шт.

19

16050621

SCREW,Hex, M6 x 30mm, Cl 8.8, Full Thd

2шт.

20

87361847

SPACER,111mm L x 26mm W x 10mm Thk

2шт.
