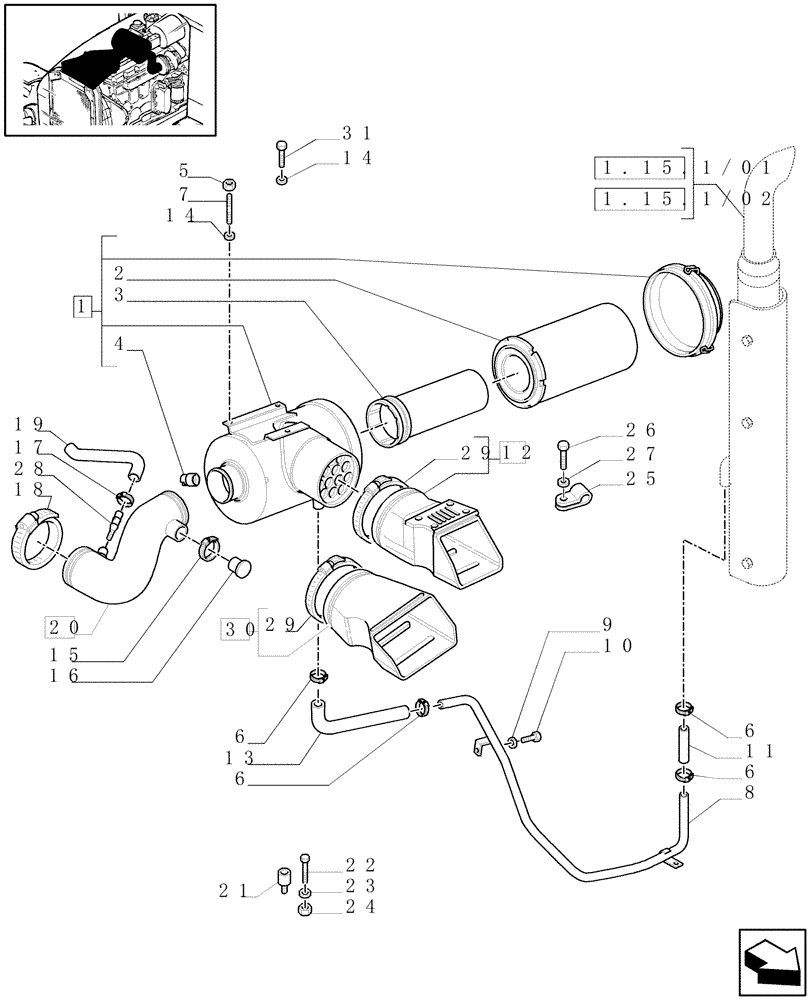

Запчасти Case IH MAXXUM 140 (1.19.1/01[02]) - AIR CLEANER WITH PRE-CLEANER "SPIN TUBE" (VAR.330189-331189-332189-333189) (02) - ENGINE EQUIPMENT

1

87585981

AIR CLEANER

ASSY

1шт.

2

82028977

AIR FILTER

1шт.

3

82028151

AIR FILTER

1шт.

4

82029621

INDICATOR

1шт.

5

11701711

NUT,Hex, M10, Cl 8, ZND

3шт.

6

82036709

HOSE CLAMP,25mm - 40mm, Worm Gear

4шт.

7

81870144

STUD,M10 x 32

3шт.

8

82039318

TUBE

1шт.

9

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

10

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

11

82036395

FLEXIBLE HOSE,33.00 mm ID x 140.00 mm

1шт.

12

87518694

DUCT

1шт.

Pro Version only

1шт.

13

87396929

LARGE HOSE

HOSE,LARGE

1шт.

14

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

3шт.

15

13387570

HOSE CLAMP

34MM

1шт.

16

82019459

PLUG,Polypropylene Air cleaner hose

1шт.

17

82039344

HOSE CLAMP,20mm - 32mm

20/32MM

1шт.

18

82036460

HOSE CLAMP,110mm - 130mm, Worm Gear

110 x 130 x 12

2шт.

Pro Version only

1шт.

18

87313773

CLAMP,100mm - 120mm, Worm Gear

100 x 120 x 12

2шт.

X-Line/Limited Version only (Value Version only for VAR.332189)

1шт.

19

87312773

FLEXIBLE HOSE,212.00 mm x 22.23 mm ID, 28.00 mm ID

1шт.

Pro Version only

1шт.

19

82033114

HOSE

1шт.

X-Line/Limited Version only (Value Version only for VAR.332189)

1шт.

20

87312771

CONDUIT

Incl. 15, 16, 28, Serial Range: -C6231

1шт.

20

84131841

CONDUIT

Incl. 15, 16, 28, Start Serial: D6231

1шт.

21

87344666

ISOLATOR

4шт.

22

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

4шт.

23

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

8шт.

24

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

4шт.

25

10450990

CLAMP,26mm, Coat, 9mm Bolt Hole, P Type

1шт.

26

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

1шт.

27

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

1шт.

28

82038172

PIPE

1шт.

29

82021427

CLAMP

1шт.

30

87326338

AIR DUCT

1шт.

X-Line/Limited Version only (Value Version only for VAR.332189)

1шт.

31

11106221

SCREW,Hex, M10 x 25mm, Cl 8.8, Full Thd

3шт.
