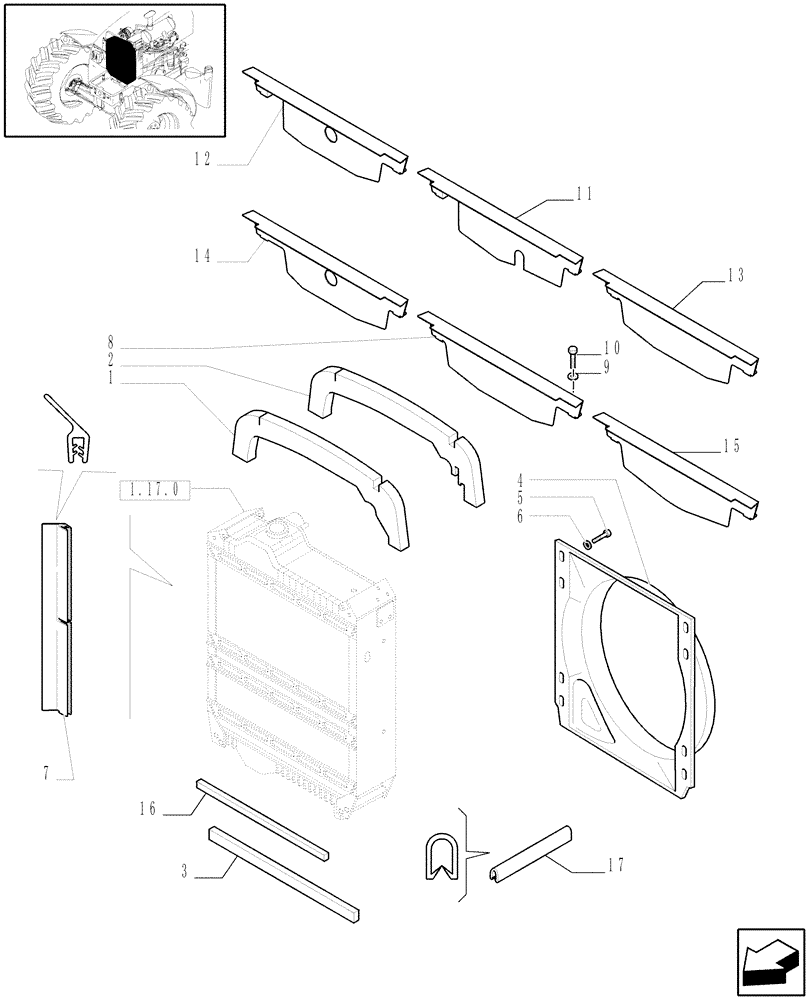

Запчасти Case IH MAXXUM 140 (1.17.5[01]) - RADIATOR DUCT AND SEALS - C5989 (02) - ENGINE EQUIPMENT

1

82031638

RUBBER SEAL,570mm L

2шт.

1

87580269

SEAL

197MM

1шт.

2

82033798

SEAL

W/CAB

1шт.

2

87521935

SEAL

1шт.

W/Electr. Engine

1шт.

3

82022052

SEAL,574mm x 30mm x 15mm

574MM, W/CAB

1шт.

Std Equipment for X-Line and Multicontroller Models; With VAR.330643 (Air Conditioning with ATC) for W/CAB Models

1шт.

3

87315613

SEAL,445mm x 20mm x10mm

445MM

1шт.

3

87315614

SEAL,545mm x 25mm x 10mm

545MM

1шт.

Std Equipment for Value, Limited and Pro Models

1шт.

4

87387899

SHROUD

1шт.

W/Mechanical Engine

1шт.

4

87387897

SHROUD

1шт.

W/Electr. Engine

1шт.

5

87377778

SCREW,Hex, M6 x 16mm, Cl 8.8

8шт.

6

81872184

WASHER,6.4mm ID x 17mm OD

8шт.

7

82033789

SEAL

1шт.

W/Mechanical Engine

1шт.

8

87549343

DEFLECTOR

1шт.

MAX100, MAX110, MAX115 Value and X-Line/Limited Versions

1шт.

9

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

2шт.

10

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

11

87549344

DEFLECTOR

1шт.

Less Front Linkage & PTO for Suspended Axle, VAR.336811 (MAX100, MAX110, MAX115 X-Line/Limited Versions)

1шт.

12

87547969

DEFLECTOR

1шт.

With Front HPL and PTO with 6 Spline , VAR.330813 (X-Line/Limited Version)

1шт.

13

87311843

PLATE

1шт.

MAX120, MAX125, MAX130, MAX140 + MAX100, MAX115 Multicontroller/Pro Version

1шт.

14

87311942

1шт.

With Front HPL and PTO with 6 Spline , VAR.330813 (Multicontroller/Pro Version)

1шт.

15

87312432

PLATE

1шт.

Less Front Linkage & PTO for Suspended Axle, VAR.336811 (Multicontroller/Pro Models + MAX125, MAX140 X-Line/Limited Version)

1шт.

16

87580269

SEAL

197MM

1шт.

17

82869674

MOLDING,88.5mm L

1шт.
