Запчасти Case IH MAXXUM 140 (1.17.2/01[01A]) - DEHYDRATING FILTER FOR AIR CONDITIONING - D6663 (02) - ENGINE EQUIPMENT

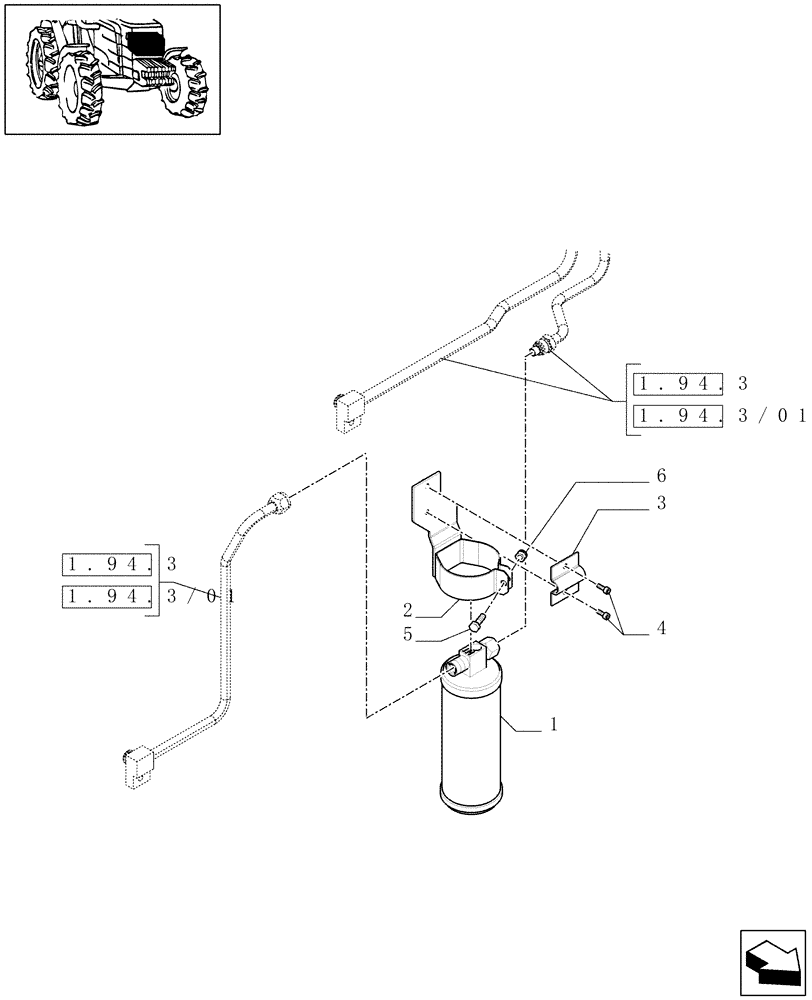

Схема запчастей Case IH MAXXUM 140 - (1.17.2/01[01A]) - DEHYDRATING FILTER FOR AIR CONDITIONING - D6663 (02) - ENGINE EQUIPMENT
2
1.94.3
1.94.3/01
1.94.3
1.94.3/01
3
1
4
6
5

Артикул

Название

Примечание

Количество

1

87343822

RECEIVER-DRYER

1шт.

2

87750158

BRACKET

1шт.

3

84233849

BRACKET

1шт.

4

14303021

SCREW,M4 x 12mm, Cl 8.8, Full Thd

2шт.

5

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

1шт.

6

12574211

NUT,M6 x 1, Cl 8

1шт.

Выбрано товаров: 6
