(1.17.2/01[01]) - CONDENSER AND DEHYDRATING FILTER FOR AIR CONDITIONING - C6663

Запчасти Case IH MAXXUM 140 (1.17.2/01[01]) - CONDENSER AND DEHYDRATING FILTER FOR AIR CONDITIONING - C6663 (02) - ENGINE EQUIPMENT

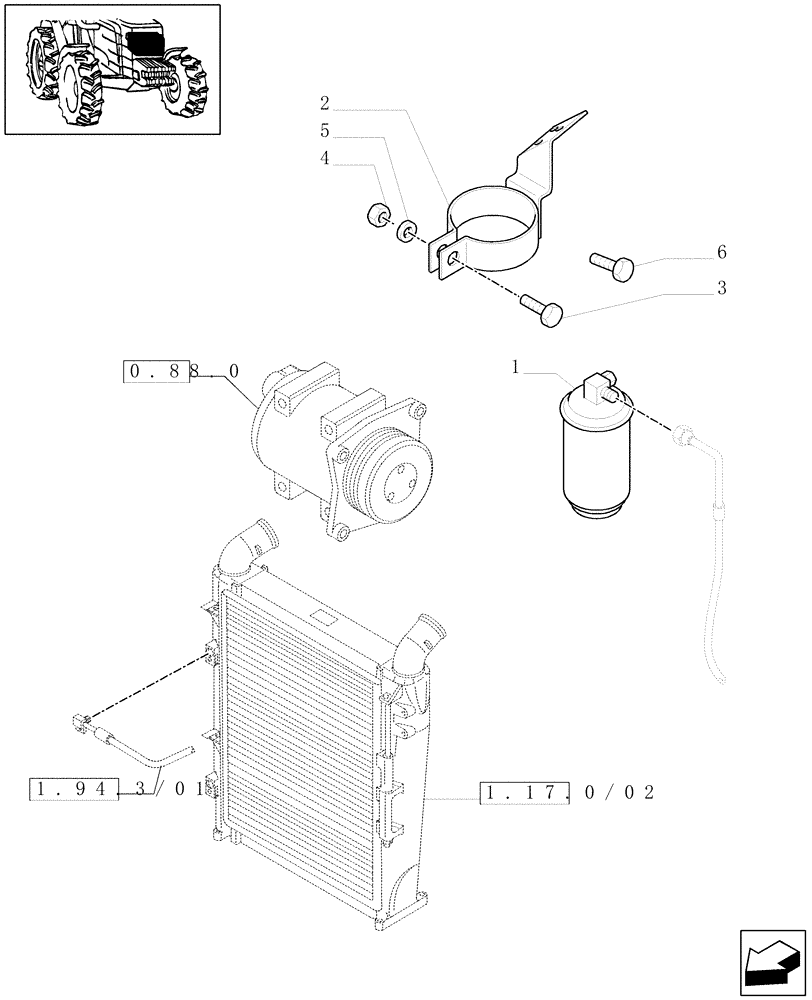

Схема запчастей Case IH MAXXUM 140 - (1.17.2/01[01]) - CONDENSER AND DEHYDRATING FILTER FOR AIR CONDITIONING - C6663 (02) - ENGINE EQUIPMENT
6
5
3
1.94.3/01
1.17.0/02
0.88.0
2
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87374420

RECEIVER-DRYER

1шт.

2

82027327

BRACKET

1шт.

3

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

1шт.

4

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

5

10516474

LOCK WASHER

1шт.

6

86511828

SCREW,Phillips Drive, Pan HD, M6 x 12mm, Cl 4.8

1шт.
