Запчасти Case IH MAXXUM 140 (1.15.1/01) - AIR CLEANER WITH PRE-CLEANER "SPIN TUBE" FOR ROOF WITH LOW PROFILE - SILENCER (MUFFLER) (VAR.332189-333189) (02) - ENGINE EQUIPMENT

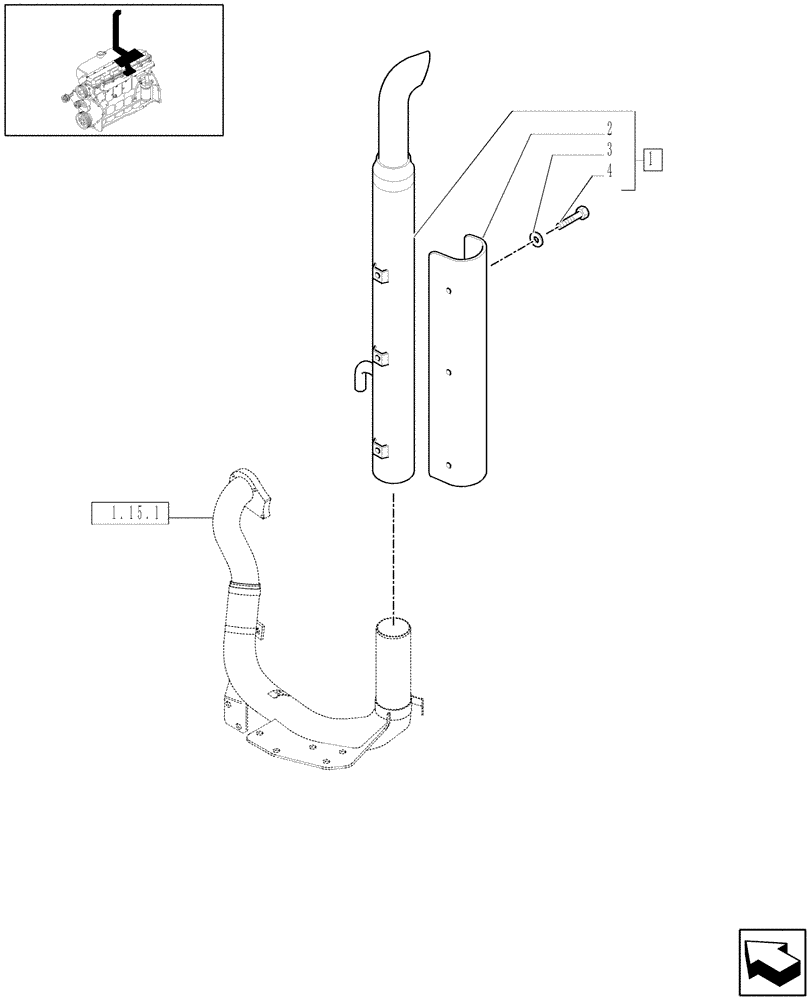

Схема запчастей Case IH MAXXUM 140 - (1.15.1/01) - AIR CLEANER WITH PRE-CLEANER "SPIN TUBE" FOR ROOF WITH LOW PROFILE - SILENCER (MUFFLER) (VAR.332189-333189) (02) - ENGINE EQUIPMENT
3
4
2
1
1.15.1

Артикул

Название

Примечание

Количество

1

87324756

MUFFLER

ASSY, W/Venturi, 4 cyl. models only

1шт.

1

87324759

MUFFLER

ASSY, W/Venturi, 6 cyl. models only

1шт.

with VAR.332189 only

1шт.

2

82035359

SHIELD

1шт.

3

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

6шт.

4

14759521

SCREW,M6 x 14mm

M6x14

6шт.

Выбрано товаров: 6
