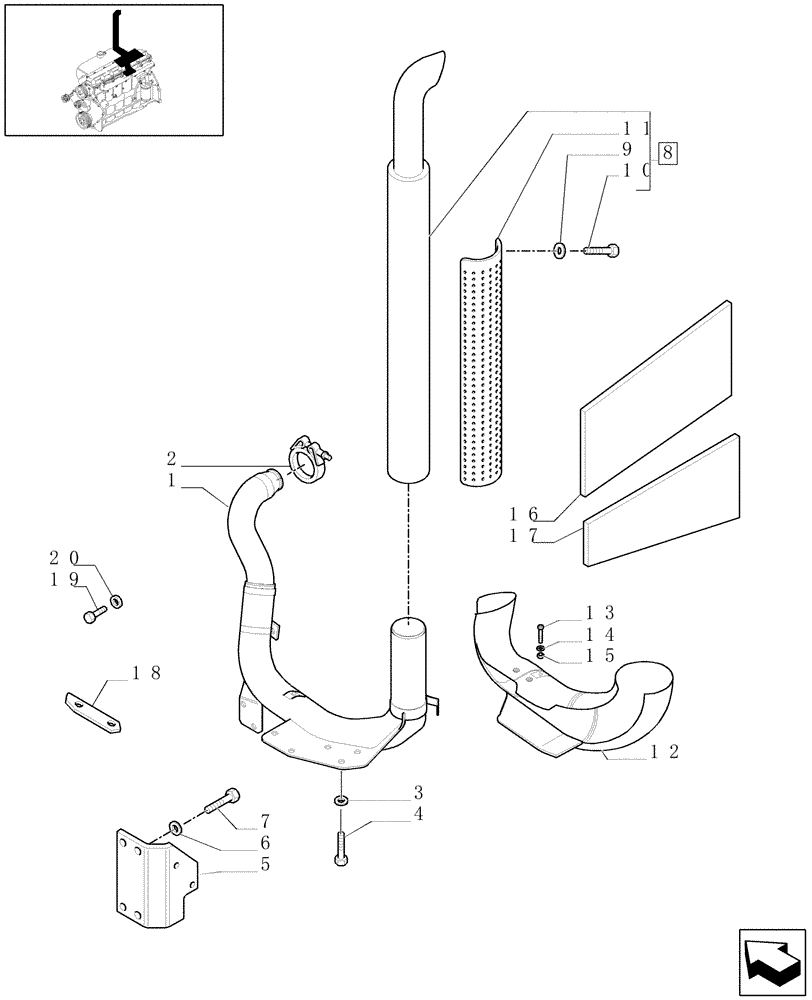

Запчасти Case IH MAXXUM 140 (1.15.1[02]) - SILENCER (MUFFLER) (02) - ENGINE EQUIPMENT

1

87305755

EXHAUST SYSTEM PIPE

Incl. 12, 13, 14, 15, Serial Range: -C6686

1шт.

1

84263752

EXHAUST SYSTEM PIPE

Incl. 12, 13, 14, 15, Start Serial: D6686

1шт.

2

82033948

CLAMP

1шт.

2

87524289

CLAMP,81mm

Stamped NORMA

1шт.

3

14496721

WASHER,13mm ID x 24mm OD x 2.5mm Thk

7шт.

4

80300388

SCREW,M12 x 25mm

7шт.

4

11112221

SCREW,Hex, M12 x 25mm, Cl 8.8, Full Thd

7шт.

5

82036784

SUPPORT

Muffler Bracket for Less Loader Ready

1шт.

6

12646001

WASHER,14.4mm ID x 24mm OD x 2mm Thk

4шт.

7

11115521

SCREW,Hex, M14 x 30mm, Cl 8.8

M14 x 2 x 30

4шт.

8

87324754

MUFFLER

ASSY, L/CAB

1шт.

8

82027845

MUFFLER

ASSY, W/CAB

1шт.

9

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

6шт.

10

14759521

SCREW,M6 x 14mm

M6 x 14

6шт.

11

82035359

SHIELD

1шт.

12

87305791

SHIELD

1шт.

13

14759521

SCREW,M6 x 14mm

M6 x 14

7шт.

14

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

7шт.

15

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

7шт.

16

87601494

SHIELD

Upper, under hood, Start Serial: D5600

1шт.

17

87601495

SHIELD

Lower, under hood, Start Serial: D5600

1шт.

18

84160347

PLATE

1шт.

19

16043021

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

20

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.
