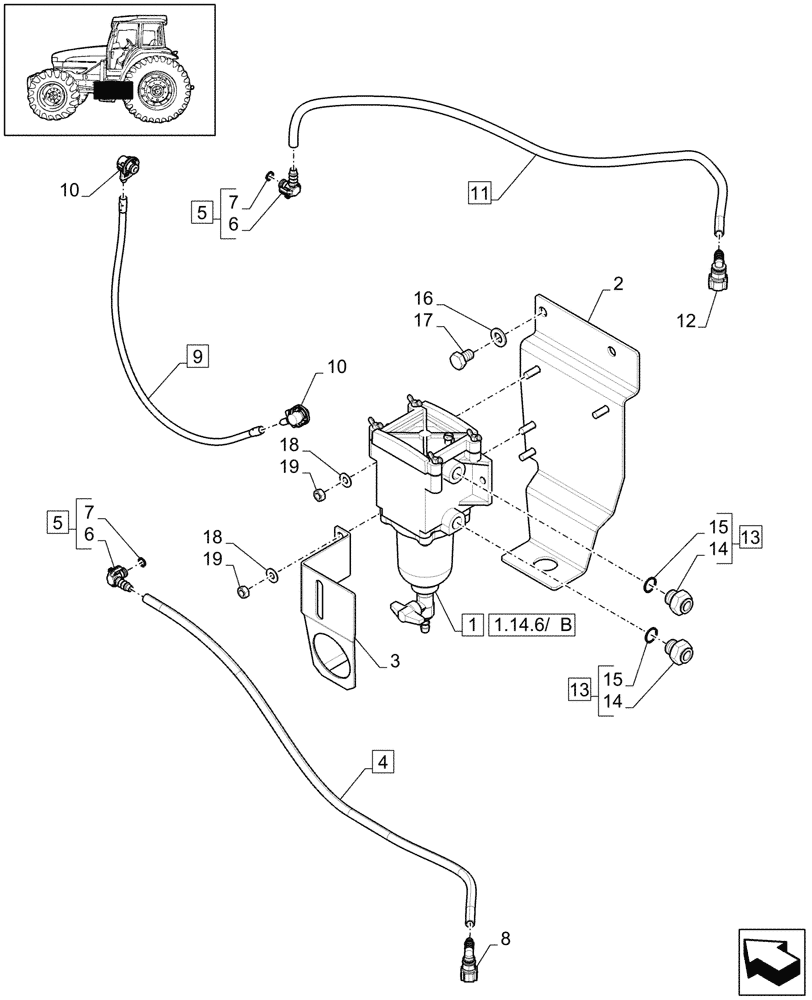

Запчасти Case IH MAXXUM 140 (1.14.6/01) - FUEL LINES FOR 6 CYLINDER ENGINE, HEAVY DUTY (VAR.330103) (02) - ENGINE EQUIPMENT

1

87346728

FUEL FILTER

ASSY

1шт.

2

84381623

BRACKET

Fuel/Water Filter Separator, Serial Range: -C7449

1шт.

2

47459519

BRACKET

Fuel/Water Filter Separator, Start Serial: D7449

1шт.

3

87398550

SHIELD

Fuel/Water Filter Separator, Serial Range: -C7449

1шт.

3

47459541

SHIELD

Fuel/Water Filter Separator, Start Serial: D7449

1шт.

4

84356045

FUEL TUBE,11mm OD X 750mm

Fuel Return, ASSY, Incl 5 (Qty 1), 8

1шт.

5

84283283

FITTING,11.9mm D - 10.6mm D

ASSY, Incl 6 (Qty 1), 7 (Qty 1)

2шт.

6

NSS

NOT SOLD SEPARAT

Fitting, Incl in 5

2шт.

7

4894095

O-RING,2.5mm Thk x 8mm ID, 60 Duro

2шт.

8

84367132

FITTING,5/16'

1шт.

9

87591975

TUBE,8 mm OD x 550 mm L

Fuel Feed, ASSY, Incl 10

1шт.

10

82028482

FITTING

2шт.

11

84401516

FUEL HOSE

Fuel Feed, ASSY, Incl 5 (Qty 1), 12

1шт.

12

84283033

1шт.

13

84382696

HYD CONNECTOR

ASSY, Incl 14 (Qty 1), 15 (Qty 1)

2шт.

14

NSS

NOT SOLD SEPARAT

Connector, Incl in 13

2шт.

15

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

16

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

17

11112121

SCREW,Hex, M12 x 20mm, Cl 8.8, Full Thd

2шт.

18

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

19

43362

NUT,M8 x 1.25, Cl 10

4шт.
