(1.91.4/17) - THREE MID MOUNTED REMOTE VALVES - AUXILIARY CABLES (VAR.331562-332562)

Запчасти Case IH MAXXUM 140 (1.91.4/17) - THREE MID MOUNTED REMOTE VALVES - AUXILIARY CABLES (VAR.331562-332562) (10) - OPERATORS PLATFORM/CAB

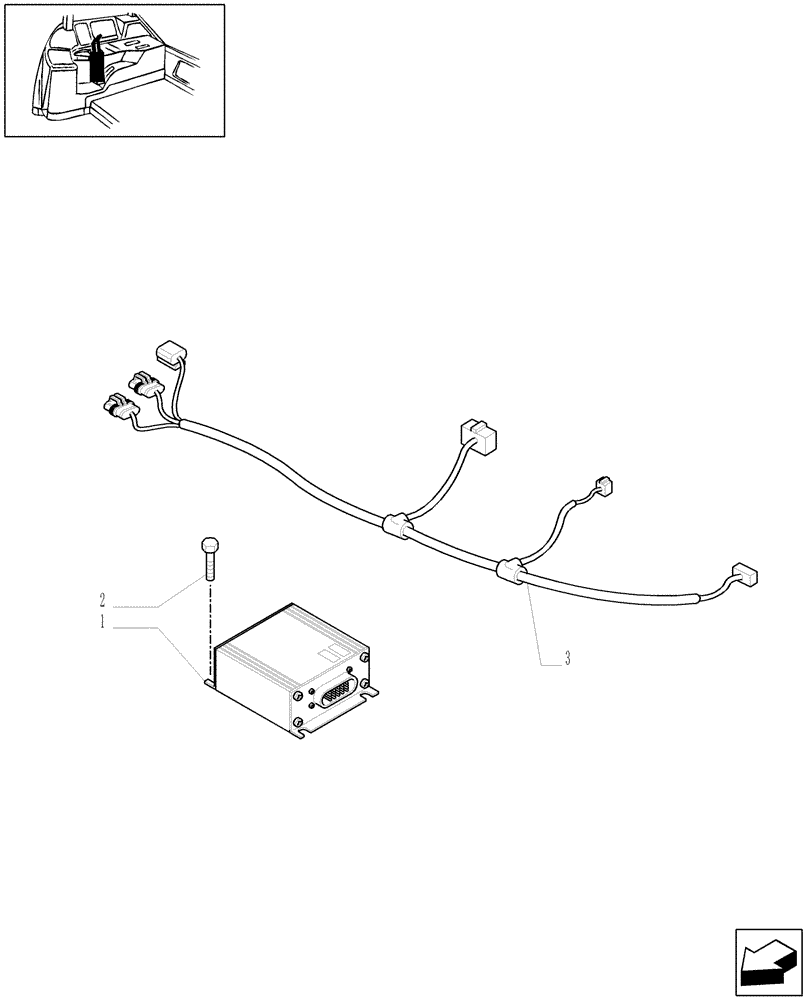

Схема запчастей Case IH MAXXUM 140 - (1.91.4/17) - THREE MID MOUNTED REMOTE VALVES - AUXILIARY CABLES (VAR.331562-332562) (10) - OPERATORS PLATFORM/CAB
1
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82031402

ECU

1шт.

82031402R

REMAN ELECT CONTROL

MAXXUM 100, MAXXUM 110, MAXXUM 115, MAXXUM 120, MAXXUM 125, MAXXUM 130, MAXXUM 140, All TRACTOR (1/07-)

1шт.

82031402C

CORE-ELECTRONIC CONT

Return Number

1шт.

2

15905301

SELF-TAP SCREW,Cross Pan Hd, M6.3 x 16

M8x1.25x90

4шт.

3

82037734

WIRE HARNESS

Loader NA

1шт.
