Запчасти Case IH MAXXUM 140 (1.82.7/35[01A]) - THREE MID MOUNTED REMOTE VALVES - PIPES AND VALVE - D6432 (VAR.331562-332562) (07) - HYDRAULIC SYSTEM

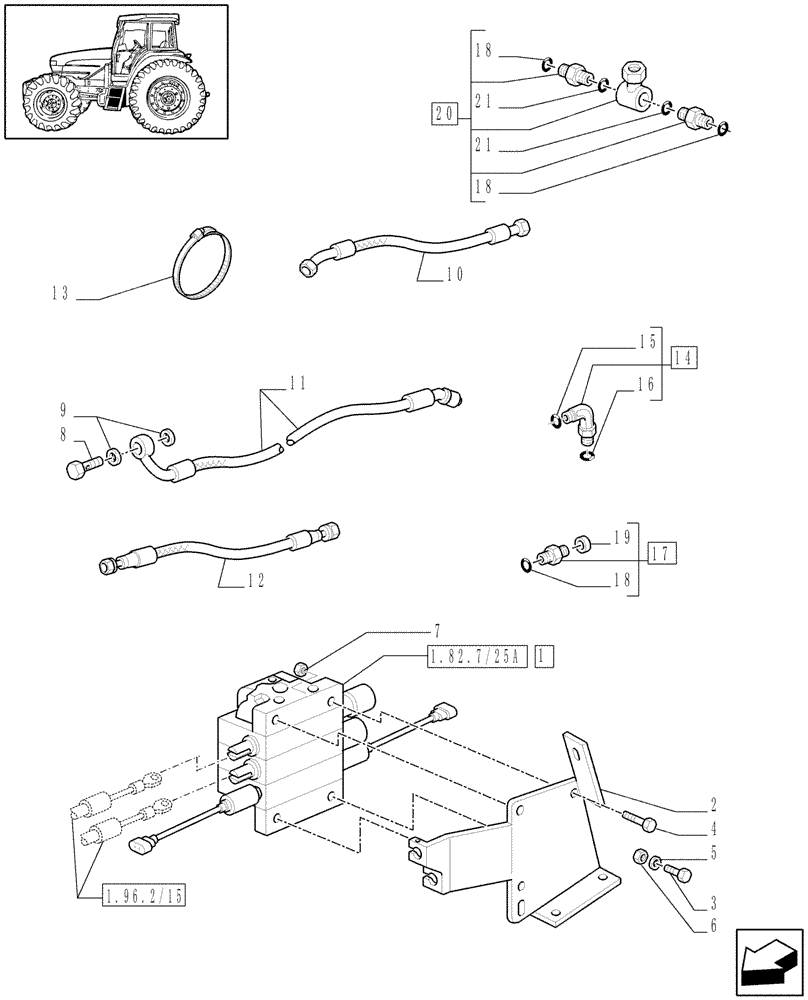

Схема запчастей Case IH MAXXUM 140 - (1.82.7/35[01A]) - THREE MID MOUNTED REMOTE VALVES - PIPES AND VALVE - D6432 (VAR.331562-332562) (07) - HYDRAULIC SYSTEM
17
21
16
4
12
18
1
13
20
11
5
21
7
18
19
9
2
8
10
14
3
18
1.96.2/15
6
15
1.82.7/25a

Артикул

Название

Примечание

Количество

1

82030383

VALVE SECTION

ASSY

1шт.

82030383R

REMAN-HYD VALVE

MAXXUM 100, MAXXUM 110, MAXXUM 115, MAXXUM 120, MAXXUM 125, MAXXUM 130, MAXXUM 140, All (1/07-)

1шт.

82030383C

CORE-VALVE HYD

Return Number

1шт.

47367743R

REMAN-HYD VALVE

MAXXUM 100, MAXXUM 110, MAXXUM 115, MAXXUM 120, MAXXUM 125, MAXXUM 130, MAXXUM 140, All TRACTOR (1/07-), Reman for New PN 82030383

1шт.

47367743C

CORE-VALVE HYD

Return Number

1шт.

2

87568641

BRACKET

1шт.

3

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

4

14420371

SCREW,M10 x 35mm, Cl 12.9

M10 x 35

2шт.

4

14420574

HEX SOC SCREW,M10 x 45mm, Cl 12.9

1шт.

5

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

3шт.

6

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

3шт.

7

11701721

NUT,M10, Cl 10

3шт.

8

5112588

BANJO BOLT,M22 x 1.5 x 40mm

1шт.

9

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

2шт.

10

84202626

FLEXIBLE HOSE

Load Sense, 940MM

1шт.

11

84202624

HOSE ASSY.

Return, 510MM

1шт.

12

84202623

HYDRAULIC HOSE

Supply, 685MM

1шт.

13

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

CABLE STRAP

3шт.

14

5194728

90 ELBOW

1шт.

15

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

16

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

17

82016839

HYD CONNECTOR,Straight, M10 x 1 ORFS, 9/16"-18" ORB

9/16"-18 UN-2A/M10x1

1шт.

18

81844850

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

3шт.

19

82016610

SEAL,8.4mm ID x 11.9mm OD x 1mm Thk

1шт.

20

82018814

CHECK VALVE,9/16" - 18 JIC x 9/16" - 18 ORFS x 9/16" - 18 ORFS

1шт.

3 Mid Mounted Valves for MDC, VAR.331562

1шт.

21

81827528

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

Выбрано товаров: 27
