Запчасти Case IH MAXXUM 140 (1.82.7/33[01]) - TWO MID MOUNTED REMOTE VALVES - PIPES AND VALVE - C6432 (VAR.331560-332560-331561-332561) (07) - HYDRAULIC SYSTEM

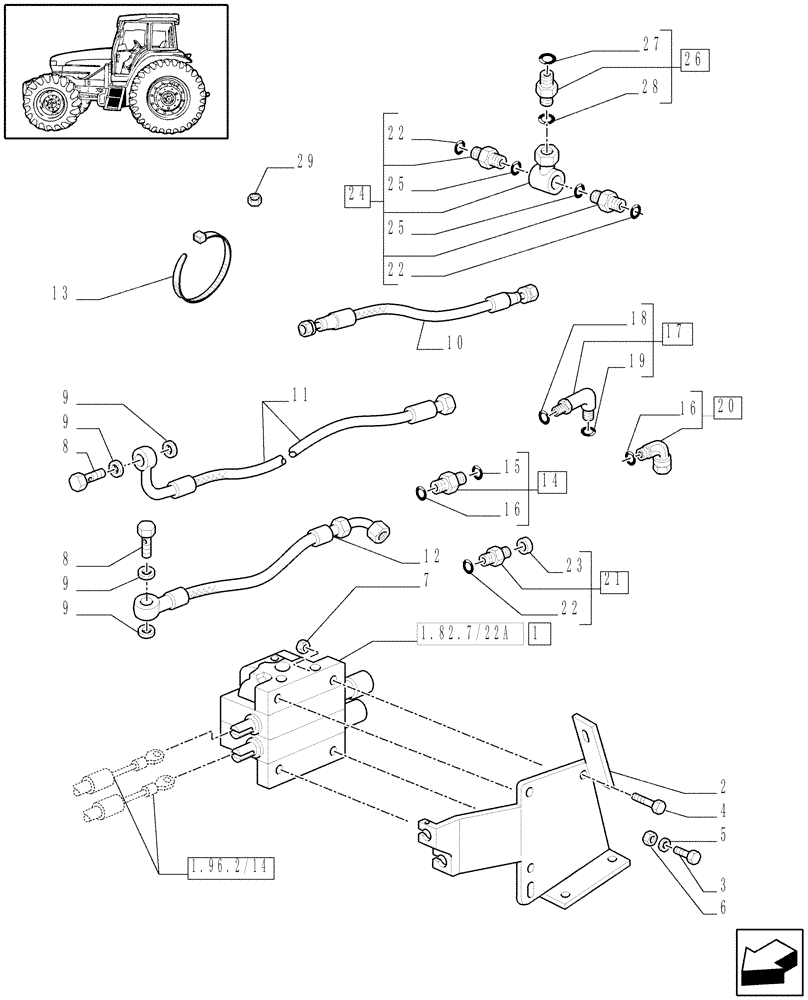

Схема запчастей Case IH MAXXUM 140 - (1.82.7/33[01]) - TWO MID MOUNTED REMOTE VALVES - PIPES AND VALVE - C6432 (VAR.331560-332560-331561-332561) (07) - HYDRAULIC SYSTEM
4
18
27
3
20
21
22
24
15
28
12
1
17
1.82.7/22a
22
11
9
7
14
29
5
1.96.2/14
8
16
13
19
9
10
25
9
6
2
16
26
8
25
9
22
23

Артикул

Название

Примечание

Количество

1

82019733

VALVE SECTION

Assy

1шт.

2

87568641

BRACKET

1шт.

3

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

4

14420371

SCREW,M10 x 35mm, Cl 12.9

M10 x 35

2шт.

4

14420574

HEX SOC SCREW,M10 x 45mm, Cl 12.9

1шт.

5

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

3шт.

6

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

3шт.

7

11701721

NUT,M10, Cl 10

3шт.

8

5112588

BANJO BOLT,M22 x 1.5 x 40mm

M12x1.25x40

2шт.

9

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

4шт.

10

82036909

FLEXIBLE HOSE,6.35mm ID x 1880mm L, SAE 100R2

MMV Load Sense, 1880MM

1шт.

11

82034041

FLEXIBLE HOSE,15.88mm ID x 750mm L, SAE 100R2

MMV Return, 680MM

1шт.

12

87308082

FLEXIBLE HOSE,15.88mm ID x 2000mm L, SAE 100R2

MMV Feed, 1660MM

1шт.

13

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

CABLE STRAP

3шт.

14

82034043

HYD CONNECTOR

13/16"-16 UN-2A/M22 x 1.5

1шт.

15

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

16

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

M12.42 ID x 1.78 Thk

2шт.

17

82034042

ELBOW

1-3/16"-12 UN-2A/M27 x 2

1шт.

18

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

1шт.

19

14438185

O-RING,24mm ID x 3mm

1шт.

20

82034044

ELBOW

13/16"-16

1шт.

21

82016839

HYD CONNECTOR,Straight, M10 x 1 ORFS, 9/16"-18" ORB

9/16"-18 UN-2A/M10 x 1

1шт.

22

81844850

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

3шт.

23

82016610

SEAL,8.4mm ID x 11.9mm OD x 1mm Thk

1шт.

24

82018814

CHECK VALVE,9/16" - 18 JIC x 9/16" - 18 ORFS x 9/16" - 18 ORFS

1шт.

2 Mid Mounted Valves for MDC, VAR.331560, 331561

1шт.

25

81827528

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

26

5185045

HYD CONNECTOR

9/16"-18, M12 x 1,5

1шт.

27

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

1шт.

28

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

29

47123020

PLUG,Hex

13/16 - 16

1шт.

29

83987627

CAP,1-14UN-2A

1" - 14

1шт.

Выбрано товаров: 32
