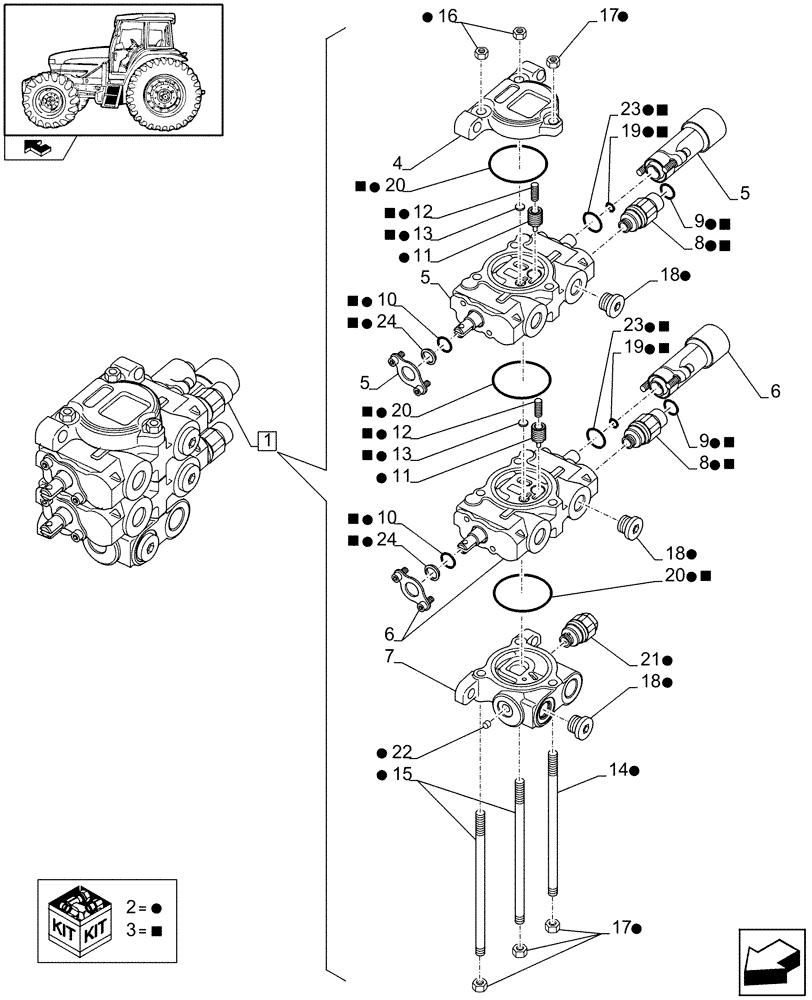

Запчасти Case IH MAXXUM 140 (1.82.7/22A[01A]) - CONTROL VALVE - BREAKDOWN - D7374 (VAR.331560-332560-334560-331561-332561; 330820-332820-330821-331821-332821-334821-336821-338821 / 743745; 334820-335820 / 743746) (07) - HYDRAULIC SYSTEM

1

47367745

VALVE SECTION

ASSY, MMV, Incl 2 - 13

1шт.

1

47367745R

REMAN-HYD VALVE

Reman ASSY, MMV, Incl 2 - 13

1шт.

1

47367745C

CORE-VALVE HYD

Core Return Number

1шт.

2

82039635

SERVICE KIT

1шт.

3

82034757

SEAL KIT

1шт.

4

82030637

HYD VALVE SECTION

1шт.

5

82030635

HYDRAULIC VALVE

1шт.

6

47373565

HYD VALVE SECTION

1шт.

7

82030632

HYD VALVE SECTION

1шт.

8

86582451

HYD CONNECTOR

2шт.

9

14453181

O-RING,0.489" ID x 0.07" Width

2шт.

10

14457180

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

4шт.

11

75289566

SPOOL

2шт.

12

75286565

2шт.

13

75312804

DISC

2шт.

14

NSS

NOT SOLD SEPARAT

Tie Rod 3/8-24UNF-2A, Incl in 2

1шт.

15

NSS

NOT SOLD SEPARAT

Tie Rod 5-16-18UNC-2A, Incl in 2

2шт.

16

NSS

NOT SOLD SEPARAT

Nut 3/8-24UNF-2B, Incl in 2

2шт.

17

NSS

NOT SOLD SEPARAT

Nut 5/16-18UNC-2B, Incl in 2

4шт.

18

NSS

NOT SOLD SEPARAT

Plug, Incl in 2

3шт.

19

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 2, 3

1шт.

20

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 2, 3

3шт.

21

NSS

NOT SOLD SEPARAT

Connector, Incl in 2

1шт.

22

NSS

NOT SOLD SEPARAT

Plug, Incl in 2

1шт.

23

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 2, 3

2шт.

24

NSS

NOT SOLD SEPARAT

Seal, Incl in 2, 3

3шт.
