Запчасти Case IH MAXXUM 140 (1.82.7/16A) - 2 CCLS (EDC) ELECTRONIC CONTROL VALVES WITH TRAILER BRAKE VALVE AND ASSOCIATED PARTS (VAR.330853) (07) - HYDRAULIC SYSTEM

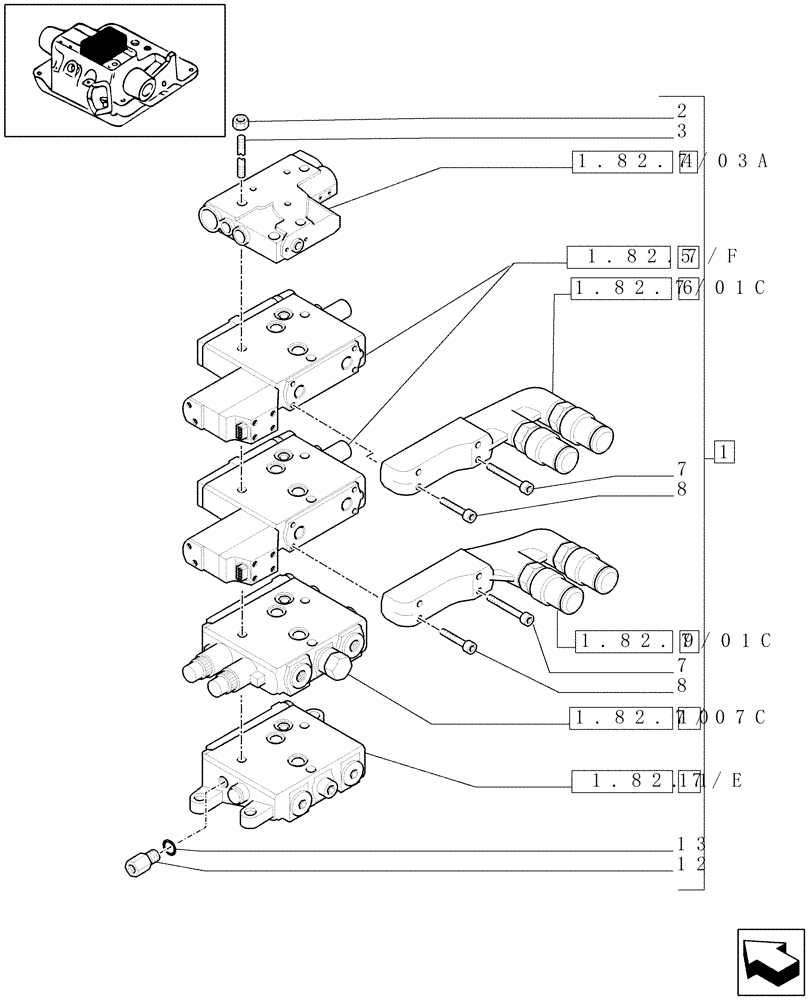

Схема запчастей Case IH MAXXUM 140 - (1.82.7/16A) - 2 CCLS (EDC) ELECTRONIC CONTROL VALVES WITH TRAILER BRAKE VALVE AND ASSOCIATED PARTS (VAR.330853) (07) - HYDRAULIC SYSTEM
7
6
10
8
4
1.82.7/f
2
7
12
1
1.82.7/e
1.82.7/01c
1.82.7/03a
1.82.7/07c
1.82.7/01c
9
11
8
13
3
5

Артикул

Название

Примечание

Количество

1

87546171

CONTROL VALVE

1шт.

2

5195169

NUT,M8

3шт.

3

5199619

TIE-ROD

3шт.

4

47123078

HYDRAULIC VALVE

1шт.

5

84125295

VALVE SECTION,Electronic Control

2шт.

5

84125295R

REMAN-HYD VALVE

MAXXUM 100, MAXXUM 110, MAXXUM 115, MAXXUM 120, MAXXUM 125, MAXXUM 130, MAXXUM 140 all (1/07-)

2шт.

5

84125295C

CORE-VALVE HYD

Return Number

2шт.

6

87381963

QUICK MALE COUPLING

1шт.

7

47129475

HEX SOC SCREW,M6 x 50mm

4шт.

8

47129474

HEX SOC SCREW,M6 x 35mm

4шт.

9

87381958

QUICK MALE COUPLING

1шт.

10

87546170

CONTROL VALVE

1шт.

10

84175671R

REMAN-HYD VALVE

MAXXUM 100, MAXXUM 110, MAXXUM 115, MAXXUM 120, MAXXUM 125, MAXXUM 130, MAXXUM 140 all (1/07-) Reman for New P/N 87546170

1шт.

10

84175671C

CORE-VALVE HYD

Return Number

1шт.

11

87730706

CONTROL VALVE

1шт.

11

87730706R

REMAN-HYD VALVE

MAXXUM 100, MAXXUM 110, MAXXUM 115, MAXXUM 120, MAXXUM 125, MAXXUM 130, MAXXUM 140 ALL (1/07-)

1шт.

11

87730706C

CORE-VALVE HYD

RETURN NUMBER

1шт.

12

5191704

CHECK VALVE

Incl. 13

1шт.

13

5191705

O-RING,9.4mm D x 2.1mm Thk

1шт.

Выбрано товаров: 19
