(1.82.1/01[02]) - FIXED DELIVERY PUMP WITH 24X24 GEARBOX - HYDRAULIC LIFT PIPES

Запчасти Case IH MAXXUM 140 (1.82.1/01[02]) - FIXED DELIVERY PUMP WITH 24X24 GEARBOX - HYDRAULIC LIFT PIPES (07) - HYDRAULIC SYSTEM

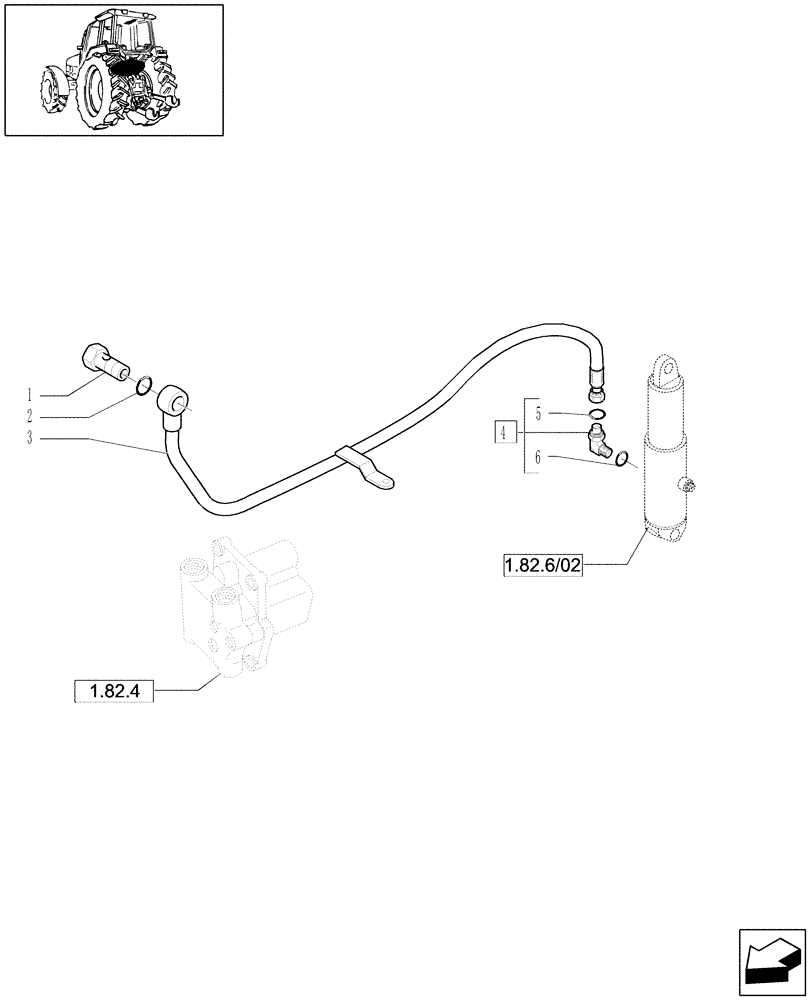

Схема запчастей Case IH MAXXUM 140 - (1.82.1/01[02]) - FIXED DELIVERY PUMP WITH 24X24 GEARBOX - HYDRAULIC LIFT PIPES (07) - HYDRAULIC SYSTEM
6
1
5
3
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

10184311

BANJO BOLT,M14 x 1.5 x 27mm

M14x1.5

1шт.

2

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

D=14

1шт.

3

87326948

HYDRAULIC HOSE

1шт.

4

5194076

ELBOW,90 Deg, 11/16-16 ORFS x M16 x 1.5 ORB

11/16"-16, M16x15

1шт.

5

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

6

14437885

O-RING,13.30mm ID x 2.40mm

1шт.
