Запчасти Case IH MAXXUM 140 (1.40. 7/02[02]) - (CL.4) FRONT AXLE W/MULTI-PLATE DIFF. LOCK, ST. SENSOR AND BRAKES - SENSOR (VAR.330426) (04) - FRONT AXLE & STEERING

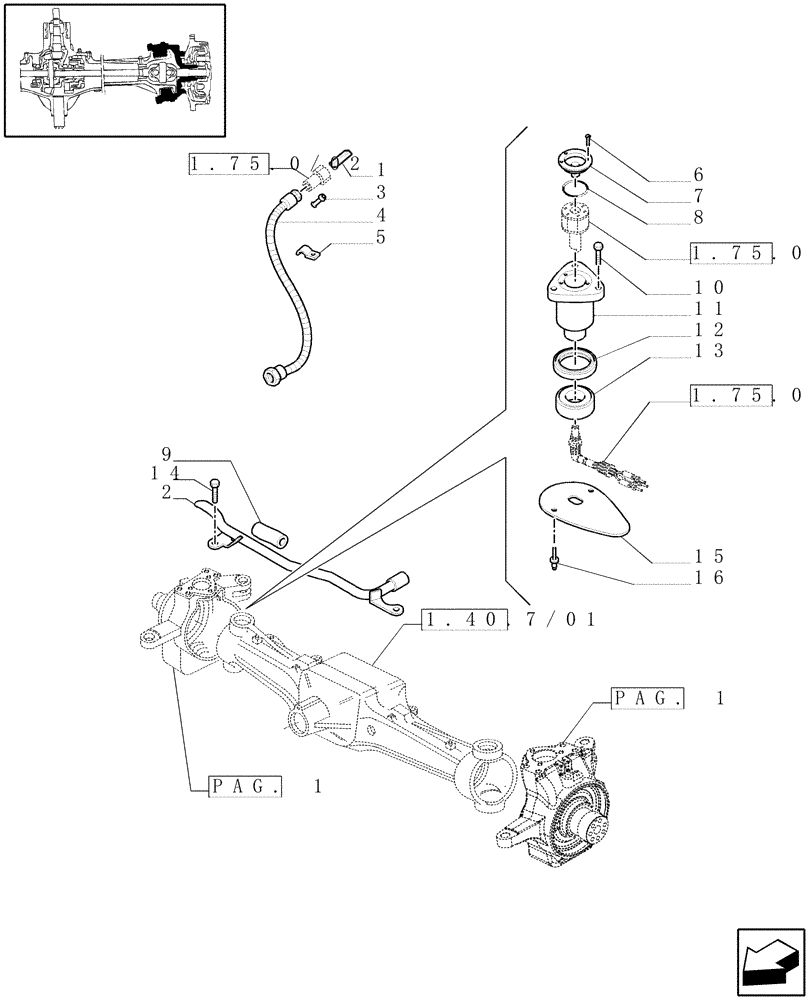

Схема запчастей Case IH MAXXUM 140 - (1.40. 7/02[02]) - (CL.4) FRONT AXLE W/MULTI-PLATE DIFF. LOCK, ST. SENSOR AND BRAKES - SENSOR (VAR.330426) (04) - FRONT AXLE & STEERING
8
3
pag. 1
pag. 1
13
1.75.0/02
1.40.7/01
1.75.0/02
1.75.0/02
12
9
6
14
11
5
10
2
1
4
15
16
7

Артикул

Название

Примечание

Количество

1

82918451

SPACER

1шт.

2

87588344

TUBE,12.00mm OD x 380.40, 49.00mm

for Male Connector Protection

1шт.

3

82918419

PLUG

1шт.

4

82016109

FLEXIBLE SHEATH

, Serial Range: -C5885

1шт.

4

87658190

FLEXIBLE SHEATH

, Start Serial: D5885

1шт.

5

10441490

COLLAR,14mm, Coat, 7mm Bolt Hole, P Type

1шт.

6

13299218

SCREW,Pozidriv Flat Hd, Csk, M5 x 12mm, Cl 5.8

3шт.

7

87309292

PIN

, Serial Range: -C5731

1шт.

7

84384510

TOP

, Start Serial: D5731

1шт.

8

14458280

O-RING,31.42mm ID x 2.62mm

1шт.

9

87329095

HOSE PROTECTION

Termoreduction, Serial Range: -C5885

1шт.

9

87619627

HOSE PROTECTION

Termoreduction, Start Serial: D5885

1шт.

10

14274534

LOCK BOLT,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

3шт.

11

87382577

BALL STUD

BALL PIN

1шт.

12

47137702

SEAL,56mm ID x 70mm OD x 10mm Thk

1шт.

13

47137677

SPH ROLLER BEARING,30.16mm ID x 64.29mm OD x 21.43mm W

1шт.

14

15540824

SCREW,Hex, M12 x 1.25 x 50mm, Cl 8.8

1шт.

15

87315098

SHIELD

1шт.

16

14641591

RIVET,Pop, Truss Hd, M3.20 x 12mm, AL, PLN

2шт.

Выбрано товаров: 19
