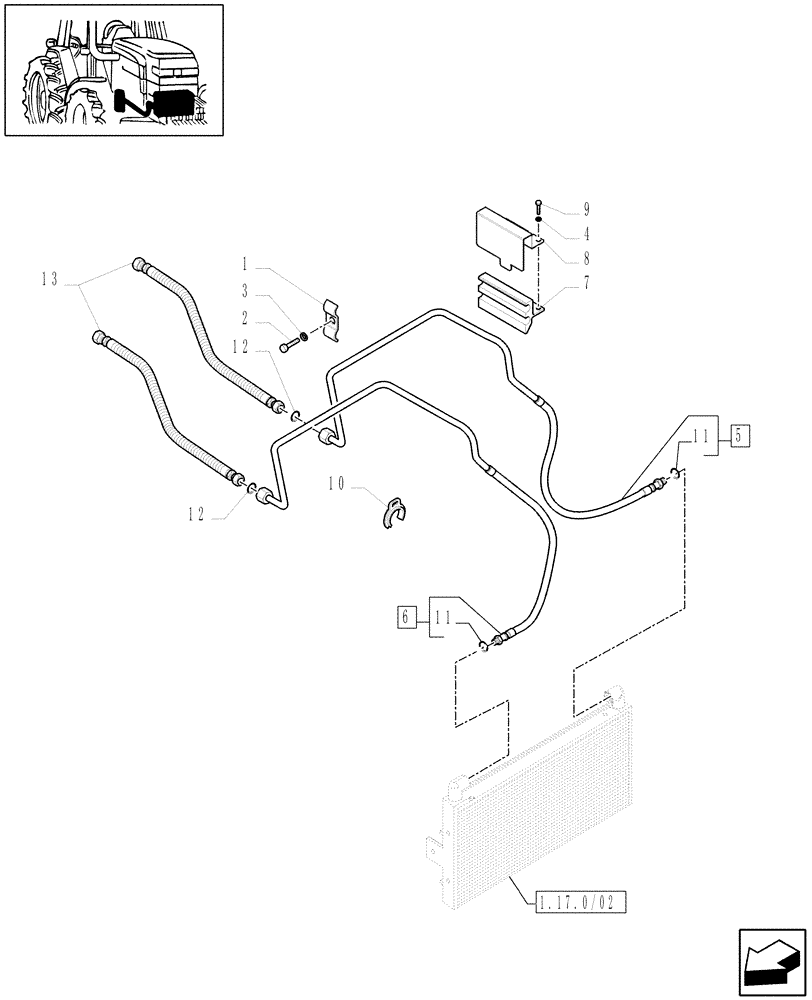

Запчасти Case IH MAXXUM 140 (1.29.7/09[01]) - TRANSMISSION 16X16 AND 17X16 - OIL COOLER PIPES (VAR.330283) (03) - TRANSMISSION

1

87588095

PIPE CLAMP

Incl. 4

1шт.

2

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

3

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

4

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

3шт.

5

87588092

HYD TUBE,12 mm OD

Incl. 11, 12

1шт.

6

87588093

HYD TUBE,16 mm ID x 1000, 640 mm L

Incl. 11, 12

1шт.

7

87314075

SUPPORT

1шт.

8

87314078

COVER

1шт.

9

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

3шт.

10

87363477

CLIP

, Start Serial: D5790

2шт.

11

9907059353

O-RING

2шт.

12

81845038

O-RING,0.5" ID x 0.07" Thk

2шт.

13

82034721

HYDRAULIC HOSE

, Serial Range: -C6870

2шт.

13

84295873

FLEXIBLE HOSE

, Start Serial: D6870

1шт.

13

84295874

FLEXIBLE HOSE

, Start Serial: D6870

1шт.
