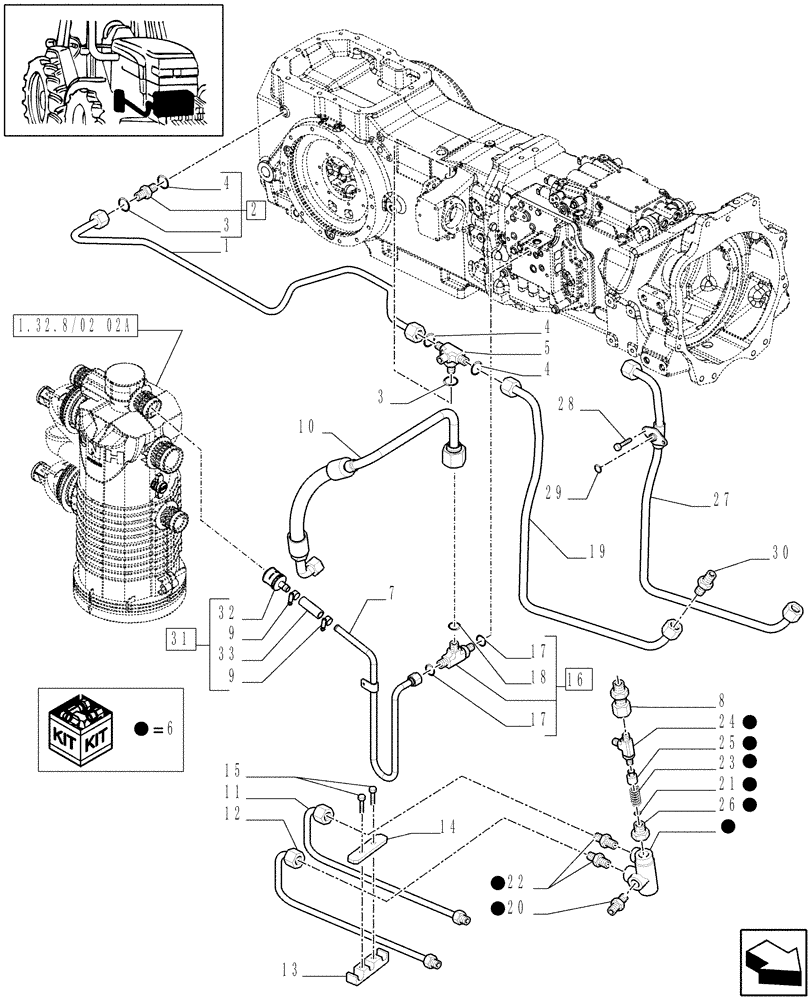

Запчасти Case IH MAXXUM 140 (1.29.7/06[02B]) - TRANSMISSION 16X16 AND 17X16 - GEARBOX LUBRICATION PIPING - D7070 (03) - TRANSMISSION

1

87624551

HYD TUBE

PTO Lube

1шт.

2

5194065

HYD CONNECTOR,M18 x 1.5 x 36mm

1шт.

3

14437685

O-RING,9.30mm ID x 2.40mm

2шт.

4

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

3шт.

5

87303747

TEE

Incl.3,4

1шт.

6

87634972

BY-PASS VALVE

ASSY

1шт.

7

84352582

HYD TUBE

From Filter

1шт.

8

84168451

HYD CONNECTOR

1шт.

9

82039344

HOSE CLAMP,20mm - 32mm

2шт.

10

84297046

FLEXIBLE HOSE

Bypass Valve Lube

1шт.

11

84172716

TUBE,12 mm OD

Oil Cooler

1шт.

12

84172718

TUBE,12 mm OD

1шт.

13

84172921

CLAMP BRACKET

1шт.

14

87636988

BRACKET

1шт.

15

10902824

BOLT,Hex, M6 x 30mm, Cl 8.8

2шт.

16

5197177

TEE,1"-14 ORFS x 1"-14 ORFS x M18 x 1.5 ORB

1шт.

17

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

18

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

19

47123689

HYD TUBE

1шт.

For 30 and 40 KPH Transm.

1шт.

20

86579675

HYD CONNECTOR,13/16"-16 ORFS x M16 x 1.5 ORB

1шт.

21

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

22

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

2шт.

23

5159185

SPRING,Compression, 12.5mm OD x 32.5mm L

1шт.

24

86579705

TEE,1"-14 ORFS x M22 x 1.5 ORB Run

1шт.

25

5169565

VALVE,By-Pass

1шт.

26

47123781

PLUG,M22 x 1.5

1шт.

27

47123530

HYD TUBE

1шт.

For 40E and 50 KPH Transm.

1шт.

28

14306221

HEX SOC SCREW,M8 x 16mm, Cl 8.8, Full Thd

2шт.

For 40E and 50 KPH Transm.

1шт.

29

577567

O-RING,9.92mm ID x 15.16mm OD x 2.62mm

1шт.

For 40E and 50 KPH Transm.

1шт.

30

81863437

HYD CONNECTOR,M18 x 13/16"-16 ORS

1шт.

31

84352585

HYD CONNECTOR

1шт.

32

87330801

HYD CONNECTOR,21mm D x 12.5mm D

1шт.

33

84352586

HOSE,15.9mm ID x 70mm L, SAE 100R6

1шт.
