Запчасти Case IH MAXXUM 140 (1.29.7/06[02]) - TRANSMISSION 16X16 AND 17X16 - GEARBOX LUBRICATION PIPING - C6562 (03) - TRANSMISSION

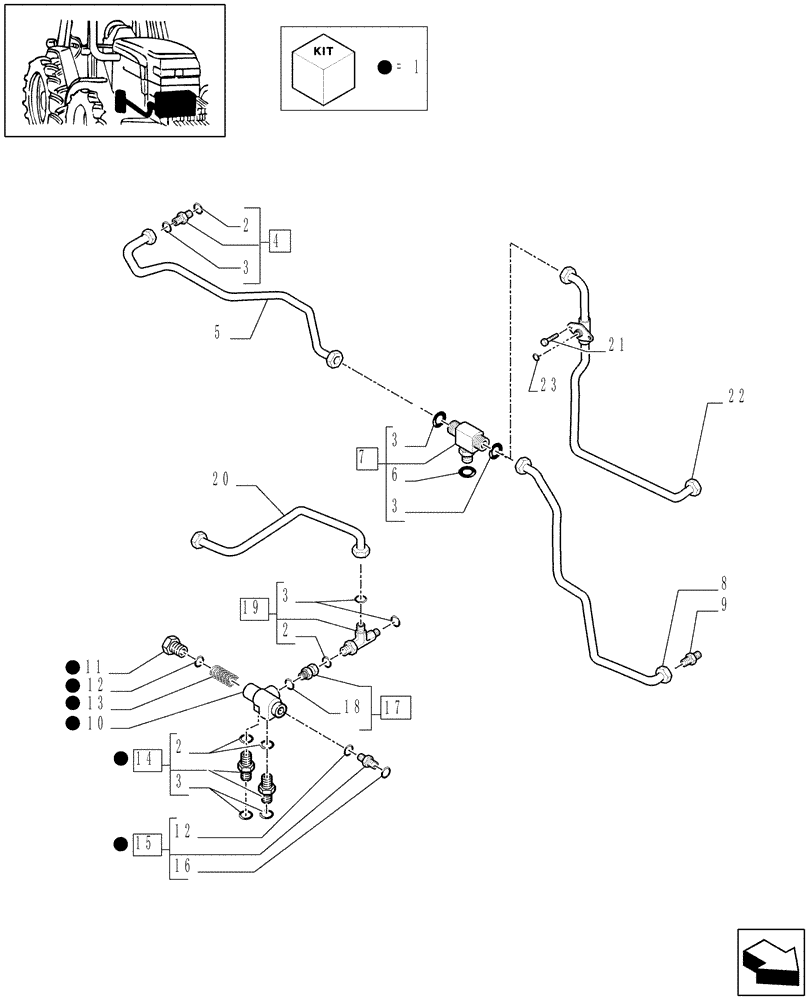

Схема запчастей Case IH MAXXUM 140 - (1.29.7/06[02]) - TRANSMISSION 16X16 AND 17X16 - GEARBOX LUBRICATION PIPING - C6562 (03) - TRANSMISSION
17
12
9
4
3
16
3
8
10
13
7
1
3
1
1
1
1
20
18
2
3
1
22
5
3
2
1
12
14
11
15
23
19
6
2
21

Артикул

Название

Примечание

Количество

1

5196644

BY-PASS VALVE

ASSY, Bypass

1шт.

2

14437985

O-RING,15.3mm ID x 2.4mm

4шт.

3

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

12.42 x 1.78

5шт.

4

5194065

HYD CONNECTOR,M18 x 1.5 x 36mm

13/16''-16, M18 x 1.5

1шт.

5

87310101

HYD TUBE

13/16''-16

1шт.

6

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

7

87303747

TEE

13/16"-16

1шт.

8

47123689

HYD TUBE

13/16"-16

1шт.

For 30 and 40 KPH Transm.

1шт.

9

81863437

HYD CONNECTOR,M18 x 13/16"-16 ORS

1шт.

10

5169565

VALVE,By-Pass

Bypass

1шт.

11

47123781

PLUG,M22 x 1.5

1шт.

12

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

13

5159185

SPRING,Compression, 12.5mm OD x 32.5mm L

1шт.

14

5194065

HYD CONNECTOR,M18 x 1.5 x 36mm

13/16"-16, M18 x 1.5

2шт.

15

5192291

HYD CONNECTOR,1" - 14 ORFS x M22 x 1.5 ORB

1"-14, M22 x 1.5

1шт.

16

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

17

5196877

HYD CONNECTOR

1шт.

18

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

19

5196885

TEE

13/16"-16, M18 x 1.5

1шт.

20

47123586

HYD TUBE

13/16"-16

1шт.

21

14306221

HEX SOC SCREW,M8 x 16mm, Cl 8.8, Full Thd

1шт.

For 40E and 50 KPH Transm.

1шт.

22

47123530

HYD TUBE

1шт.

For 40E and 50 KPH Transm.

1шт.

23

577567

O-RING,9.92mm ID x 15.16mm OD x 2.62mm

1шт.

For 40E and 50 KPH Transm.

1шт.

Выбрано товаров: 27
