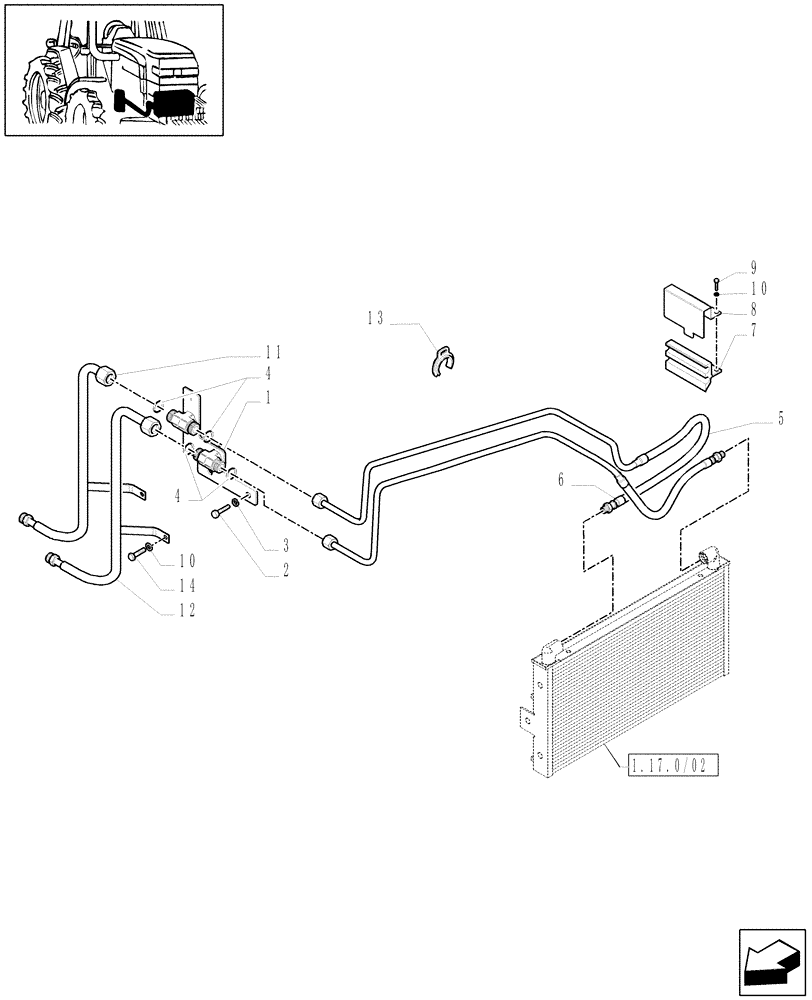

Запчасти Case IH MAXXUM 140 (1.29.7/03[01]) - TRANSMISSION 24X24 HI-LO - OIL COOLER PIPES (03) - TRANSMISSION

1

84136405

HOLDER

Incl. 4

1шт.

2

11112421

SCREW,Hex, M12 x 30mm, Cl 8.8

3шт.

3

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

3шт.

4

81825117

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

5

87538826

HYD TUBE,18 mm OD x 909, 659 mm L

, Serial Range: -C5795

1шт.

5

87617966

HYD TUBE,18 mm OD

, Start Serial: D5795

1шт.

6

87538827

HYD TUBE,18 mm OD

, Serial Range: -C5795

1шт.

6

87650251

HYD TUBE,18 mm OD

, Start Serial: D5795

1шт.

7

87314075

SUPPORT

, Serial Range: -C5795

1шт.

7

87652575

SUPPORT

, Start Serial: D5795

1шт.

8

87314078

COVER

, Serial Range: -C5795

1шт.

8

87649791

COVER

, Start Serial: D5795

1шт.

9

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

3шт.

10

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

4шт.

11

87542132

HYD TUBE,18 mm OD x 468, 257 mm L

L/BORE

1шт.

12

87542133

HYD TUBE,16 mm ID x 18 mm OD x 408, 312 mm L

L/BORE

1шт.

13

87363477

CLIP

, Start Serial: D5790

2шт.

14

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

1шт.
