(1.27.2[02]) - TRANSMISSION 24X24 HI-LO - CLUTCHES (STD + VAR.330282)

Запчасти Case IH MAXXUM 140 (1.27.2[02]) - TRANSMISSION 24X24 HI-LO - CLUTCHES (STD + VAR.330282) (03) - TRANSMISSION

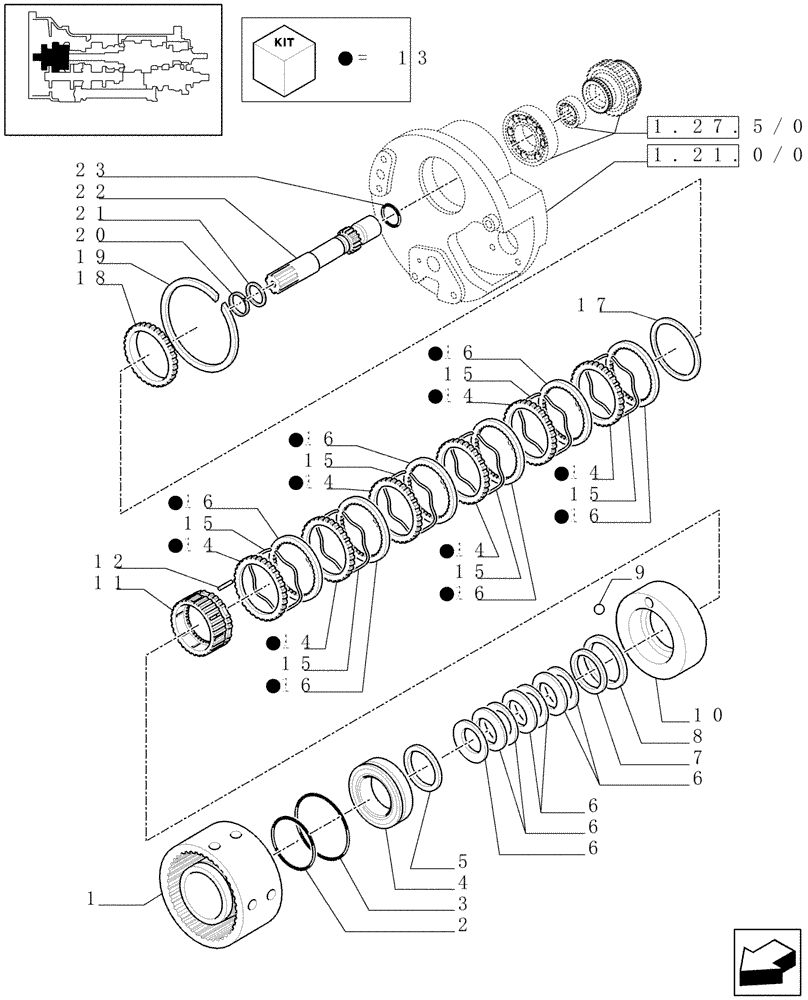

Схема запчастей Case IH MAXXUM 140 - (1.27.2[02]) - TRANSMISSION 24X24 HI-LO - CLUTCHES (STD + VAR.330282) (03) - TRANSMISSION
13
2
17
10
6
13
14
16
14
13
11
1.27.5/01
1.21.0/01
5
13
6
13
9
16
1
13
13
4
23
22
16
20
13
13
8
15
15
14
16
21
18
15
3
13
14
15
6
6
7
15
12
13
19
15
16
16
14
13
13
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47127001

HOUSING

1шт.

2

5162398

SEALING RING,82.55mm ID x 90mm OD x 3.2mm Thk

SEALRING

1шт.

3

5137563

GASKET,124.55mm ID x 132mm OD x 3.2mm Thk

D=132 x 3.2

1шт.

4

87325223

PISTON

1шт.

5

47137663

PISTON RING,77mm ID x 97mm OD x 2.5mm Thk

1шт.

6

5194761

SPRING,73mm ID x 93mm OD x 3.7mm Thk

7шт.

7

47137711

CIRCLIP,72.2mm ID x 85mm OD x 2.8mm Thk

1шт.

8

47137712

SNAP RING,70.2mm ID x 76mm OD x 1.5mm Thk

1шт.

9

20063420

BALL,3.96mm OD, Gr 100

1шт.

10

5195750

WASHER

1шт.

11

5195746

HUB

1шт.

12

87325225

PIN,2.5mm OD x 30.5mm L

1шт.

13

87325220

CLUTCH PACK

ASSY

1шт.

14

87325221

CLUTCH DISC,119.60mm ID x 167.50mm OD x 2mm Thk

CLUTCH DISK 2.00MM Thick

6шт.

14

87325222

CLUTCH DISC,119.60mm ID x 167.50mm OD x 2.20mm Thk

CLUTCH DISK 2.20MM Thick

6шт.

15

81878948

SPRING,162.58mm ID

6шт.

16

87310594

CLUTCH PLATE,114.72mm ID x 154.4mm OD x 2.3mm Thk

6шт.

17

81865152

SEAL,107.72mm ID x 116.32mm OD x 3.8mm Thk

1шт.

18

87325224

PLATE,Z66, 117mm ID

1шт.

19

5194760

SNAP RING,163mm ID

1шт.

20

81867117

SEAL,32mm ID x 36.60mm OD x 1.60mm Thk

36.6 x 32 x 1.6

1шт.

21

81879022

WASHER,36.1mm ID x 43mm OD x 3.8mm Thk

1шт.

22

47134577

SHAFT

1шт.

23

5195402

O-RING,2.62mm Thk x 55.24mm ID, 90 Duro

1шт.
