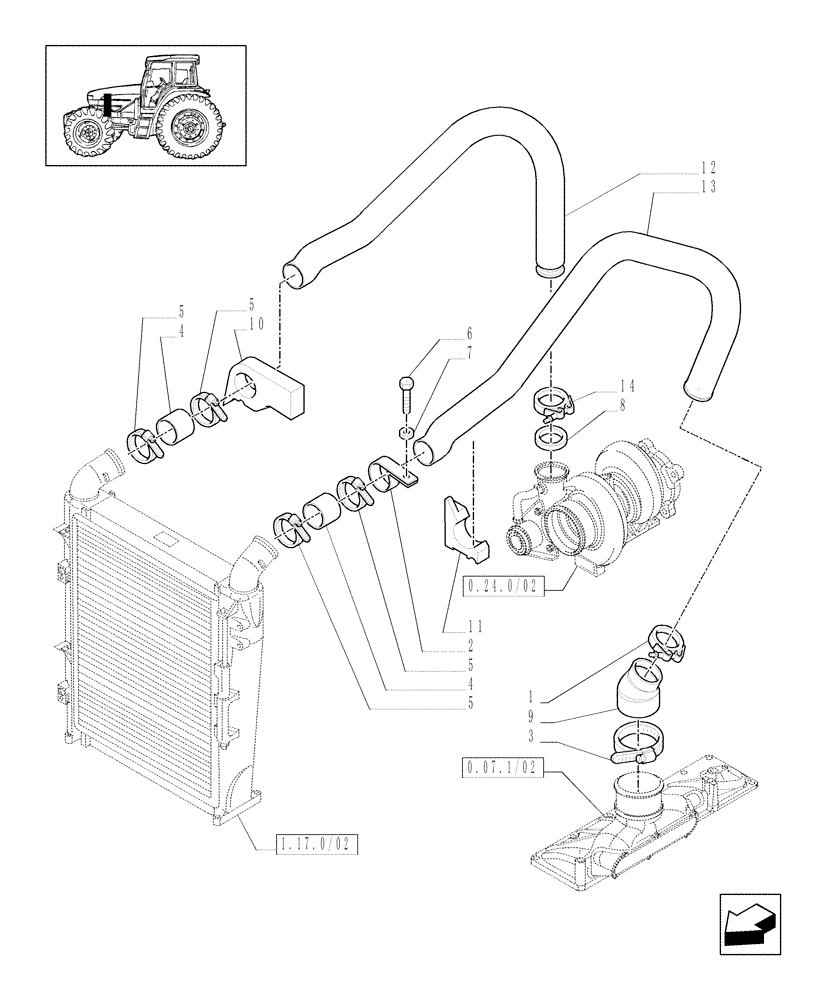

Запчасти Case IH MAXXUM 140 (1.19.6/01) - INTERCOOLER AND CONDENSER - PIPES (02) - ENGINE EQUIPMENT

1

87524288

CLAMP,77mm

1шт.

2

82036433

CLAMP,57.1mm ID, 12.7mm Bolt Hole, P Type

1шт.

3

82036354

HOSE CLAMP,70mm - 90mm

1шт.

4

87695004

HOSE,57.10 mm ID, SAE J20 R4

2шт.

5

82036351

HOSE CLAMP,50 - 70mm X 14.5mm

5шт.

6

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

7

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

8

14460081

SEALING RING,-142, Cl 7, 2.362" ID x .103" Thk

SEALRING

1шт.

9

82036504

INTAKE AIR HOSE,57.10 mm ID, 76.00 mm ID x 90.00 mm, SAE J20R4 CLASS C

1шт.

10

87325639

SEAL

1шт.

11

82027368

SEAL

1шт.

12

82034285

TUBE

1шт.

12

87689036

RIGID TUBE,59 mm OD x 725.3, 268 mm L

1шт.

13

82025955

TUBE

1шт.

13

87689037

HYD TUBE,59 mm OD x 791, 112 mm L

1шт.

14

82033571

CLAMP,76mm

1шт.
