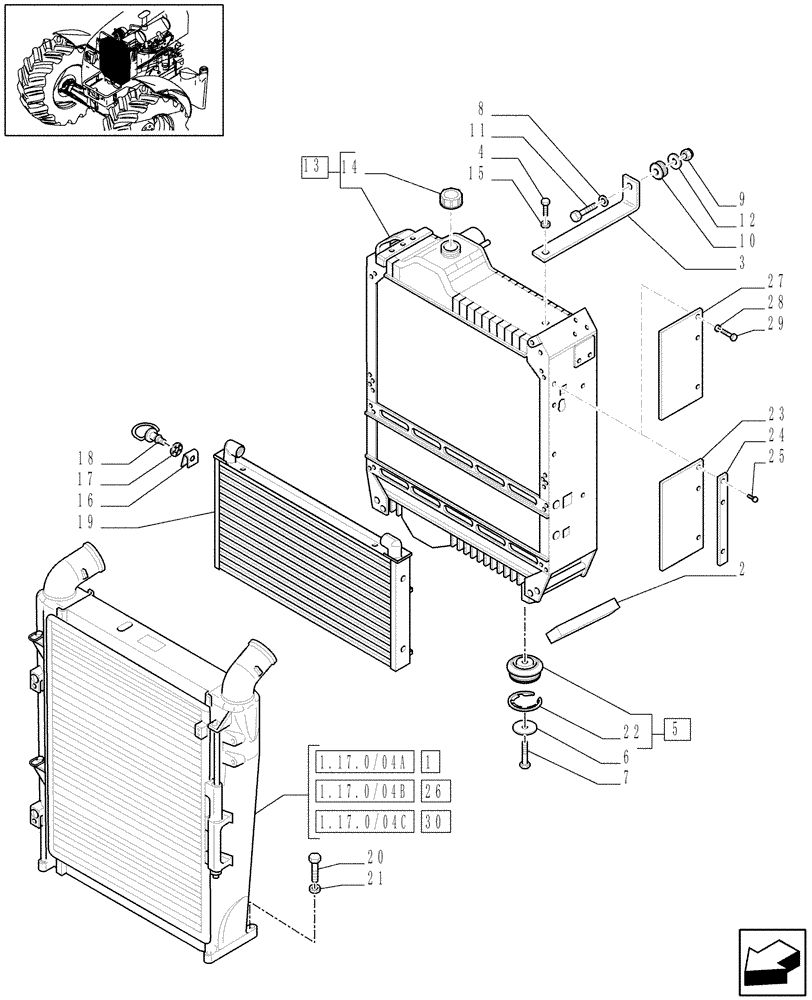

Запчасти Case IH MAXXUM 140 (1.17.0/05) - AIR CONDITIONING - RADIATOR, COOLING SYSTEM & RELATED PARTS - D5790 (VAR.330641) (02) - ENGINE EQUIPMENT

1

87726038

INTERCOOLER

, Serial Range: -C6266

1шт.

2

82030145

FOAM INSULATION

2шт.

3

82027541

BRACKET

1шт.

4

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

5

82023389

ISOLATOR,67mm OD x 35.5mm L

2шт.

6

5102702

WASHER,10.5mm ID x 45mm OD x 3mm Thk

2шт.

7

9602206

SCREW,Hex, M10 x 1.25 x 50mm, Cl 8.8

2шт.

8

85700654

WASHER,10.5mm ID x 20mm OD x 2.5mm Thk

1шт.

9

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

1шт.

10

82009429

ISOLATOR

1шт.

11

16040821

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

1шт.

12

83904166

WASHER,10.5mm ID x 30mm OD x 4mm Thk

1шт.

13

87737092

RADIATOR

5 Row

1шт.

MAXXUM 125

1шт.

13

87737094

RADIATOR

6 Row

1шт.

MAXXUM 140

1шт.

14

87306788

RADIATOR CAP

1шт.

15

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

1шт.

16

82004582

CLIP,Square, 25mm

1шт.

17

82004583

RETAINER,6.3mm ID x 12.5mm OD x 0.5mm Thk

1шт.

18

82005454

FASTENER

1шт.

19

87575383

OIL COOLER

1шт.

20

16044121

BOLT,Hex, M8 x 45mm, Cl 8.8

4шт.

21

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

22

82033528

SNAP RING,55mm ID

1шт.

23

87726041

SEAL

, Serial Range: -C6571

2шт.

24

87726042

RETAINING PLATE

, Serial Range: -C6571

2шт.

25

82894824

RIVET

, Serial Range: -C6571

6шт.

26

84158367

INTERCOOLER

, Serial Range: D6266-C6571

1шт.

27

84216346

SEAL

, Start Serial: D6571

2шт.

28

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

, Start Serial: D6571

6шт.

29

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

, Start Serial: D6571

6шт.

30

84214439

INTERCOOLER

, Start Serial: D6571

1шт.
