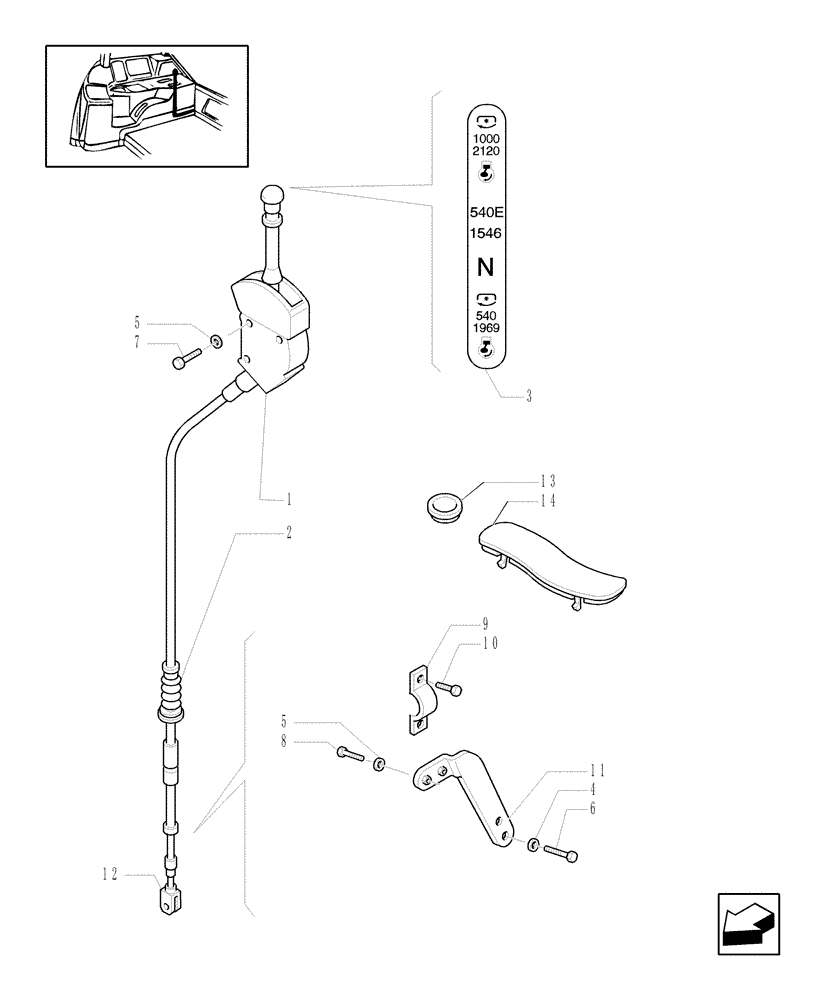

Запчасти Case IH MAXXUM 140 (1.96.3/01[01]) - POWER TAKE-OFF 540/750/1000 RPM - PTO CONTROL - C5805 (10) - OPERATORS PLATFORM/CAB

1

87341140

CONTROL

Incl. 2, 12

1шт.

2

82006917

GROMMET,7.8mm ID x 34mm OD, Rubber, Black

1шт.

3

82031064

DECAL

1шт.

4

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

5

12035670

LOCK WASHER

D=6

4шт.

6

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

7

10903724

BOLT,M6 x 55, 8.8

3шт.

8

10902824

BOLT,Hex, M6 x 30mm, Cl 8.8

1шт.

9

82026579

CLAMP,44.4mm L x 16mm W

1шт.

10

14305224

HEX SOC SCREW,M6 x 16mm, Cl 8.8, Full Thd

2шт.

11

87341149

BRACKET

1шт.

12

82026162

END

1шт.

13

81862738

PLUG,M38 x 28 x 5mm

28MM

1шт.

14

82030105

PLUG,127mm ID

1шт.

14

82030104

PLUG,140mm ID

VAR. 330800

1шт.
