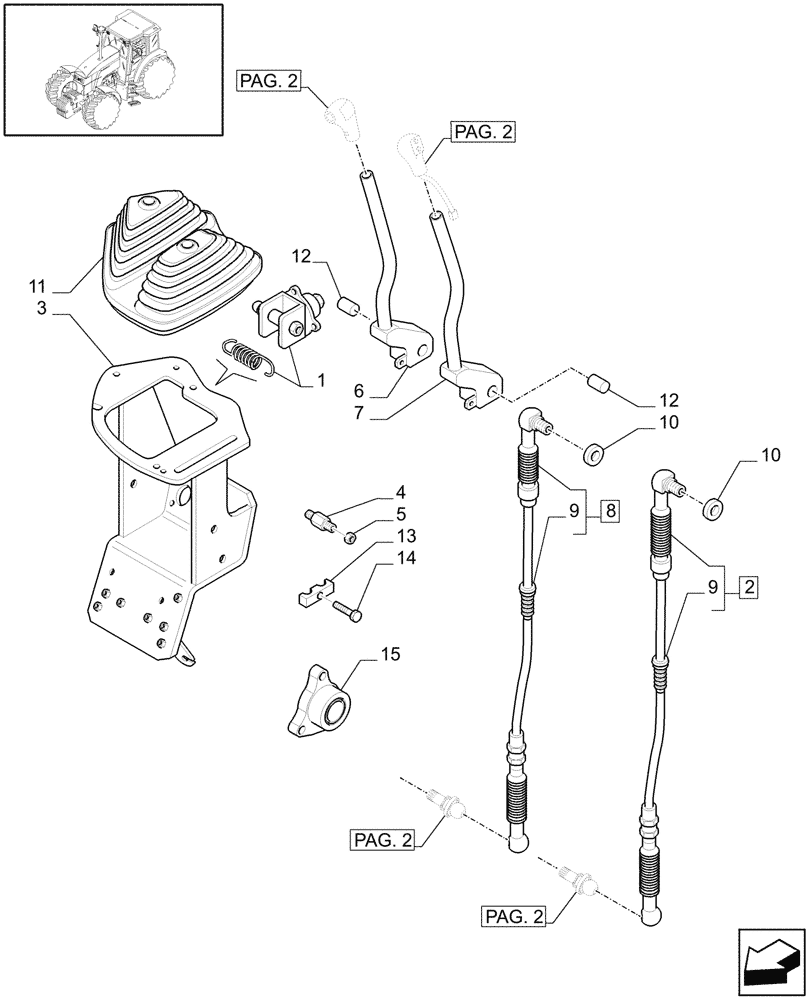

Запчасти Case IH MAXXUM 140 (1.96.0[01]) - GEARSHIFT CONTROLS FOR TRANSMISSION 12X12 OR 24X24 (10) - OPERATORS PLATFORM/CAB

1

87542810

KIT

Fork and Spring

1шт.

2

82036116

CABLE,2220mm L

Range Control, Black, 2220MM

1шт.

2

82036118

CABLE,2420mm L

Main Trans., Red, 2420MM

1шт.

3

82037012

SUPPORT

1шт.

4

82025694

SPACER,M8 x 1.25 x 67mm

3шт.

5

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

3шт.

6

82036290

LEVER

Range Selection

1шт.

7

82036112

LEVER

Speed Selection

1шт.

8

82036115

CABLE,2380mm L

Range Control, Black, 2380MM

1шт.

8

82036117

CABLE,2380mm L

Main Trans., Red, 2380MM

1шт.

9

82006917

GROMMET,7.8mm ID x 34mm OD, Rubber, Black

4шт.

10

83963081

LOCK WASHER,Serr, 8.20mm ID x 14mm OD

2шт.

10

10615779

LOCK WASHER,Ext Tooth, M10

2шт.

11

82036999

BELLOWS

1шт.

12

87751838

BUSHING

2шт.

13

82036430

CLAMP

1шт.

14

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

1шт.

15

87751837

HOLDER

1шт.
