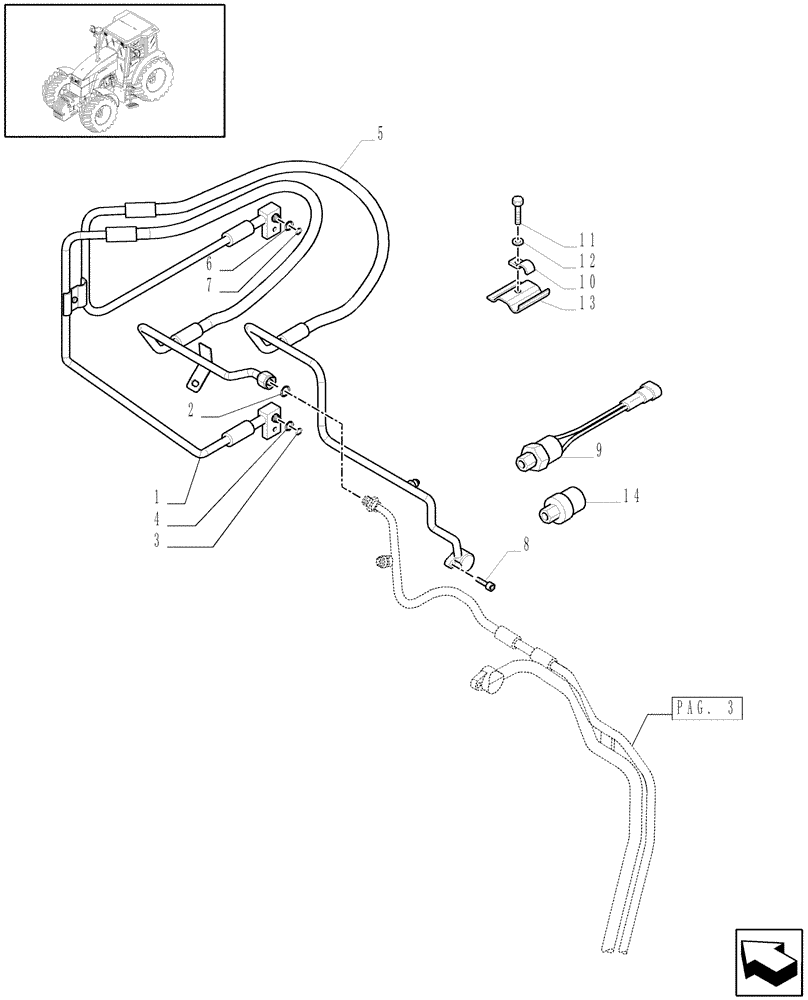

Запчасти Case IH MAXXUM 140 (1.94.3/05[04A]) - AIR CONDITIONING - D5549 - C6663 (VAR.330641) (10) - OPERATORS PLATFORM/CAB

1

87641058

A/C HOSE

Incl.2-4

1шт.

2

82000793

O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro

1шт.

3

10318883

O-RING,8.1mm ID x 1.6mm Width

1шт.

4

82007847

O-RING,1.8mm Thk x 6.7mm ID

2шт.

5

87699665

PIPE

Incl.6-7

1шт.

6

10319183

O-RING,13.1mm ID x 1.6mm Width

1шт.

7

14450683

O-RING,10.8mm ID x 2.4mm Width

1шт.

8

14306321

HEX SOC SCREW,M8 x 20mm, Cl 8.8

2шт.

9

87305163

SWITCH, A/C HIGH PRE

High Pressure, Serial Range: -C5854

1шт.

10

10441490

COLLAR,14mm, Coat, 7mm Bolt Hole, P Type

1шт.

11

14303021

SCREW,M4 x 12mm, Cl 8.8, Full Thd

1шт.

12

10615279

LOCK WASHER,M4, Serr

1шт.

13

87653304

BRACKET

1шт.

14

87699591

SWITCH ASSY

, Serial Range: D5854-C5942

1шт.

14

87000227

SWITCH, A/C HIGH PRE

, Start Serial: D5942

1шт.
