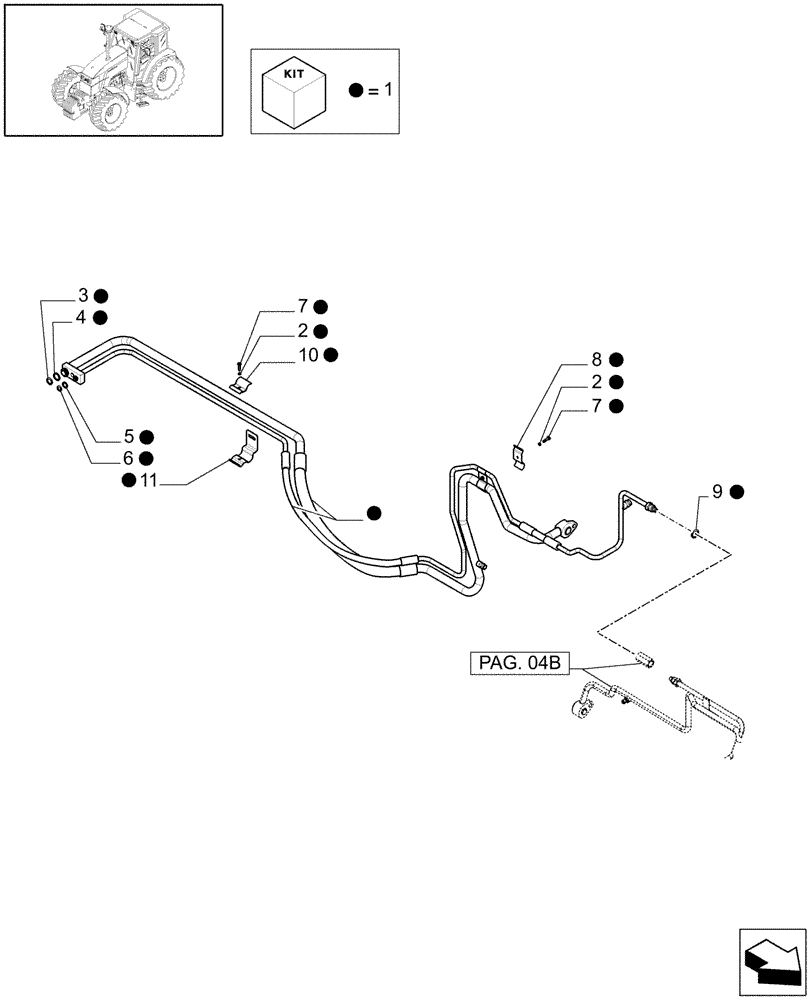

Запчасти Case IH MAXXUM 140 (1.94.3/05[03B]) - AIR CONDITIONING - D7156 (VAR.330641) (10) - OPERATORS PLATFORM/CAB

1

84401156

PIPE

1шт.

2

10615279

LOCK WASHER,M4, Serr

2шт.

3

82007848

O-RING,2.4mm Thk x 13.4mm ID

1шт.

4

10319983

O-RING,1.6mm Thk x 16.1mm ID

1шт.

5

10318883

O-RING,8.1mm ID x 1.6mm Width

1шт.

6

82007847

O-RING,1.8mm Thk x 6.7mm ID

1шт.

7

14303021

SCREW,M4 x 12mm, Cl 8.8, Full Thd

2шт.

8

84418846

BRACKET

1шт.

9

82000793

O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro

1шт.

10

84233864

BRACKET

1шт.

11

84233865

FLEXIBLE HOSE

1шт.
