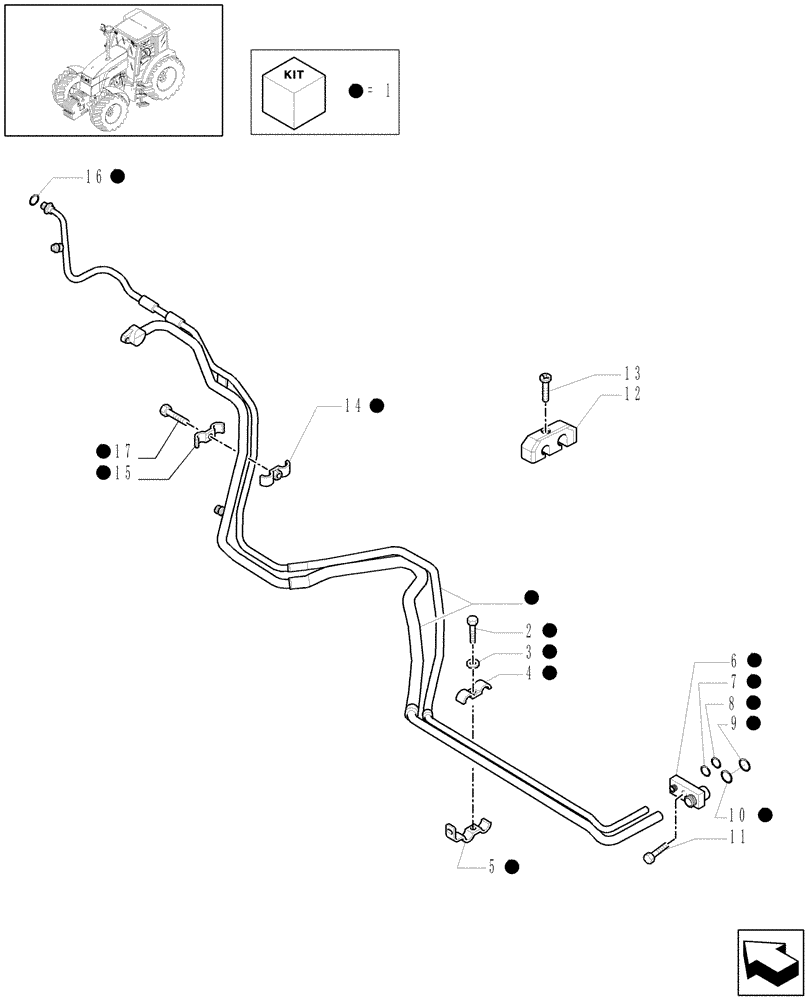

Запчасти Case IH MAXXUM 140 (1.94.3/05[03]) - AIR CONDITIONING - C6663 (VAR.330641) (10) - OPERATORS PLATFORM/CAB

1

87586707

PIPE

1шт.

2

14303021

SCREW,M4 x 12mm, Cl 8.8, Full Thd

1шт.

3

10615279

LOCK WASHER,M4, Serr

1шт.

4

87302953

CLAMP,4.5mm HD

1шт.

5

87302954

BRACKET

1шт.

6

82035724

FITTING

1шт.

7

10318883

O-RING,8.1mm ID x 1.6mm Width

1шт.

8

82007847

O-RING,1.8mm Thk x 6.7mm ID

1шт.

9

82007848

O-RING,2.4mm Thk x 13.4mm ID

1шт.

10

10319983

O-RING,1.6mm Thk x 16.1mm ID

1шт.

11

14306424

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

12

87389699

CLAMP

1шт.

13

84007540

SCREW,Pozidrive, Pan HD, M6 x 25mm, Cl 4.8

1шт.

14

82033450

CLAMP

1шт.

15

82036409

CLAMP BRACKET

1шт.

16

82000793

O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro

5/16" x 0.07

1шт.

17

10978024

BOLT,Hex, M5 x 20mm, Cl 8.8, Full Thd

1шт.
