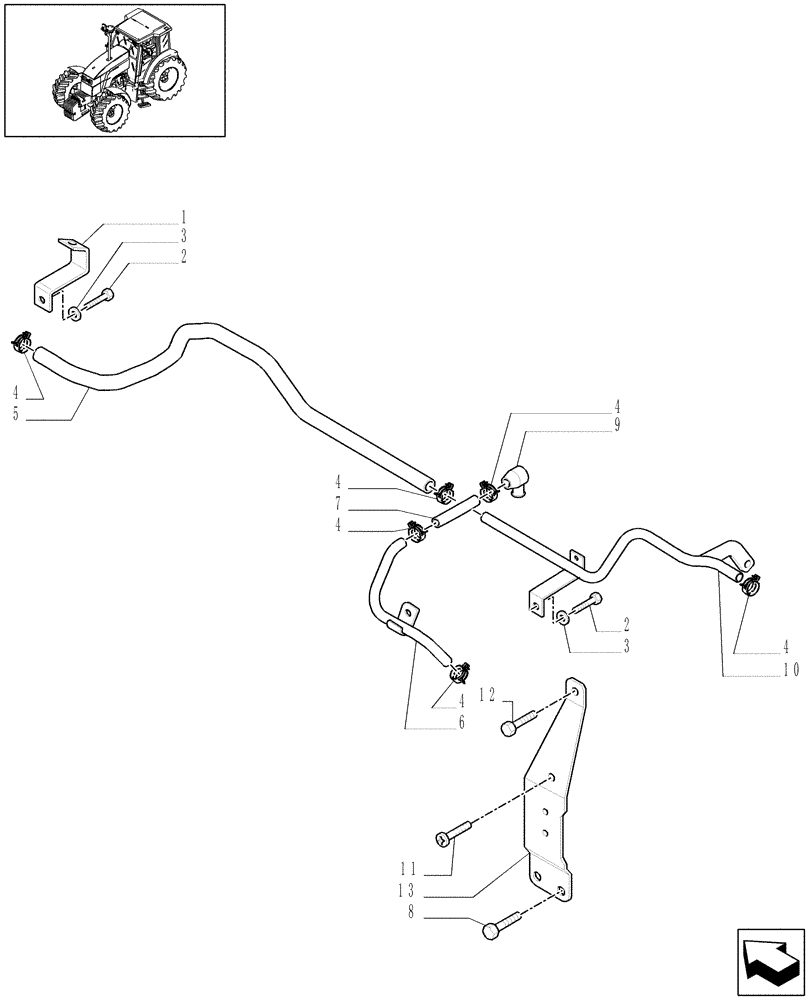

Запчасти Case IH MAXXUM 140 (1.94.3/05[01]) - AIR CONDITIONING (VAR.330641) (10) - OPERATORS PLATFORM/CAB

1

82024370

BRACKET

1шт.

2

11112124

SCREW,Hex, M12 x 20mm, Cl 8.8, Full Thd

2шт.

2

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

2шт.

3

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

2шт.

3

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

4шт.

4

82019905

HOSE CLAMP,22 - 26mm X 12mm

6шт.

5

82029250

RADIATOR HOSE,15.25 mm ID x 725.00 mm

1шт.

6

82028294

TUBE

1шт.

7

87302739

FLEXIBLE HOSE,15.25mm ID x 117mm L

1шт.

8

82025437

BOLT,Hex, M14 x 2 x 25mm, Cl 8.8

M14x2x25

2шт.

9

87302738

ADAPTER

1шт.

10

87305406

TUBE

1шт.

11

81853129

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 4.8, Full Thd

3шт.

12

16287121

BOLT,Hex, M8 x 20mm, Cl 8.8, Full Thd

1шт.

13

87395977

BRACKET

1шт.
