(1.93.3/ S[01]) - DELUXE SEAT WITH MECHANICAL SUSPENSION, BELT AND SWITCH - BREAKDOWN - D7342

Запчасти Case IH MAXXUM 140 (1.93.3/ S[01]) - DELUXE SEAT WITH MECHANICAL SUSPENSION, BELT AND SWITCH - BREAKDOWN - D7342 (10) - OPERATORS PLATFORM/CAB

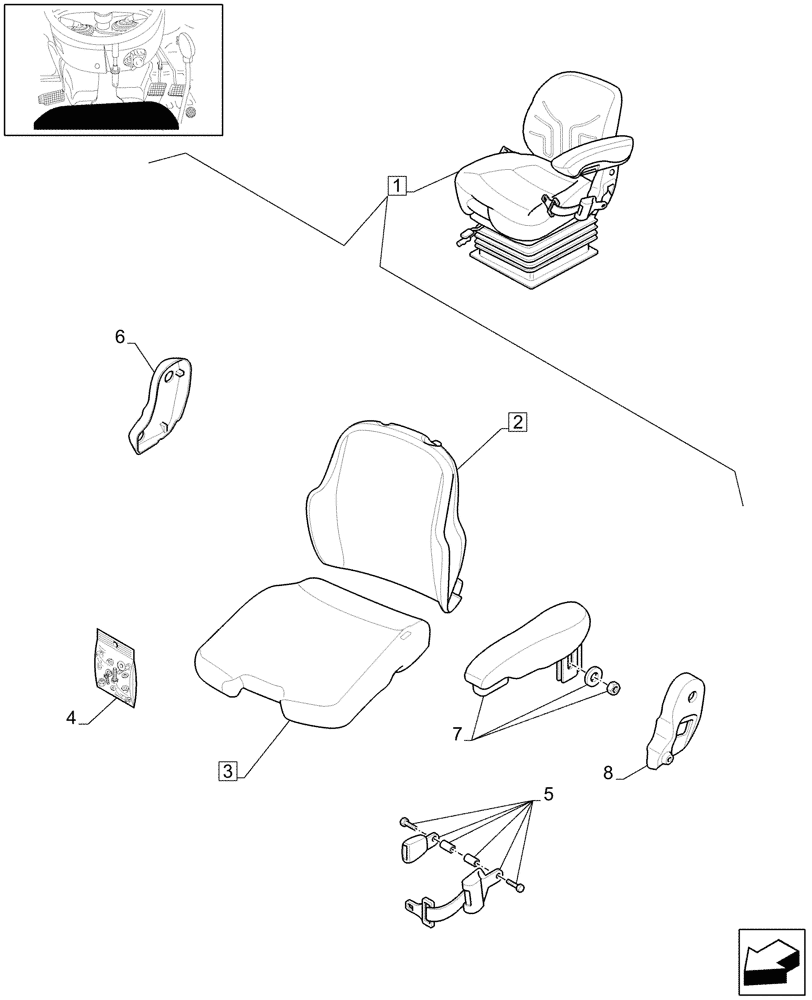

Схема запчастей Case IH MAXXUM 140 - (1.93.3/ S[01]) - DELUXE SEAT WITH MECHANICAL SUSPENSION, BELT AND SWITCH - BREAKDOWN - D7342 (10) - OPERATORS PLATFORM/CAB
8
1
3
6
4
7
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47488675

DRIVER SEAT

1шт.

2

84253107

CUSHION

ASSY, Incl 4

1шт.

3

84172428

SEAT CUSHION

ASSY, Incl 4

1шт.

4

84191200

SET OF PARTS

SMALL PARTS CUSHION

1шт.

5

82034981

SAFETY BELT ,50.8mm W x 1280mm L

1шт.

6

84487894

ARMREST

1шт.

7

84486613

ARMREST

1шт.

8

71491405

COVER

1шт.

9

84171458

COVER

1шт.
