(1.15.1/02) - AIR CLEANER WITH PRE-CLEANER "SPIN TUBE" FOR ROOF WITH LOW PROFILE - SILENCER (MUFFLER) (VAR.332189-333189)

Запчасти Case IH MAXXUM 140 (1.15.1/02) - AIR CLEANER WITH PRE-CLEANER "SPIN TUBE" FOR ROOF WITH LOW PROFILE - SILENCER (MUFFLER) (VAR.332189-333189) (02) - ENGINE EQUIPMENT

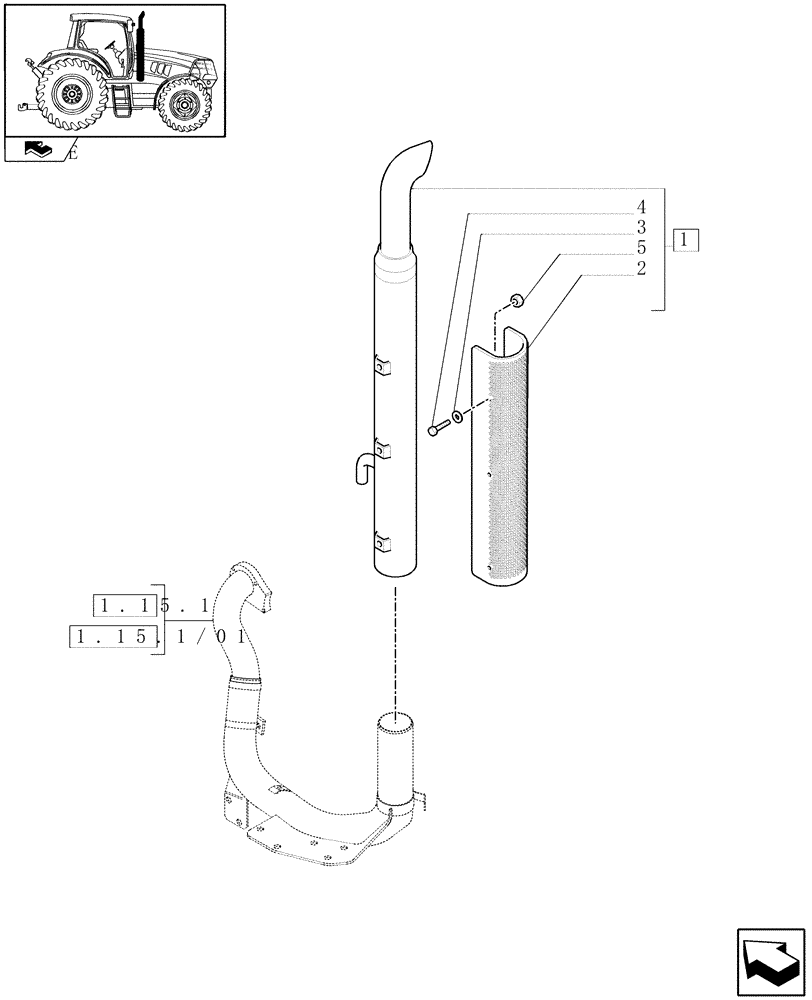

Схема запчастей Case IH MAXXUM 140 - (1.15.1/02) - AIR CLEANER WITH PRE-CLEANER "SPIN TUBE" FOR ROOF WITH LOW PROFILE - SILENCER (MUFFLER) (VAR.332189-333189) (02) - ENGINE EQUIPMENT
1
5
1.15.1
1.15.1/01
3
home
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87324756

MUFFLER

ASSY, W/Venturi

1шт.

Maxxum 110, Maxxum 120, Maxxum 130

1шт.

1

87324759

MUFFLER

ASSY, W/Venturi

1шт.

Maxxum 115, Maxxum 125, Maxxum 140

1шт.

2

82035359

SHIELD

1шт.

3

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

6шт.

4

14759521

SCREW,M6 x 14mm

M6 x 14

6шт.

5

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

6шт.

Выбрано товаров: 8
