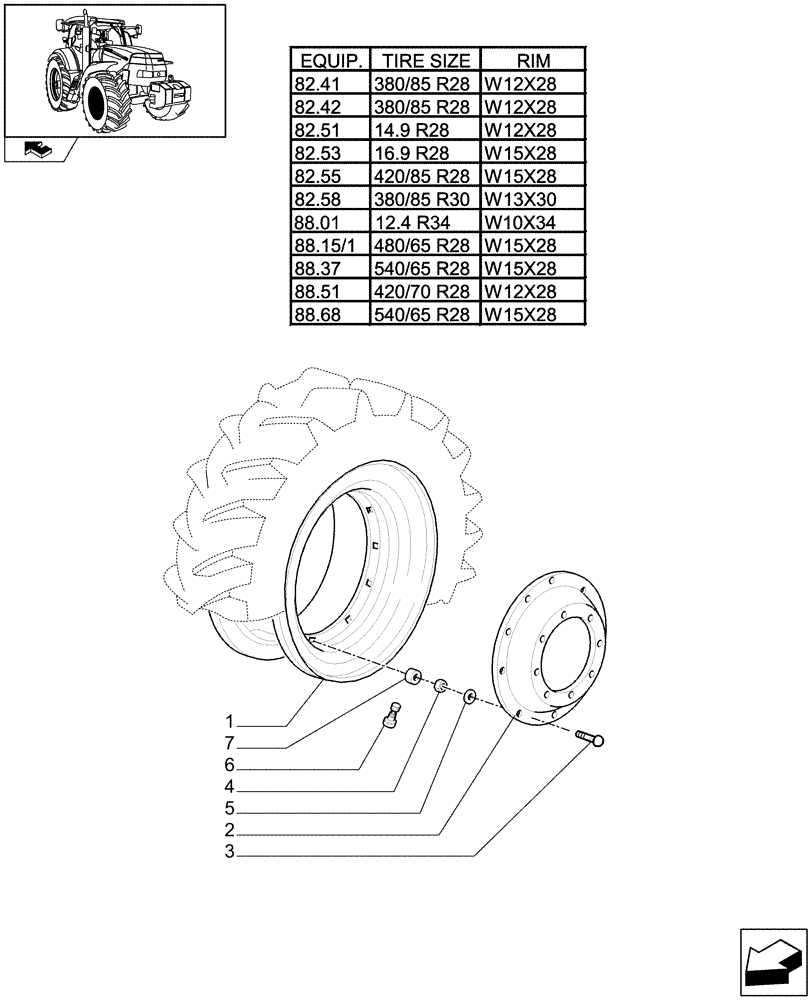

Запчасти Case IH MAXXUM 140 (82.00[08]) - FRONT WHEELS (11) - WHEELS/TRACKS

1

82031123

RIM,W12X28, 305mm W, 12 Bolts, Case Silver

W12 x 28

2шт.

1

82031129

RIM,DW12X30, 304.8mm W, 12 Bolts, Case Silver

W13 x 30

2шт.

1

82031125

RIM,W15LX28, 381mm W, 12 Bolts, Case Silver

W15 x 28

2шт.

1

82037254

RIM,DW10X34, 254mm W, 8 Bolts, Case Silver

W10 x 34

2шт.

2

82031107

WHEEL DISC,606.2mm Dia, 12 Bolts, CASE Silver

28"

2шт.

Equip.82.41, 8242, 82.51, 82.53, 82.55, 82.58, 88.15/1, 88.37, 88.51, 88.68

1шт.

2

82031109

WHEEL DISC,685.8mm Dia (405mm Dia), 12 Bolts, CASE Silver

2шт.

Equip. 88.01

1шт.

3

82022305

BOLT,M16 x 1.5 x 58mm, Class 10.9

24шт.

4

12164124

NUT,M16 x 1.5, Cl 8

24шт.

5

82011967

WASHER,16.8mm ID x 28.4mm OD x 3.9mm Thk

24шт.

6

87323751

PNEUMATIC VALVE

2шт.

7

82031090

SPACER,16.5mm ID x 31mm OD x 15mm L

24шт.
