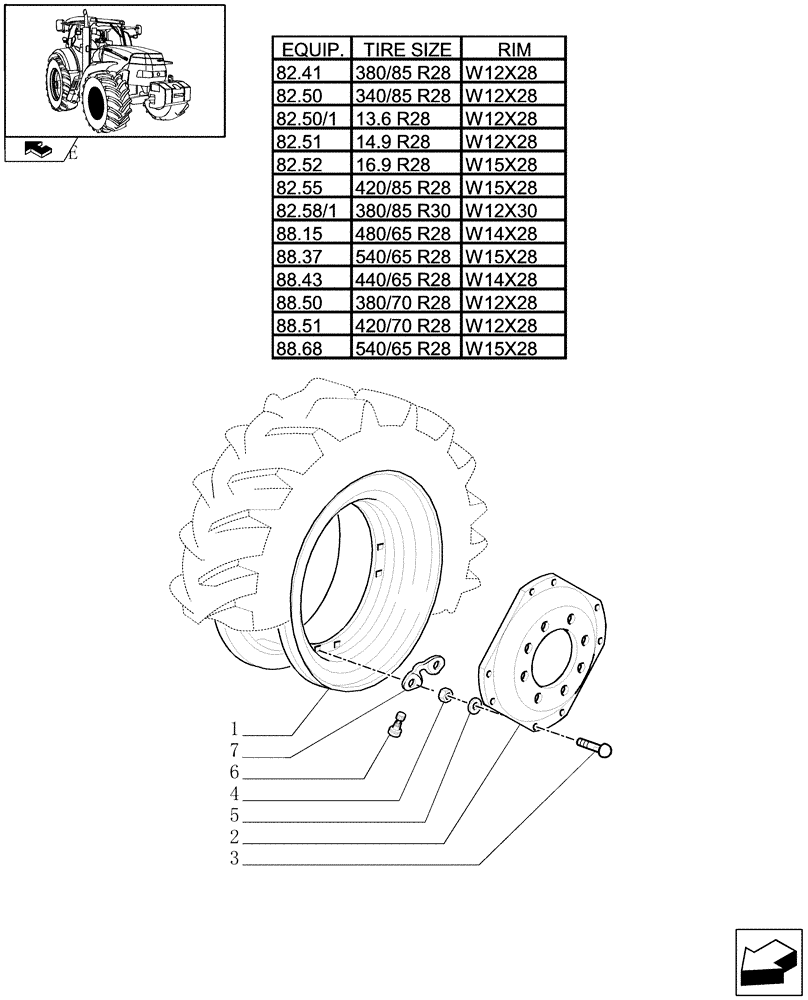

Запчасти Case IH MAXXUM 140 (82.00[05]) - FRONT WHEELS (11) - WHEELS/TRACKS

1

82031113

RIM,W12X28, 8 Bolts, CASE Silver

W12 x 28

2шт.

1

82031119

RIM,DW12X30, 8 Bolts, CASE Silver

W12 x 30

2шт.

1

82031115

RIM,W14X28, 8 Bolts, CASE Silver

W14 x 28

2шт.

1

82031117

RIM,W15X28, 8 Bolts, CASE Silver

W15 x 28

2шт.

2

82031103

WHEEL DISC,606.2mm Dia, 8 Bolts, CASE Silver

28"

2шт.

3

82022305

BOLT,M16 x 1.5 x 58mm, Class 10.9

16шт.

4

12164124

NUT,M16 x 1.5, Cl 8

16шт.

5

82011967

WASHER,16.8mm ID x 28.4mm OD x 3.9mm Thk

16шт.

6

87323751

PNEUMATIC VALVE

2шт.

7

82022302

SPACER

8шт.
