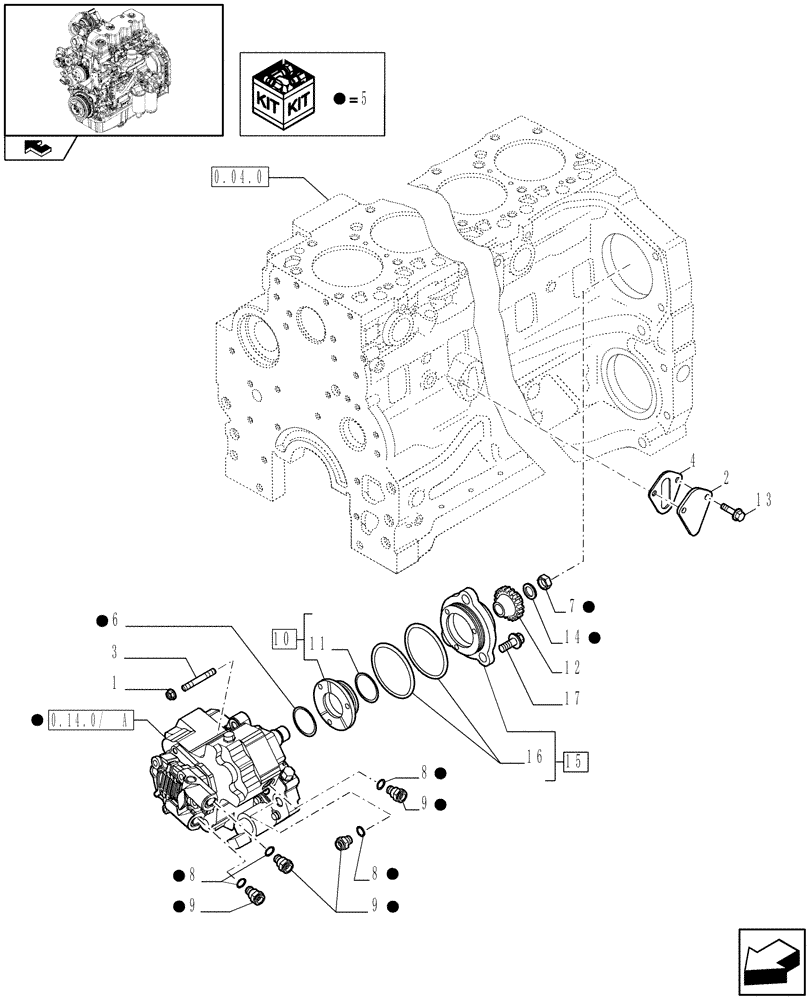

Запчасти Case IH MAXXUM 140 (0.14.0[01]) - INJECTION PUMP (STD + VAR.330003-332115) (01) - ENGINE

1

4899003

FLANGE NUT,M8 x 1.25

3шт.

2

4896952

COVER

1шт.

3

4892831

STUD

M8 x 1.25 x 50

3шт.

4

4890700

GASKET,1.21mm Thk

1шт.

5

4898921

FUEL INJECTION PUMP

ASSY

1шт.

5

4898921R

REMAN-INJECTION PUMP

Maxxum 110, Use w/Eng. P/N 87327444(boosted) Tier 3, Maxxum 115, Use w/Eng. P/N

1шт.

5

4898921C

CORE-INJECTION PUMP

Return Number

1шт.

*

87541994(boosted) Tier 3, Maxxum 120, Use w/ Eng. P/N 87327441(boosted) Tier 3

1шт.

*

Maxxum 125, Use w/Eng. P/N 87318895(boosted) Tier 3, Maxxum 130, Use w/Eng. P/N

1шт.

*

87520678(boosted) Tier 3, Maxxum 140, Use w/Eng. P/N 87318893(boosted) Tier 3

1шт.

*

N.A. Only

1шт.

6

4890088

O-RING,44mm ID x 3mm Width

1шт.

7

4890634

NUT,Hex, M18 x 1.5, RH

M18 x 1.5

1шт.

8

4891385

SEALING WASHER,12.2mm ID x 15.4mm OD x 1.5mm Thk

4шт.

9

4893962

QUICK MALE COUPLING,M12 x 1.5

4шт.

10

2830564

SPACER

ASSY

1шт.

11

17290581

O-RING,72.62mm ID x 2.34mm Width

2.34 x 72.62

1шт.

12

4896138

DRIVEN GEAR,27T

1шт.

13

4899146

SCREW,Hex Flg, M8 x 1.25 x 20

2шт.

14

4890635

SPRING WASHER

1шт.

15

2830598

BEARING COVER

ASSY

1шт.

16

4897111

O-RING,0.139" Thk x 4.719" ID

2шт.

17

4899063

SCREW,Hex Flg, M8 x 1.25 x 30

3шт.
