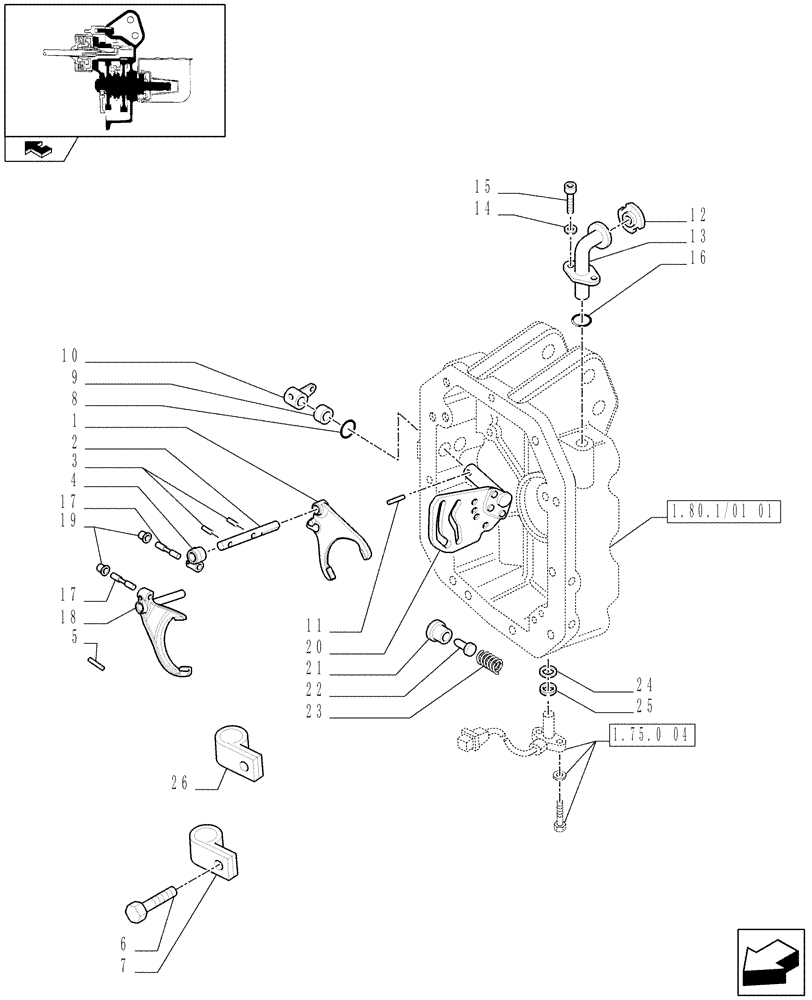

Запчасти Case IH MAXXUM 140 (1.80.1/01[03]) - POWER TAKE-OFF 540/750/1000 RPM - OIL FILLER PIPE AND ENGAGEMENT (07) - HYDRAULIC SYSTEM

1

87580868

SHIFTER FORK,PTO, 540-750 RPM

1шт.

2

87578130

ROD,16mm OD x 155mm L

1шт.

3

13910370

ROLL PIN,6mm OD x 30mm L

2шт.

4

87578134

LEVER

1шт.

5

13909870

PIN,6mm OD x 20mm L

2шт.

6

16042924

SCREW,Hex, M8 x 1.25 x 10mm, Cl 8.8, Full Thd

1шт.

7

10449890

CLAMP,6mm, Coat, 9mm Bolt Hole, P Type

1шт.

8

14457581

O-RING,0.799" ID x 0.103" Width

1шт.

9

594832

RING,20.1mm ID x 24.75-24.8mm OD x 6mm Thk

1шт.

10

87578133

CONTROL LEVER

1шт.

11

14607270

LOCK PIN,M8 x 40, Slotted

1шт.

12

82005372

FILLER CAP,Male, Vented_No Lockable

1шт.

13

5198124

TUBE

1шт.

14

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

15

14306321

HEX SOC SCREW,M8 x 20mm, Cl 8.8

2шт.

16

14458281

O-RING,1.237" ID x 1.443" OD x 0.103"

1шт.

17

5198711

PIN,10mm OD x 35mm L

2шт.

18

87578125

SHIFTER FORK,PTO, 1000 RPM

1шт.

19

87580517

BUSHING,10mm ID x 21mm OD x 9.6mm L

2шт.

20

87728054

SELECTOR

1шт.

21

5193100

PLUG,Hex, M14 x 1.5

1шт.

22

5193099

PAWL,8.5mm D x 22.5mm L

1шт.

23

5128251

SPRING,Compression, 8.5mm OD x 20mm L

1шт.

24

5146468

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

25

47132789

SEAL,15.5mm ID x 19mm OD x 3mm Thk

1шт.

26

85700737

CLAMP,6.86mm ID, 14.99mm Bolt Hole, J Type

1шт.
