(1.40.6/04) - (CL.4) SUSPENDED FRONT AXLE W/MULTI-PLATE DIFF. LOCK, ST. SENSOR AND BRAKES - LINK (VAR.330430)

Запчасти Case IH MAXXUM 140 (1.40.6/04) - (CL.4) SUSPENDED FRONT AXLE W/MULTI-PLATE DIFF. LOCK, ST. SENSOR AND BRAKES - LINK (VAR.330430) (04) - FRONT AXLE & STEERING

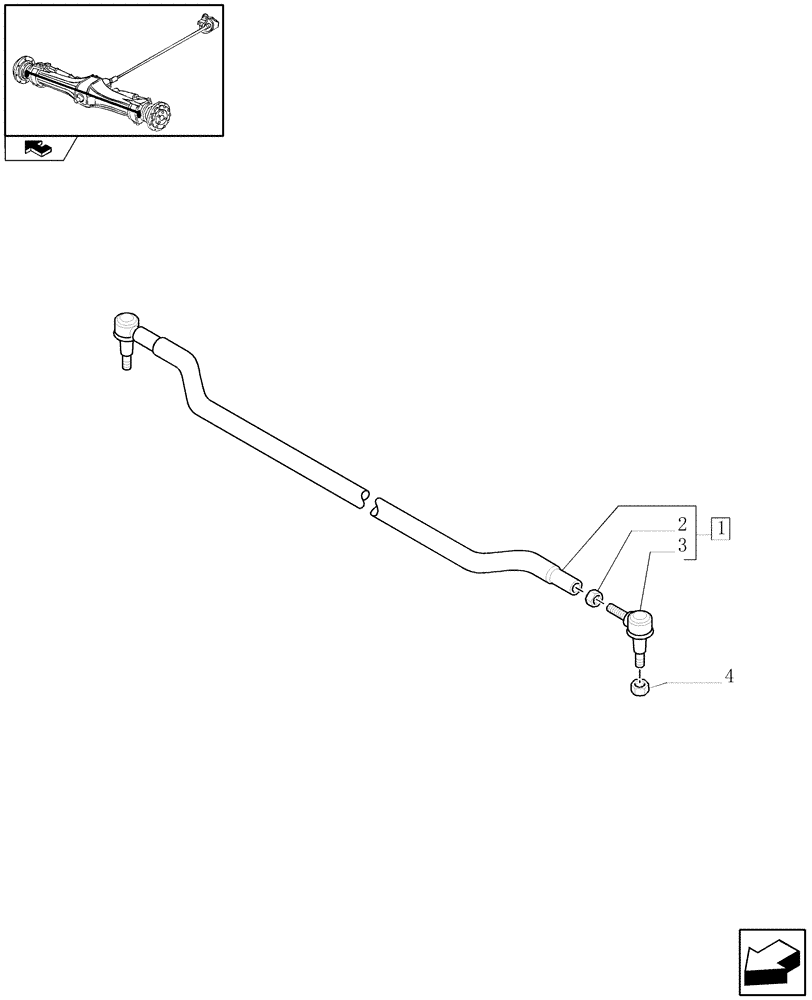

Схема запчастей Case IH MAXXUM 140 - (1.40.6/04) - (CL.4) SUSPENDED FRONT AXLE W/MULTI-PLATE DIFF. LOCK, ST. SENSOR AND BRAKES - LINK (VAR.330430) (04) - FRONT AXLE & STEERING
2
4
3
home
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87332622

TRACK ROD ASSY

1шт.

2

10726911

THIN NUT,Thin, M24 x 1.5 x 10.00mm High, ZND

1шт.

3

87542553

BALL JOINT

1шт.

4

12576014

NUT,Prevailing Torque, M18, 1.5mm Pitch, 16.00mm High, Cl 04, DAC

2шт.

Выбрано товаров: 4
