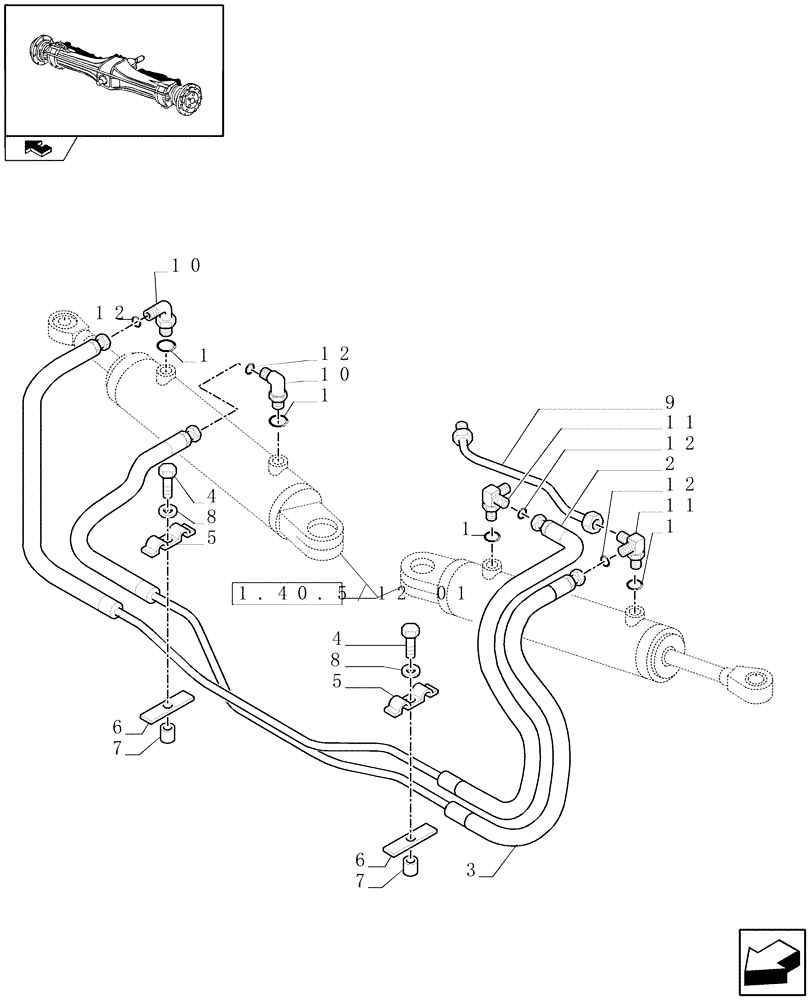

Запчасти Case IH MAXXUM 140 (1.40.5/12[02]) - (CL.4) SUSPENDED FRONT AXLE W/MULTI-PLATE DIFF. LOCK AND ST. SENSOR - CYLINDERS PIPES (VAR.330429) (04) - FRONT AXLE & STEERING

1

14437785

O-RING,11.3mm ID x 2.4mm

4шт.

2

47136888

FLEXIBLE HOSE,10.00mm OD x 1450.00mm

RH

1шт.

3

47136898

FLEXIBLE HOSE,10.00mm OD x 1450.00mm

LH

1шт.

4

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

2шт.

5

5188504

BRACKET

2шт.

6

5188503

BRACKET

2шт.

7

13605811

SPACER,8.50mm ID x 18.00mm OD x 10.00mm, STL, ZND

2шт.

8

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

9

87517475

HYD TUBE,10.00mm OD x 228.00mm, 50.00mm L

1шт.

10

47127165

90 ELBOW

Incl. 1, 12

2шт.

11

5188443

90 ELBOW

Incl. 1, 12

2шт.

12

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

4шт.
