Запчасти Case IH MAXXUM 140 (1.40.3/12) - (CL.4) FRONT AXLE W/MULTI-PLATE DIFF. LOCK AND STEERING SENSOR - HYDRAULIC STEERING CYLINDER (VAR.330408) (04) - FRONT AXLE & STEERING

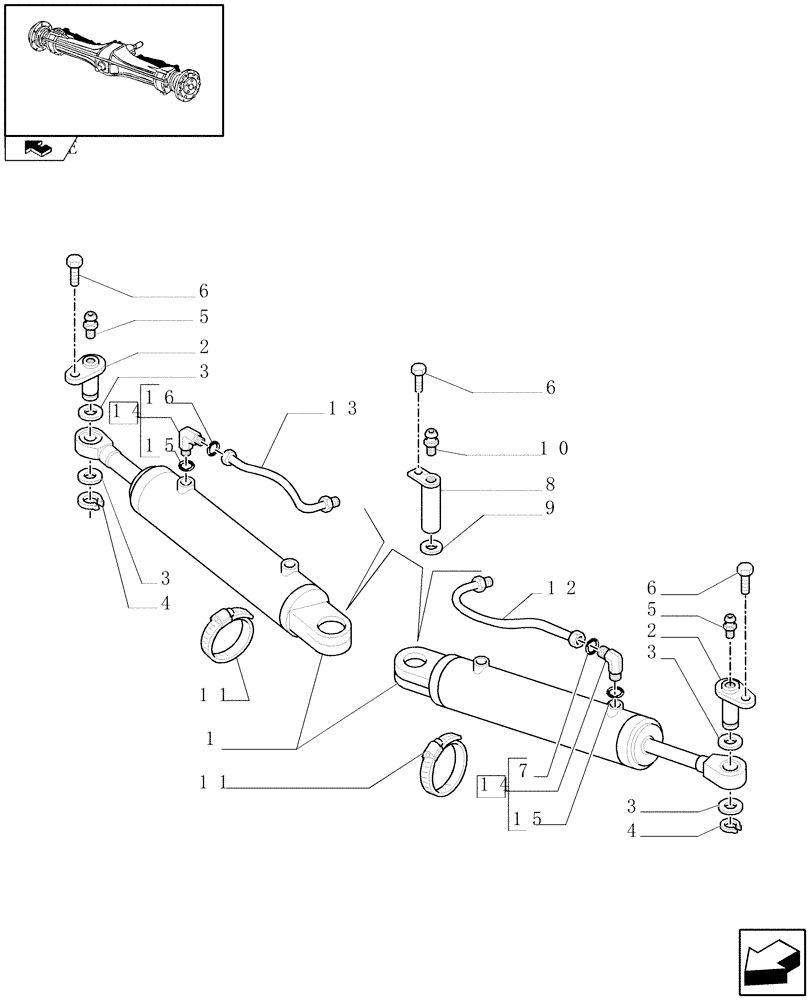

Схема запчастей Case IH MAXXUM 140 - (1.40.3/12) - (CL.4) FRONT AXLE W/MULTI-PLATE DIFF. LOCK AND STEERING SENSOR - HYDRAULIC STEERING CYLINDER (VAR.330408) (04) - FRONT AXLE & STEERING
10
9
3
11
14
15
5
6
8
16
6
7
2
6
home
2
12
14
1
3
5
4
3
4
11
15
3
13

Артикул

Название

Примечание

Количество

1

87546274

SERVO STEERING CYL

2шт.

2

5171707

PIN,24.97mm OD x 91mm L

2шт.

3

5111573

SPACER,25.5mm ID x 34mm OD x 5.9mm L

4шт.

4

11067376

SNAP RING,M25, Ext

2шт.

5

13406911

LUBE NIPPLE,Straight, 1/4"-28 x 0.54"

2шт.

6

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

7

14437785

O-RING,11.3mm ID x 2.4mm

2шт.

8

5198013

PIN,24.97mm OD x 100mm L

2шт.

9

5111576

SPACER,25.5mm ID x 34mm OD x 11mm L

2шт.

10

5120532

LUBE NIPPLE,Straight, M14 x 1.5 x 6.50mm

2шт.

11

13000990

COLLAR,60mm - 80mm, Worm Gear

2шт.

12

84233089

HYD TUBE,10.00mm OD x 276.00mm, 75.00mm L

LH

1шт.

13

87648149

HYD TUBE,255, 77 mm L

RH

1шт.

14

84233156

HYD TUBE,10.00mm OD x 276.00mm, 75.00mm L

2шт.

15

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

2шт.

Выбрано товаров: 15
