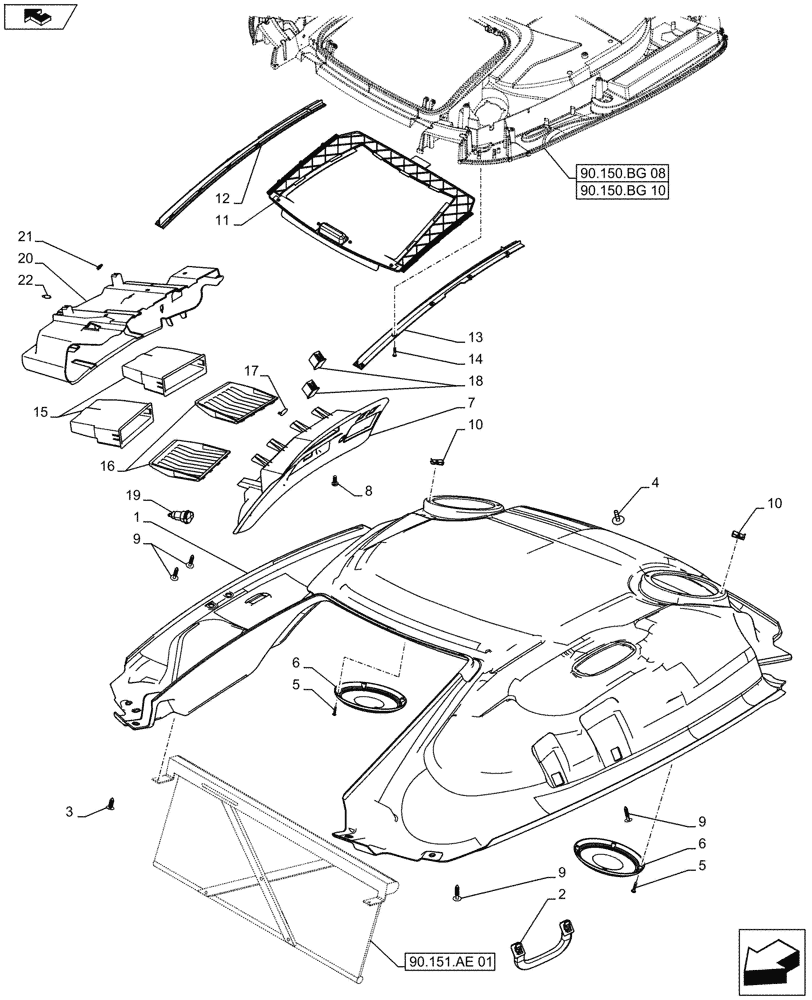

Запчасти Case IH MAXXUM 140 (90.160.AX[01A]) - VAR - 330515, 330520, 743816 + STD - CAB INTERIOR TRIM WITH SUN CURTAIN FOR ROOF WITH HIGH PROFILE - HEADLINER - D9018 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47365504

HEADLINER

1шт.

2

82035643

HANDLE

1шт.

3

81870039

FASTENER,M8 x 1.5 x 22mm

1шт.

4

82023482

ANCHOR,Button Hd, 8.25mm x 35.00mm

1шт.

5

15642707

SCREW,Pozidriv Pan Hd, M3.5 x 16mm

8шт.

6

82022875

GRILLE,185mm OD

2шт.

7

47388509

BEZEL

, Serial Range: -C7408

1шт.

7

47575526

CONSOLE

, Serial Range: D7408-C7410

1шт.

7

47778962

CONSOLE

, Start Serial: D7410

1шт.

8

15903904

SCREW,Pan Hd, M4.8 x 1.6 x 19mm

7шт.

9

82033699

PLASTIC PLUG,6.8mm D x 35mm L, Grey

4шт.

10

81872135

NUT,Retaining, M4.20

8шт.

11

87646569

TRIM

1шт.

Base Colour High Roof with Visibility Panel, VAR 330515, 330520, 743816

1шт.

12

87640268

GUIDE

RH

1шт.

Base Colour High Roof with Visibility Panel, VAR 330515, 330520, 743816

1шт.

13

87640267

GUIDE

LH

1шт.

Base Colour High Roof with Visibility Panel, VAR 330515, 330520, 743816

1шт.

14

82034113

SELF-TAP SCREW,Torx, Round HD, M5 x 3 x 25mm

10шт.

Base Colour High Roof with Visibility Panel, VAR 330515, 330520, 743816

1шт.

15

47364183

BOX

2шт.

16

47470835

INSERT

2шт.

17

47363750

PLUG,23.1mm OD

1шт.

18

82022763

PLUG

2шт.

19

84320279

CIGARETTE LIGHTER

1шт.

20

47378856

CAB STORAGE BOX

Incl 8 (Qty 3), 21, 22, Serial Range: -C7408

1шт.

Base Colour High Roof with Visibility Panel, VAR 330515, 330520, 743816

1шт.

20

47718243

BEZEL

Incl 8 (Qty 3), 21, 22, Start Serial: D7408

1шт.

Base Colour High Roof with Visibility Panel, VAR 330515, 330520, 743816

1шт.

21

14369071

SPRING NUT,4.8mm x 14.6mm x 4mm

7шт.

Base Colour High Roof with Visibility Panel, VAR 330515, 330520, 743816

1шт.

22

47378854

SPACER,5mm ID x 8mm OD x 7.5mm L

3шт.

Base Colour High Roof with Visibility Panel, VAR 330515, 330520, 743816

1шт.
