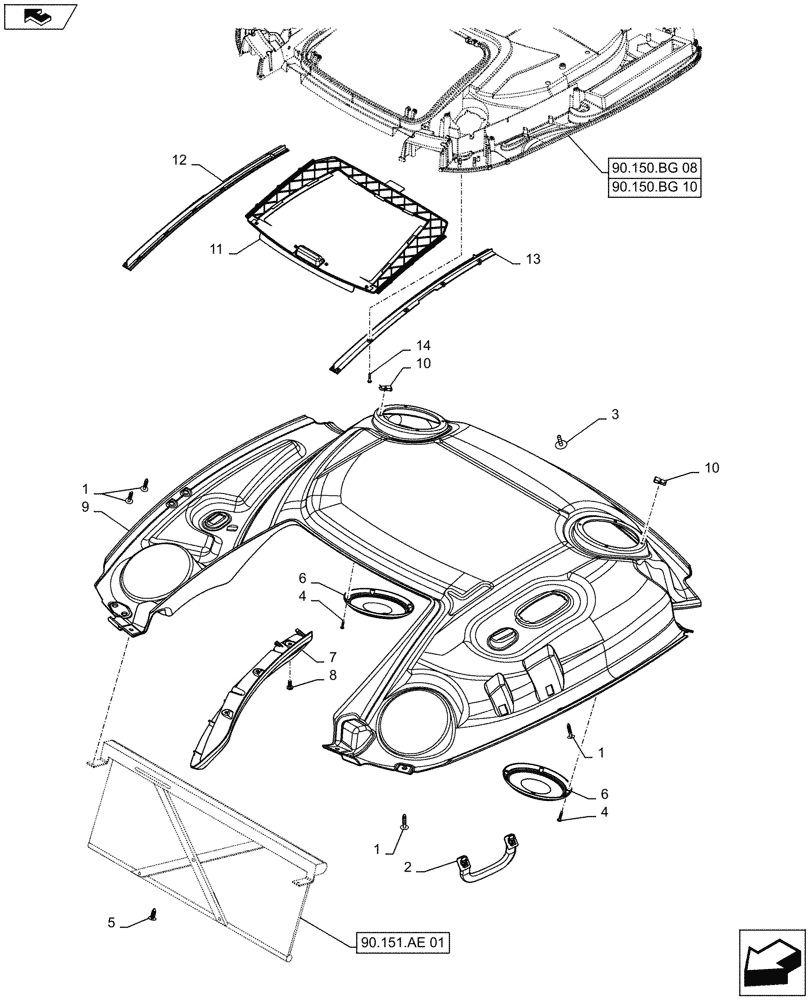

Запчасти Case IH MAXXUM 140 (90.160.AX[01]) - VAR - 330515, 330520, 743816 + STD - CAB INTERIOR TRIM WITH SUN CURTAIN FOR ROOF WITH HIGH PROFILE - HEADLINER - C9018 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

82033699

PLASTIC PLUG,6.8mm D x 35mm L, Grey

4шт.

2

84227380

HANDLE

1шт.

3

82023482

ANCHOR,Button Hd, 8.25mm x 35.00mm

1шт.

4

15642707

SCREW,Pozidriv Pan Hd, M3.5 x 16mm

8шт.

5

81870039

FASTENER,M8 x 1.5 x 22mm

1шт.

6

82022875

GRILLE,185mm OD

2шт.

7

87673408

CONSOLE

1шт.

8

81870066

SCREW,Torx, Pan HD, M6 x 12mm, Cl 8.8

3шт.

9

87521214

ROOF LINING

1шт.

10

81872135

NUT,Retaining, M4.20

8шт.

11

87640273

SUN VISOR

1шт.

Base Colour High Roof with Visibility Panel, VAR 330515, 330520, 743816

1шт.

12

87640268

GUIDE

RH

1шт.

Base Colour High Roof with Visibility Panel, VAR 330515, 330520, 743816

1шт.

13

87640267

GUIDE

LH

1шт.

Base Colour High Roof with Visibility Panel, VAR 330515, 330520, 743816

1шт.

14

82034113

SELF-TAP SCREW,Torx, Round HD, M5 x 3 x 25mm

10шт.

Base Colour High Roof with Visibility Panel, VAR 330515, 330520, 743816

1шт.
