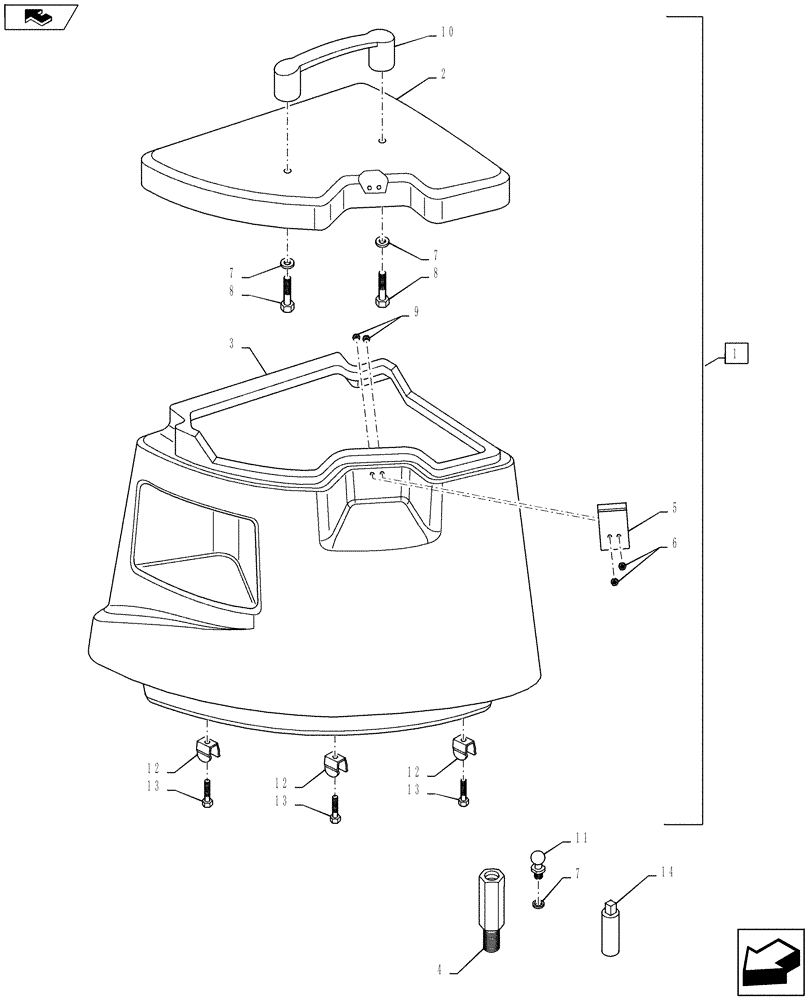

Запчасти Case IH MAXXUM 140 (90.160.AM[03]) - VAR - 330871 - REAR CORNER STORAGE BOX (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87704352

BOXED PANEL

Interior Storage, Incl 1 - 3, 5 - 9, 12 and 13

1шт.

2

82037020

TOP COVER

1шт.

3

82037021

BOXED PANEL

1шт.

4

82033873

SPACER,M8 x 1.25 x 33mm x 50.5mm, ZND

1шт.

4

82033874

SPACER,M8 x 1.25 x 26.5mm x 50.5mm, ZND

1шт.

5

82033918

LATCH

1шт.

6

13296111

SCREW,Phil Pan Hd, M3 x 10mm, Cl 5.8, Full Thd

4шт.

7

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

5шт.

8

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

9

16101711

NUT,M3, Cl 8

4шт.

10

82033904

HANDLE

1шт.

11

87301896

BALL STUD,M8 x 1.25 x 34.5mm

3шт.

12

87703467

SPRING CLIP,21.3mm L

3шт.

13

82880809

SCREW,Pan, M4 x 8mm, Gr 4.8

3шт.

14

87671655

CAP

1шт.
