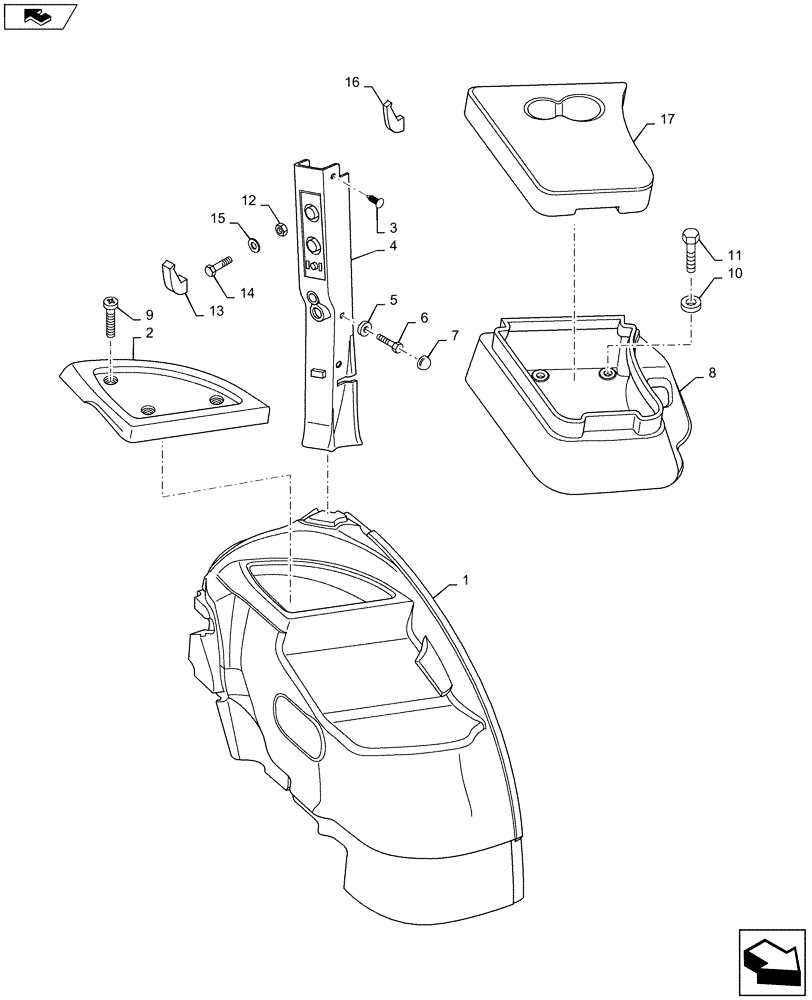

Запчасти Case IH MAXXUM 140 (90.160.AM[01]) - VAR - 330869, 330719 + STD - CONTROLS COVER - LH - C9014 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84242771

PADDING

STD Equipment

1шт.

1

84242772

SOFT TRIM

LH Front Storage Box, VAR 330869, 330719

1шт.

2

82027460

TRAY

1шт.

3

82023460

STUD,M7.85 x 19.50mm, Plastic

4шт.

4

84295536

PADDING

1шт.

5

87734153

SPACER,10.6mm ID x 36mm OD x 7.5mm L

2шт.

6

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

2шт.

7

82012814

CAP,M10

4шт.

8

82027464

TOP COVER

1шт.

9

84187813

SCREW,Tap, Torx Pan Hd, M5.5 x 1.8 x 16mm

4шт.

10

14496507

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

3шт.

11

84187826

FLANGE BOLT,Torx Rnd Hd, M8 x 20mm, Cl 8.8, Full Thd

3шт.

12

83903071

NUT,Hex, Thin, M4

1шт.

13

82872313

COAT HOOK

1шт.

14

82880745

SCREW,Phillips Drive, Pan HD, M4 x 16mm, Cl 4.8

1шт.

15

82935771

WASHER,5.6mm ID x 12.7mm OD x 1.25mm Thk

1шт.

16

83904461

RETAINER

1шт.

17

82031622

SOFT TRIM

1шт.
