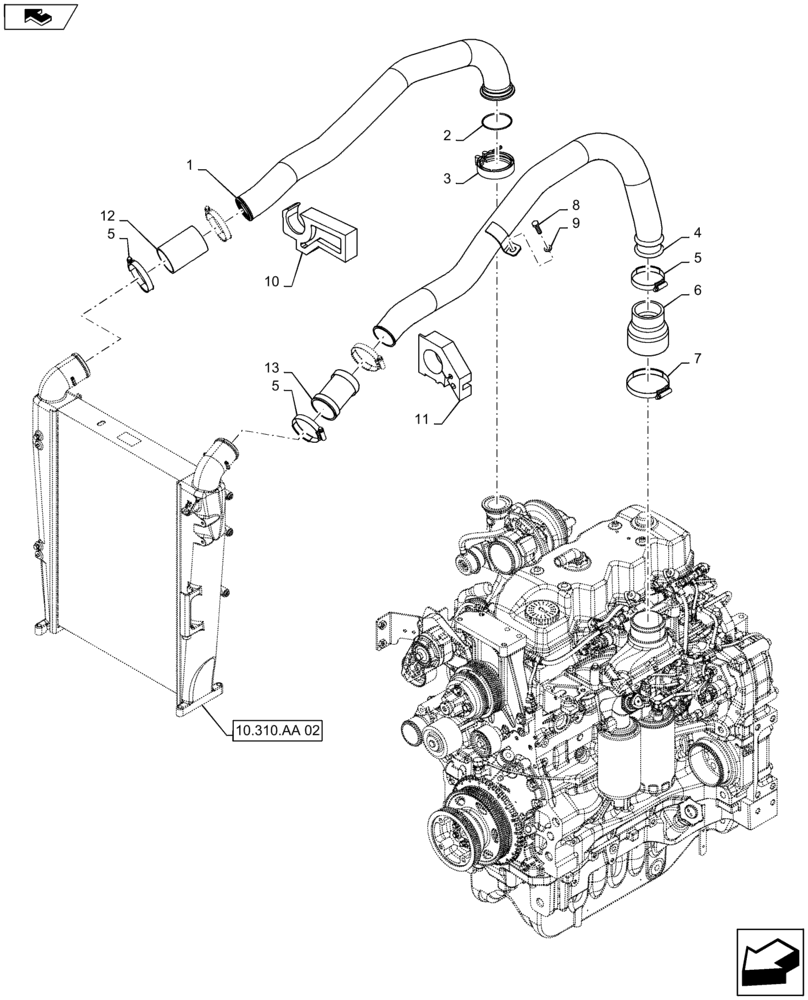

Запчасти Case IH MAXXUM 140 (10.310.AD[02]) - AIR INTAKE LINE (10) - ENGINE

1

87689037

HYD TUBE,59 mm OD x 791, 112 mm L

1шт.

2

14460081

SEALING RING,-142, Cl 7, 2.362" ID x .103" Thk

1шт.

3

87524288

CLAMP,77mm

1шт.

4

84201628

TUBE

1шт.

5

82036351

HOSE CLAMP,50 - 70mm X 14.5mm

5шт.

6

82036504

INTAKE AIR HOSE,57.10 mm ID, 76.00 mm ID x 90.00 mm, SAE J20R4 CLASS C

1шт.

7

82036354

HOSE CLAMP,70mm - 90mm

1шт.

8

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

9

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

10

87312778

SEAL

1шт.

11

84485712

SEAL

1шт.

12

82036503

HOSE,57.10 mm ID x 90.00 mm

1шт.

13

87695004

HOSE,57.10 mm ID, SAE J20 R4

1шт.
