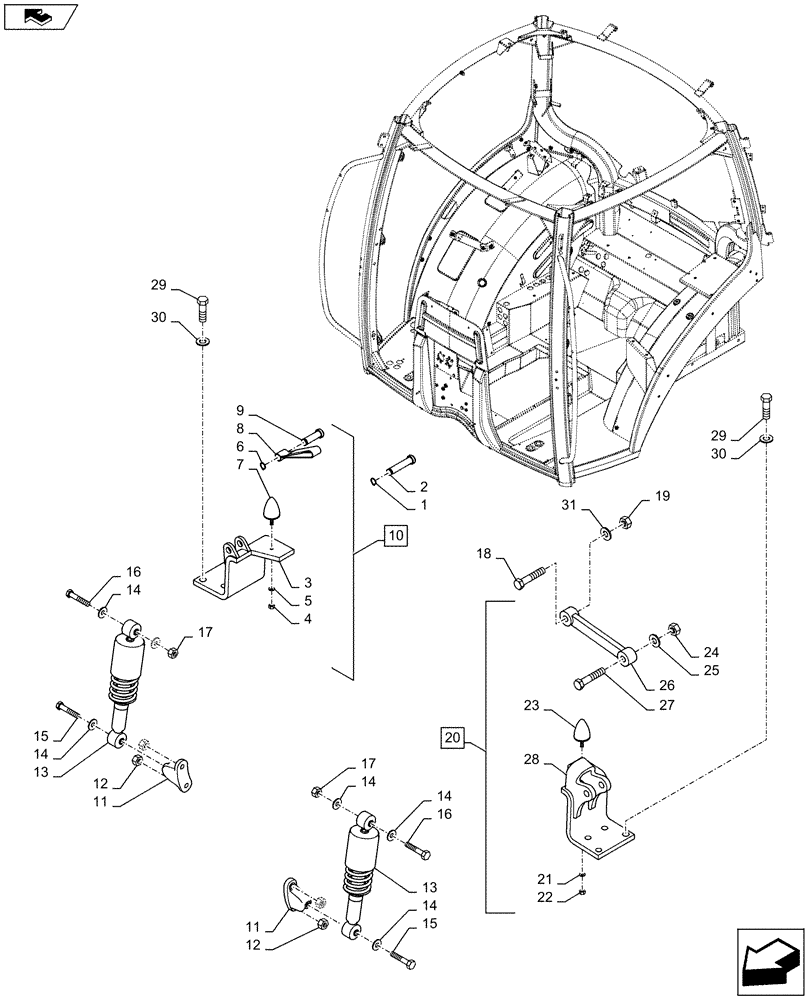

Запчасти Case IH MAXXUM 140 (90.150.BI[03]) - VAR - 330658, 331658, 333679 + STD* - CAB SUPPORT WITH SUSPENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

11066871

CIRCLIP,M20

1шт.

2

87543582

PIN,20mm OD x 104mm L

1шт.

3

NSS

NOT SOLD SEPARAT

Support, Incl in 10

1шт.

4

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

1шт.

5

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

6

11066871

CIRCLIP,M20

1шт.

7

44995061

RUBBER BUMPER

1шт.

8

82018969

STRAP

1шт.

9

87693969

PIN

1шт.

10

87693970

SUPPORT

RH, Incl 3 - 9

1шт.

11

87301705

BRACKET

2шт.

12

12164024

NUT,Hex, M14 x 1.5mm Pitch, Cl 10, DAC

4шт.

13

87301789

SHOCK ABSORBER

2шт.

14

14496821

WASHER,15mm ID x 28mm OD x 2.5mm Thk

6шт.

15

11117231

BOLT,Hex, M14 x 2 x 100, Cl 10.9

2шт.

16

11117021

BOLT,Hex, M14 x 90, 8.8

2шт.

17

12577311

LOCK NUT,Prevailing Torque, M14 x 2.0 x 16.6mm, Cl8, ZND

2шт.

18

11126121

BOLT,Hex, M20 x 120, 8.8

1шт.

19

82020635

NUT,Prevailing Torque, M20 x 2.5 x 20mm, Cl8

1шт.

20

87302154

SUPPORT

LH, Incl 21 - 28

1шт.

21

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

22

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

1шт.

23

44995061

RUBBER BUMPER

1шт.

24

82020635

NUT,Prevailing Torque, M20 x 2.5 x 20mm, Cl8

1шт.

25

14497101

WASHER,M20 x 37 x 3

1шт.

26

87301561

TIE-ROD

1шт.

27

11125921

BOLT,Hex, M20 x 110, 8.8

1шт.

28

NSS

NOT SOLD SEPARAT

Support, Incl in 20

1шт.

29

15239624

BOLT,Hex, M18 x 1.5 x 65mm, Cl 8.8

8шт.

30

10520324

WASHER,18.4mm ID x 32mm OD x 4mm Thk

8шт.

31

86511327

WASHER,21mm ID x 37mm OD x 3mm Thk

1шт.
