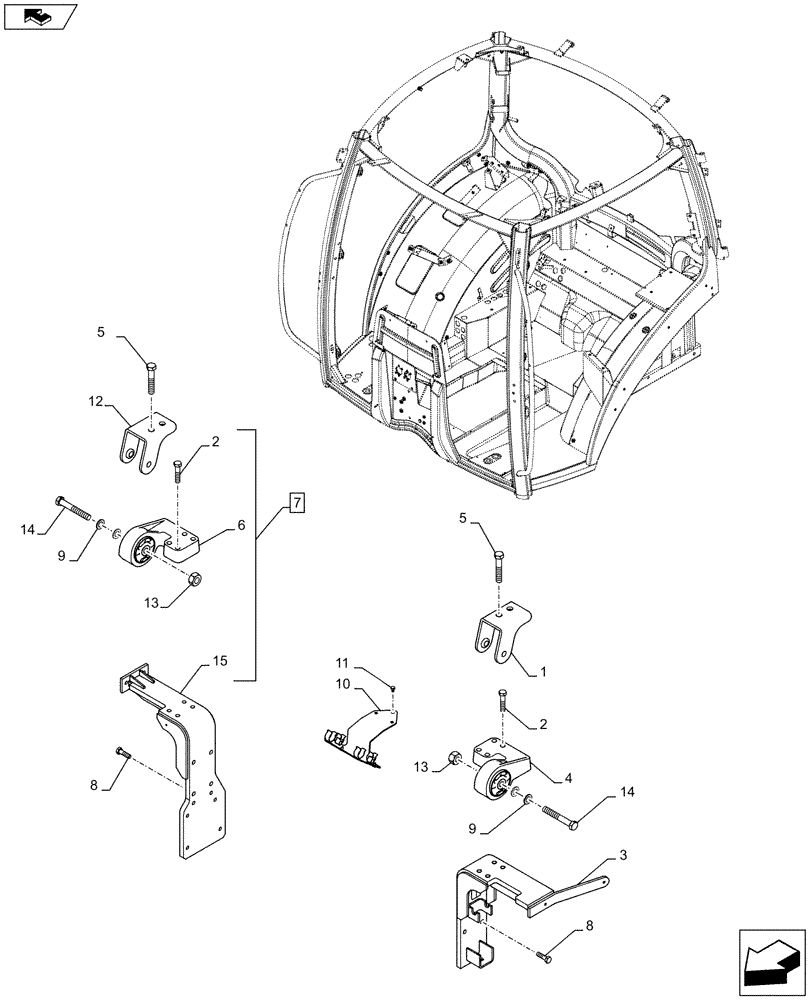

Запчасти Case IH MAXXUM 140 (90.150.BI[02]) - VAR - 330658, 331658, 333679 + STD* - CAB SUPPORT WITH SUSPENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

82030756

CLEVIS

1шт.

2

11119421

BOLT,Hex, M16 x 2 x 75mm, Cl 8.8

8шт.

3

84475282

SUPPORT

LH

1шт.

4

82032678

SUPPORT

1шт.

5

11125921

BOLT,Hex, M20 x 110, 8.8

4шт.

6

82032679

SUPPORT

1шт.

7

84583910

SUPPORT

RH, Incl 2,16,15

1шт.

8

15860121

BOLT,Hex, M14 x 1.5 x 50mm, Cl 8.8

8шт.

9

86511327

WASHER,21mm ID x 37mm OD x 3mm Thk

4шт.

10

84478573

PLATE

1шт.

11

16043180

BOLT,Hex, M8 x 14, Full Thd, Stainless

3шт.

12

82030758

U-BOLT

1шт.

13

82020635

NUT,Prevailing Torque, M20 x 2.5 x 20mm, Cl8

2шт.

14

84025013

BOLT,Hex, M20 x 140mm, Cl 10.9

2шт.

15

NSS

NOT SOLD SEPARAT

Support, Incl in 7

1шт.
