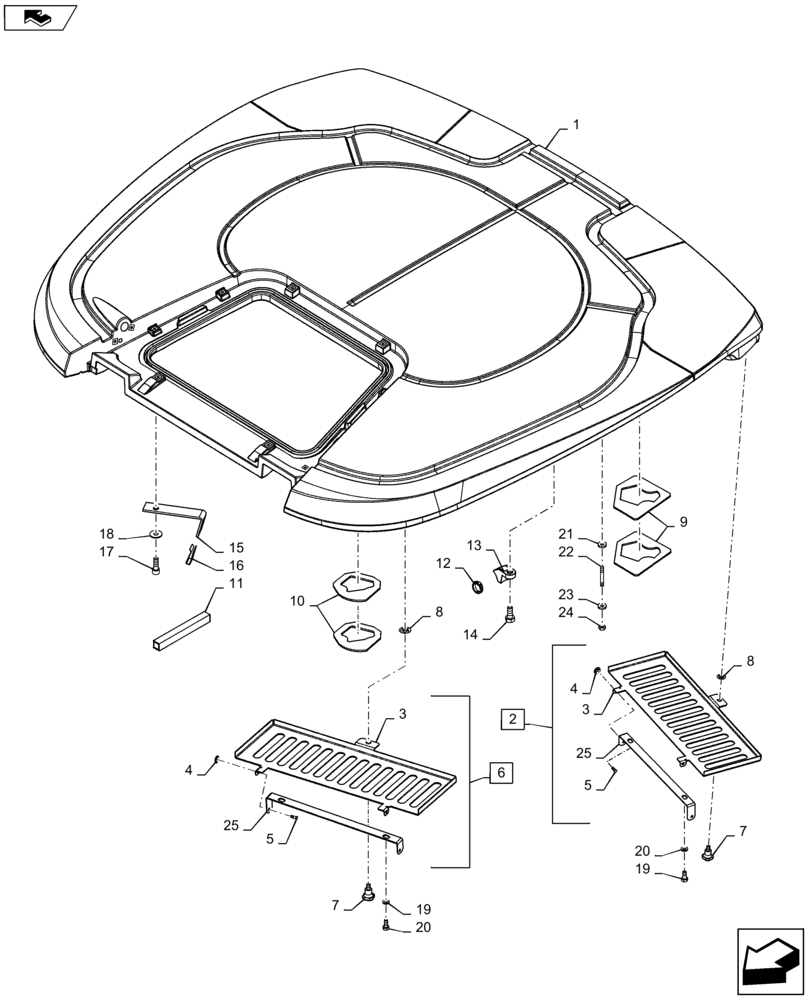

Запчасти Case IH MAXXUM 140 (90.150.BG[03]) - NAR & ISO ROOF WITH LOW PROFILE - ROOF AND RELEVANT PARTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84425447

ROOF

1шт.

2

87341182

FILTER COVER

RH, Incl 3 - 5, 25

1шт.

3

87326775

FILTER COVER

2шт.

4

14227876

CLIP,M4, Push

4шт.

5

10033111

CLEVIS PIN,M4 x 12

4шт.

6

87341180

FILTER COVER

LH, Incl 3 - 5, 25

1шт.

7

87337041

KNOB,M6 x 10mm

2шт.

8

87359165

RETAINER CUP,M6

2шт.

9

82038034

INSULATION

LH

2шт.

9

82038033

GASKET,10mm Thk

RH

2шт.

10

82025910

GASKET,10 Thk, Black

LH

2шт.

10

82023417

GASKET,10mm Thk, Black

RH

2шт.

11

87367802

SEALING STRIP

1шт.

12

82028498

CABLE TIE

13шт.

13

81864285

CLIP,M6, Black

13шт.

14

15903804

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 13mm

18шт.

15

87327068

BRACKET

1шт.

16

81872135

NUT,Retaining, M4.20

1шт.

17

14304627

HEX SOC SCREW,M5 x 14mm, Cl 8.8, Full Thd

1шт.

18

12638107

SPACER,5.2mm ID x 14mm OD x 1mm Thk

1шт.

19

10519404

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

4шт.

20

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

4шт.

21

10571374

LOCK WASHER

2шт.

22

13517021

STUD,M8 x 12mm x 25mm, Cl 8.8

2шт.

23

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

24

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

25

NSS

NOT SOLD SEPARAT

Bracket, Incl in 2 and 6

2шт.
