Запчасти Case IH MAXXUM 140 (90.150.AC[01]) - VAR - 330283, 330007, 335007, 743726 + STD - CAB FRAME & FLOOR, PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS

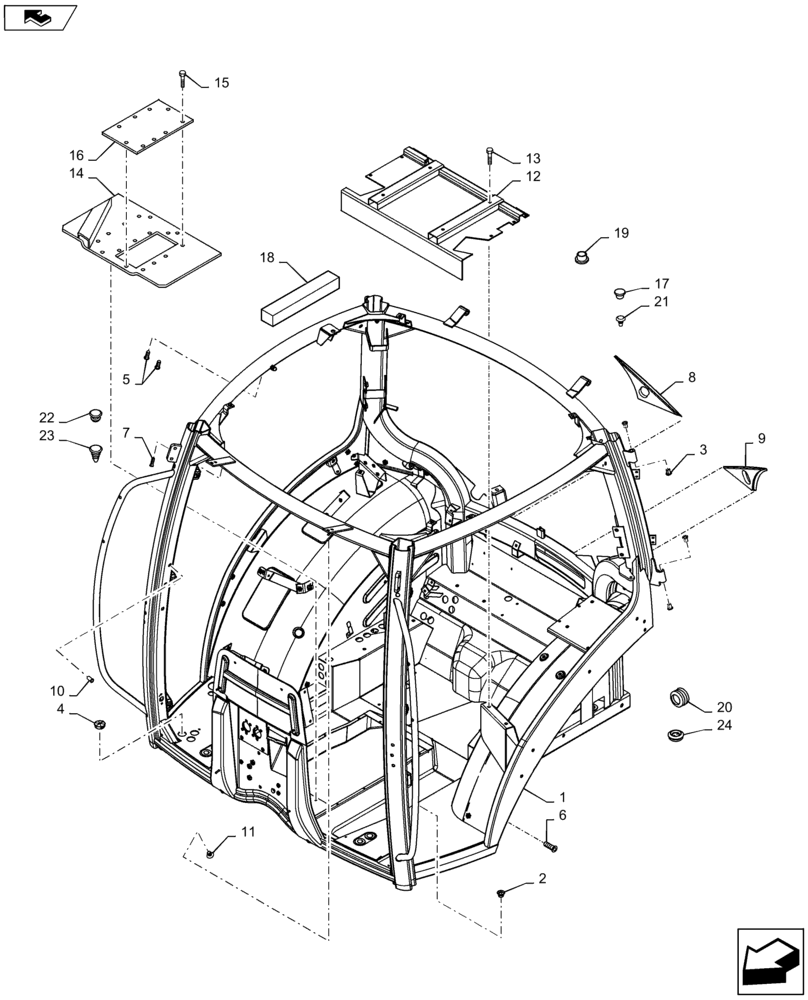

Схема запчастей Case IH MAXXUM 140 - (90.150.AC[01]) - VAR - 330283, 330007, 335007, 743726 + STD - CAB FRAME & FLOOR, PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS
23
16
1
21
14
4
18
3
13
10
12
5
22
19
2
6
20
9
11
24
7
15
home
17
8

Артикул

Название

Примечание

Количество

1

87387044

CAB BODY

Frame

1шт.

STD Equipment

1шт.

2

82003283

PLUG,10.5mm OD

8шт.

STD Equipment

1шт.

3

82027697

BUSHING,9.5mm ID x 18mm OD x 17mm L

8шт.

STD Equipment

1шт.

4

82031549

BLANK-OFF PLUG,35mm OD, Black

3шт.

STD Equipment

1шт.

5

82024992

RIVET,Flng, 11mm OD x 19.5mm L

15шт.

STD Equipment

1шт.

6

82024991

NUT,M6

1шт.

STD Equipment

1шт.

7

82024990

RIVET,Flng, 7mm OD x 16mm L

2шт.

STD Equipment

1шт.

8

82036801

PLUG

RH

1шт.

STD Equipment

1шт.

9

82036800

PLUG

LH

1шт.

STD Equipment

1шт.

10

84214045

RIVET,Flat, M10 OD x 25.75mm L

5шт.

STD Equipment

1шт.

11

87716701

PLUG,Blanking, Snap, 6.40mm Dia

1шт.

STD Equipment

1шт.

12

82033893

PLATE

1шт.

STD Equipment

1шт.

13

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

6шт.

STD Equipment

1шт.

14

87686394

CAB FLOOR

1шт.

STD Equipment or VAR 330283

1шт.

15

83929012

CAPTIVE WASHER SCREW,HWH, M6.3 x 1.8 x 20mm

17шт.

STD Equipment or VAR 330283

1шт.

16

87686522

COVER ASSY

1шт.

STD Equipment or VAR 330283

1шт.

17

87341141

PLUG

3шт.

STD Equipment

1шт.

17

84234592

PLUG,M20.7 x 10.5mm

2шт.

STD Equipment

1шт.

17

81865132

PLUG,11.20mm

2шт.

STD Equipment

1шт.

18

82000180

SEALING STRIP

1шт.

STD Equipment or VAR 330283

1шт.

19

87681201

PLUG,M16 x 11.70mm

4шт.

STD Equipment

1шт.

Only for Models Made in Austria

1шт.

20

81862738

PLUG,M38 x 28 x 5mm

Body Floor Blank

4шт.

STD Equipment

1шт.

Only for Models Made in Austria

1шт.

21

82037658

RIVET,9mm OD x 4.5mm L

2шт.

NAR Configuration, VAR 330007, 335007, 743726

1шт.

Only for Models Made in UK

1шт.

21

82037720

RIVET,Plastic Snap, M3 x 4.50mm

2шт.

NAR Configuration, VAR 330007, 335007, 743726

1шт.

Only for Models Made in UK

1шт.

22

81865569

PLUG,Grommet automatic pick up

APUH Cable

1шт.

STD Equipment

1шт.

23

87716701

PLUG,Blanking, Snap, 6.40mm Dia

2шт.

STD Equipment

1шт.

24

81862738

PLUG,M38 x 28 x 5mm

1шт.

STD Equipment

1шт.

Выбрано товаров: 58
