(90.124.AN[02]) - VAR - 331709 - DELUXE SEAT WITH AIR SUSPENSION, BELT AND SWITCH - BREAKDOWN

Запчасти Case IH MAXXUM 140 (90.124.AN[02]) - VAR - 331709 - DELUXE SEAT WITH AIR SUSPENSION, BELT AND SWITCH - BREAKDOWN (90) - PLATFORM, CAB, BODYWORK AND DECALS

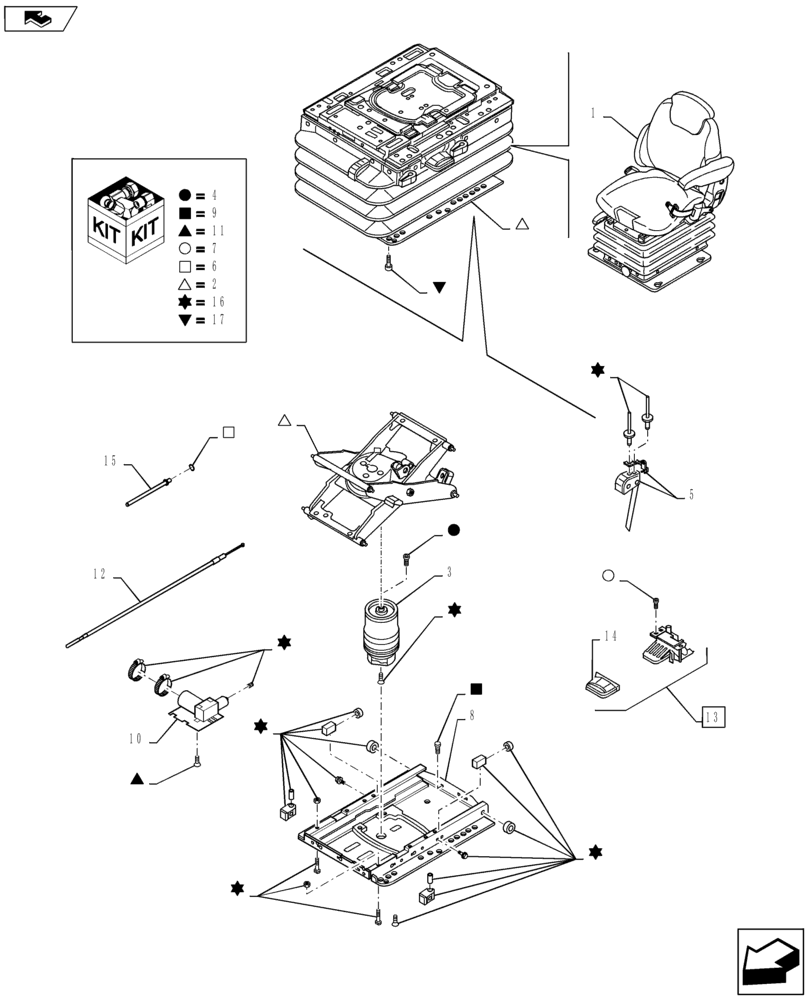

Схема запчастей Case IH MAXXUM 140 - (90.124.AN[02]) - VAR - 331709 - DELUXE SEAT WITH AIR SUSPENSION, BELT AND SWITCH - BREAKDOWN (90) - PLATFORM, CAB, BODYWORK AND DECALS
9
9
17
1
4
5
7
7
13
4
16
16
6
11
11
17
11
2
16
16
7
17
6
2
10
16
8
9
2
15
2
16
4
6
14
home
12
16
16
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84122192

DRIVER SEAT

ASSY, Incl 2 - 17

1шт.

2

NSS

NOT SOLD SEPARAT

Suspension, ASSY, Incl in 1, Incl 17

1шт.

3

84190972

SHOCK ABSORBER

Incl 4, 16

1шт.

4

84191012

REPAIR KIT

1шт.

5

84190962

KIT

Incl 16

1шт.

6

84191016

REPAIR KIT

1шт.

7

84191017

REPAIR KIT

1шт.

8

84190976

PLATE

Incl 9, 16

1шт.

9

84191014

REPAIR KIT

1шт.

10

84190980

AIR COMPRESSOR

Incl 11, 16

1шт.

11

84191008

REPAIR KIT

1шт.

12

84190997

BOWDEN CONTROL

1шт.

13

345107A1

LEVER

Incl 14

1шт.

14

84191000

HANDLE

1шт.

15

84190991

TUBE

Incl 6

1шт.

16

84190975

REPAIR KIT

1шт.

17

84191020

REPAIR KIT

1шт.
